基于LabVIEW的数据采集系统的方案设计书与实现VIP免费

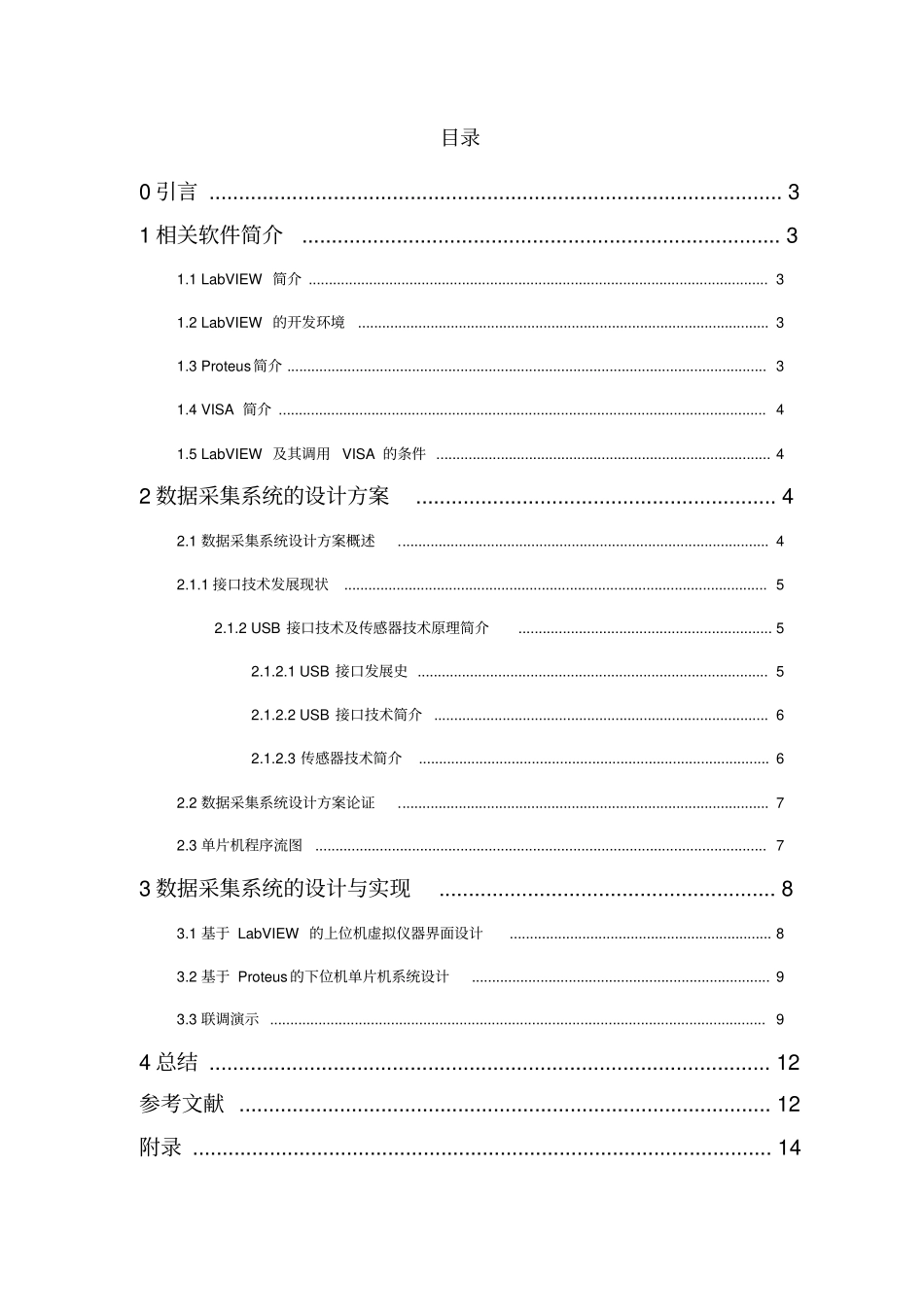

李延（陕理工物理系电信专业072 班，陕西 汉中 723001）指导教师：卢进军 [摘要 ]：利用图形化编程工具LabVIEW 和EDA 工具 Proteus设计了一个温度数据采集仿真系统。该系统中上位机与下位机通过虚拟串口进行通信，下位机将采集到的现场数据传送到上位机后，上位机即可显示并判断是否超限报警。设计表明，基于该两种软件建立一个仿真系统可以有效验证工程设计的正确性，从而缩短工程开发时间，降低工程开发成本。[ 关键词 ]：LabVIEW ；Proteus；单片机；数据采集；仿真The Design and Realization of Data AcquisitionSystem Based on LabVIEWLiyan（Grade07,Class02,MajorElectronic Information Science and Technology，PhysicsDept.，Shaanxi University of Technology ，Hanzhong 723001 Shaanxi）Tutor:LuJinjunAbstract：Use of LabVIEW graphical programming tools and EDA tools Proteus designed a data acquisition simulation system. The system of upper computer and lower computer through a virtual serial communication, the next crew will be collected on-site data to the host computer, the host computer to display and to determine whether the limit alarm. Design showed that the two software based on a simulation system can verify the correctness of the project design to reduce project development time, reduce project development costs.Key words ：LabVIEW 。 Proteus。 MCU 。 data collection 。 Simulation目录0 引言 ................................................................................................. 31 相关软件简介 ................................................................................. 31.1 LabVIEW 简介 .................................................................................................................. 31.2 LabVIEW 的开发环境 ...................................................................................................... 31.3 Proteus 简介 ...............................................................................................................
