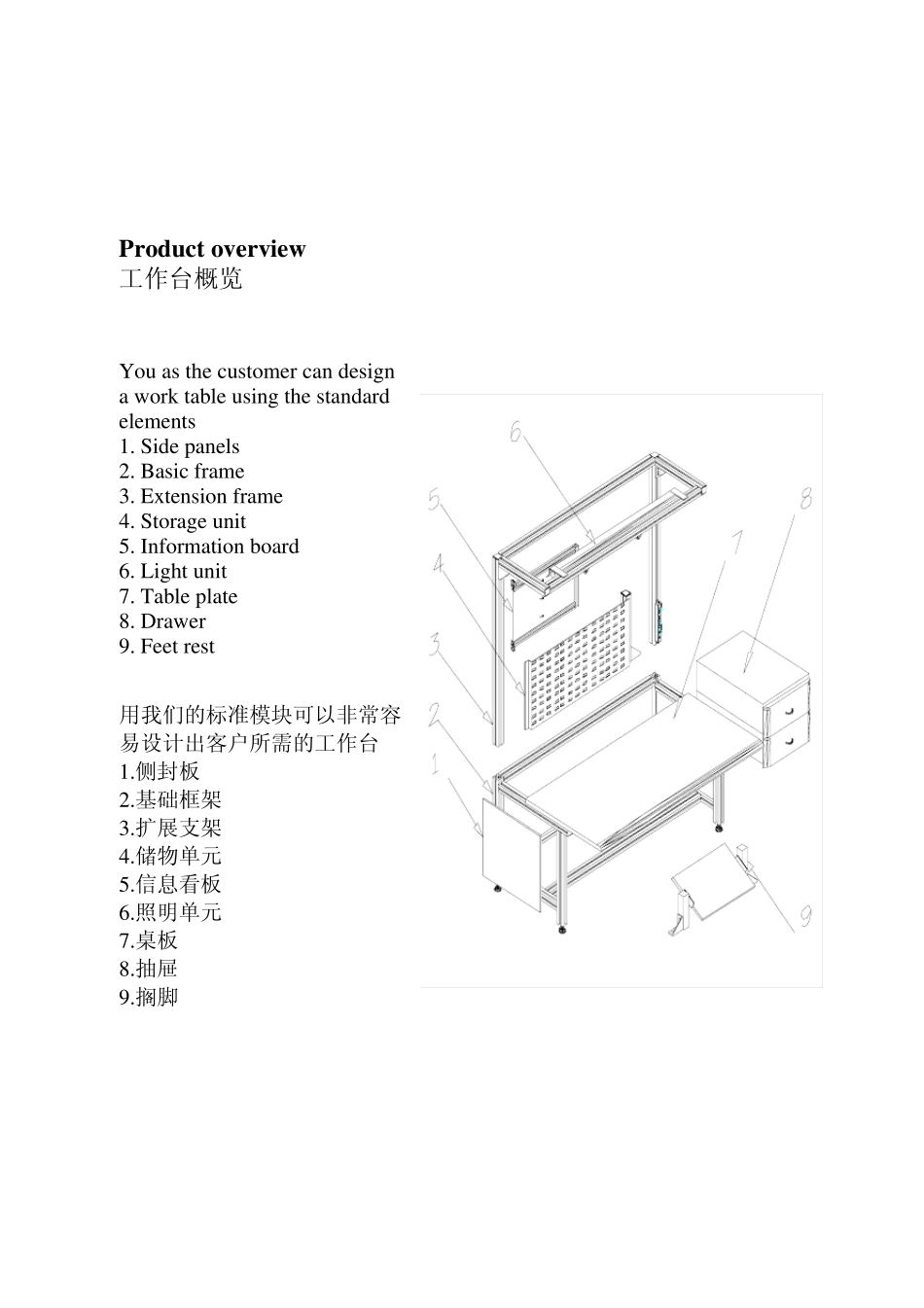

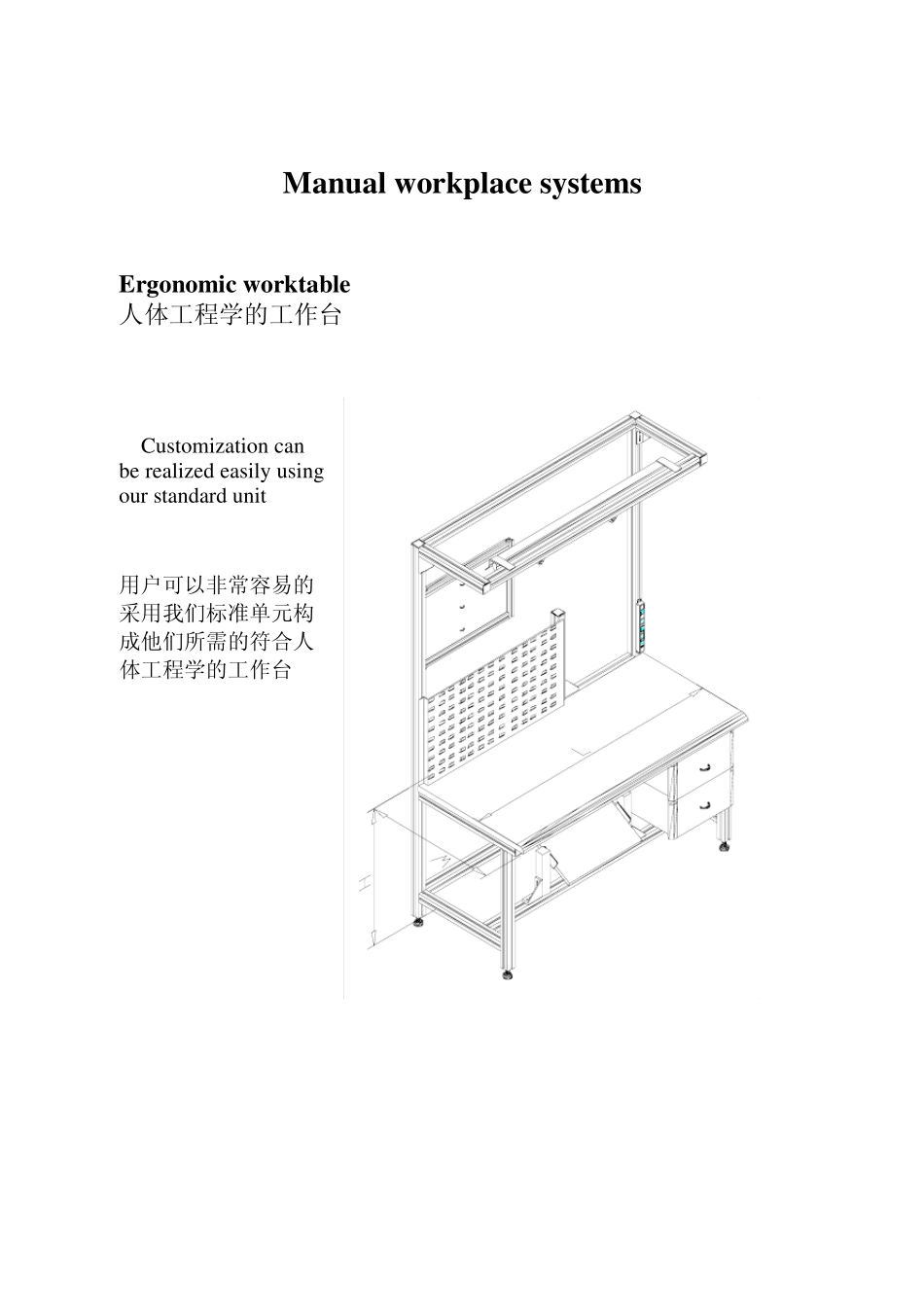

Manual workplace systems Ergonomic worktable 人体工程学的工作台 Customization can be realized easily using our standard unit 用户可以非常容易的采用我们标准单元构成他们所需的符合人体工程学的工作台 Product overview 工作台概览 You as the customer can design a work table using the standard elements 1. Side panels 2. Basic frame 3. Extension frame 4. Storage unit 5. Information board 6. Light unit 7. Table plate 8. Drawer 9. Feet rest 用我们的标准模块可以非常容易设计出客户所需的工作台 1.侧封板 2.基础框架 3.扩展支架 4.储物单元 5.信息看板 6.照明单元 7.桌板 8.抽屉 9.搁脚 1. Side panel 侧 封 板 The side panel can be used to make the worktable fine and tidy; as well it can give certain protection to a seated worker. According to customers need the material of the panel may either be a normal fireproof plate, or a stainless steel covered plate, a thicker pure stainless steel plate or a surface painted normal plate. The thicker plates and also the painted plate can be connected directly by the hammerhead nut; it not only makes the worktable fine, also will make it more stable. There are sure some other ways for connecting the parts, except the mentioned one. 为了美观整洁，工作台通常可以加侧挡板。板的材料根据客户需求可以是普通防火板、不锈钢贴面的防火板、比较厚的不锈钢板或烤漆铁板。比较厚的不锈钢板或烤漆铁板可以直接用螺栓联接，除了使工作台美观整洁外还可以起到加强工作台的作用。除直接用螺栓联接以外还可以有以下几种方式固定。 Insert directly The plate will be placed inside the profile groove directly, after this our Insert profile (rubber profile) will be used to fix the plate. This connecting way can be used in cleaning rooms. The disadvantage is that it can’t be disassembled without damaging the Insert profile 直接嵌入式 直接将板嵌入型材槽内，然后用嵌条(橡...
