瓶装线之电子数粒机FAT工厂现场验收测试文件资料

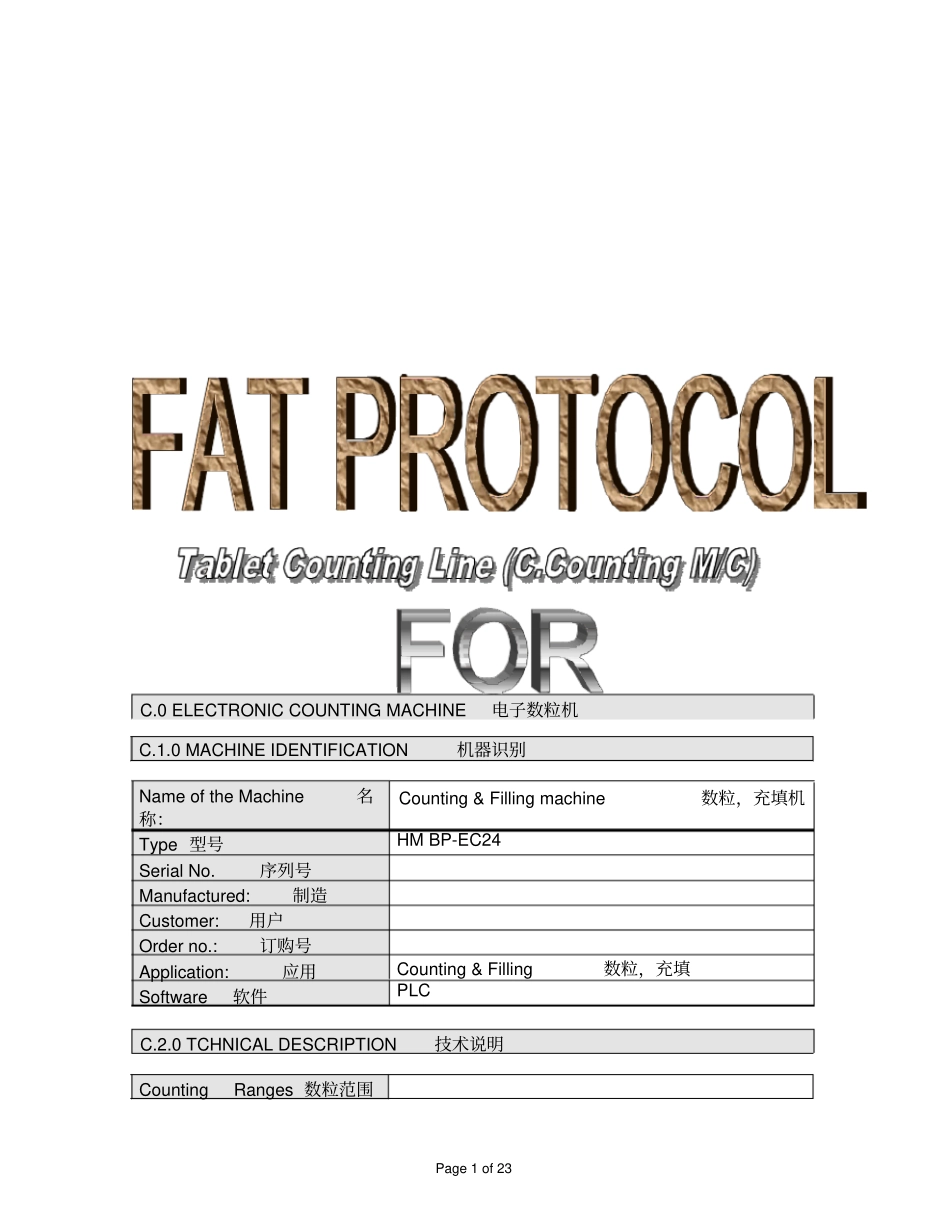

Page 1 of 23 C.1.0 MACHINE IDENTIFICATION 机器识别Counting Ranges 数粒范围Name of the Machine 名称：Type 型号Serial No. 序列号Manufactured: 制造Customer: 用户Order no.: 订购号Application: 应用Software 软件Counting & Filling machine 数粒，充填机HM BP-EC24 Counting & Filling 数粒，充填PLC C.2.0 TCHNICAL DESCRIPTION 技术说明C.0 ELECTRONIC COUNTING MACHINE 电子数粒机Page 2 of 23 C.3.0 SERVICE POINTS 服务点C.4.0 Emergency Stop Button safety Check 急停开关按钮安全检查Output rate 产量Machine Dimension 机器尺寸Hopper Capacity (lt.) 漏斗容量（ L）Power Source & Cons. 电源&条件Air Pr. & Consumption 空气压力 &消耗Service Points are present and have clear and readable tags. 服务点全显示并有清楚和可读的标签Service Point 服务点Clear & Readable Tag available (Y/N) 清楚和可读的标签（有 / 无）Described in Manual (Y/N) 说明书中描述（有 / 无）Power Supply 电源Main Air supply 主气源Control Desk 控制台COMMENTS: 评注------------------------------------------------------------- ------------------------------------------------------------- ------------------------------------------------------------- -------------------------- Objective:目 标To confirm the correct operation of the emergency stop button. 确认急停开关按钮的正确操作Methodology:方 法Page 3 of 23 Apply power to the machine and connect all necessary fittings. No 否!Acceptance Criteria Met 接受标准满足 : ! YES 是C.5.0 Door safety Guard Check: 门安全防护检查Start the machine and then push the emergency stop button fitted to the machine on control desk. 将机器接上电源，接上所有必须的装置，启动机器然后按下在控制台上安装在机器上的急停开关按钮Acceptance Criteria: 接受标准When the emergency stop button is operated it must cease operation but display is On. The system can only be restarted manually by releasing the emergency stop button by pre...
