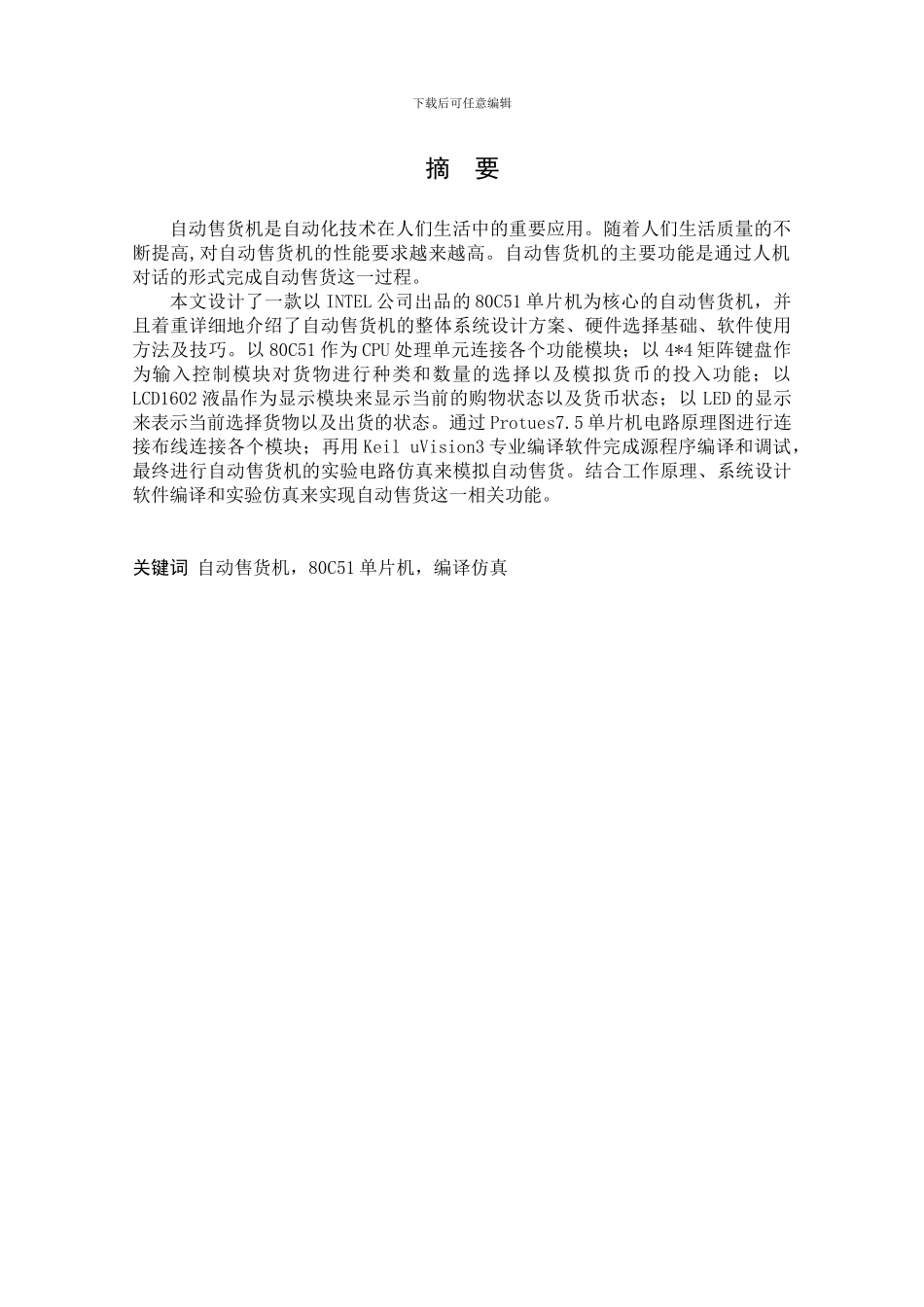

下载后可任意编辑摘 要自动售货机是自动化技术在人们生活中的重要应用。随着人们生活质量的不断提高,对自动售货机的性能要求越来越高。自动售货机的主要功能是通过人机对话的形式完成自动售货这一过程。本文设计了一款以 INTEL 公司出品的 80C51 单片机为核心的自动售货机，并且着重详细地介绍了自动售货机的整体系统设计方案、硬件选择基础、软件使用方法及技巧。以 80C51 作为 CPU 处理单元连接各个功能模块；以 4*4 矩阵键盘作为输入控制模块对货物进行种类和数量的选择以及模拟货币的投入功能；以LCD1602 液晶作为显示模块来显示当前的购物状态以及货币状态；以 LED 的显示来表示当前选择货物以及出货的状态。通过 Protues7.5 单片机电路原理图进行连接布线连接各个模块；再用 Keil uVision3 专业编译软件完成源程序编译和调试，最终进行自动售货机的实验电路仿真来模拟自动售货。结合工作原理、系统设计软件编译和实验仿真来实现自动售货这一相关功能。关键词 自动售货机，80C51 单片机，编译仿真下载后可任意编辑ABSTRACTThe automatically vending machine is provided the the the important applications of the automation technology in people's lives. With the continuous improvement of people's quality of life, the increasingly high performance requirements of vending machines. Vending machines The main function of the form of man-machine dialogue vending this process.The designed a produced by Intel 80C51 microcontroller as the core vending machines, and emphasizes the detailed description of the overall system design of the vending machines, hardware options, software and the use of methods and techniques. As 80C51 CPU processing unit connected to the various functional modules; 4 * 4 matrix keyboard as an input control module of goods, the choice of the type and number of input and analog currency; LCD1602 LCD as the display module to display the current state of shopping as well as currency state; LED display indicates the current selection of goods and shipment status...
