六流连铸中间包流场的数值模拟

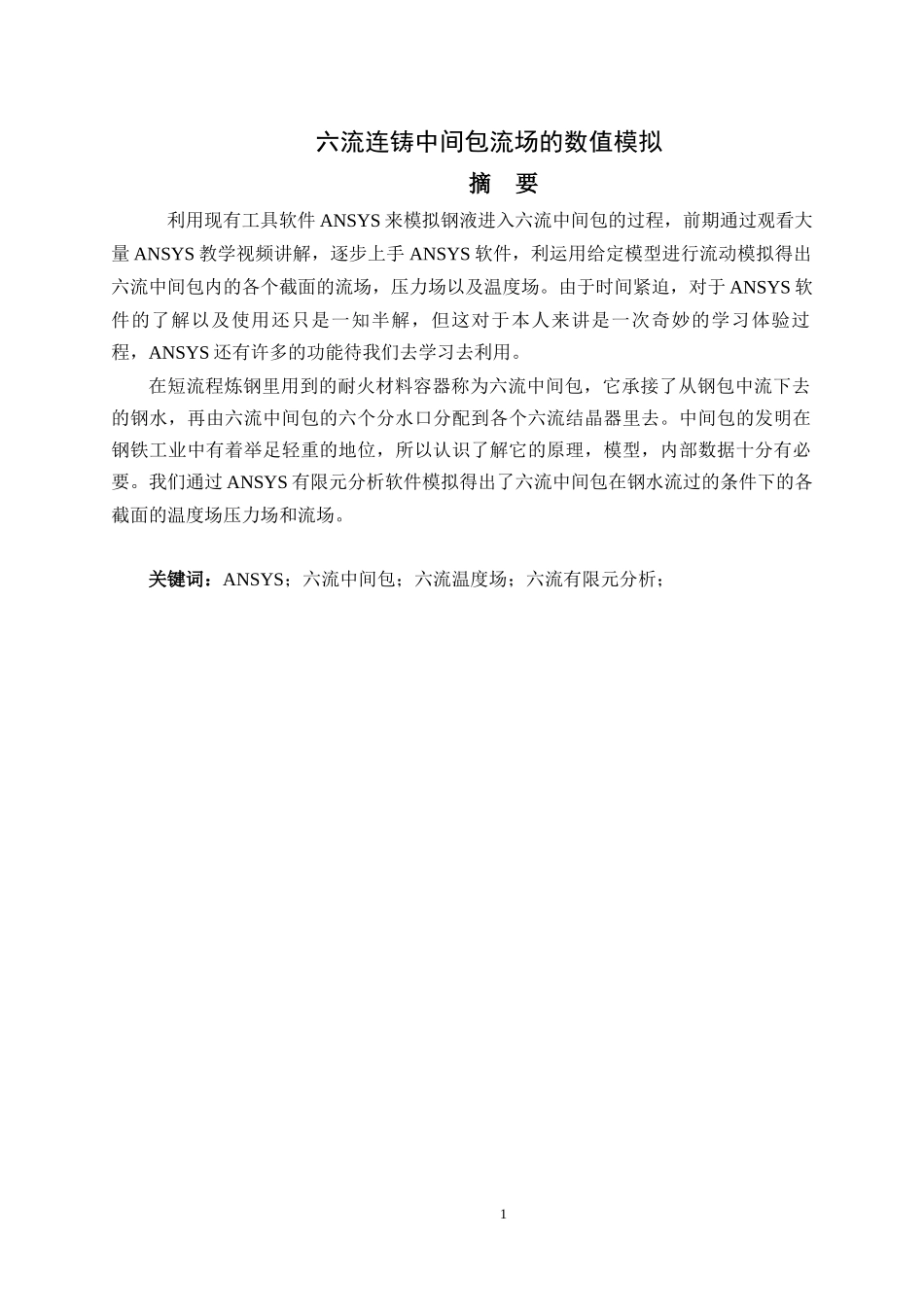

六流连铸中间包流场的数值模拟_第1页
1/39

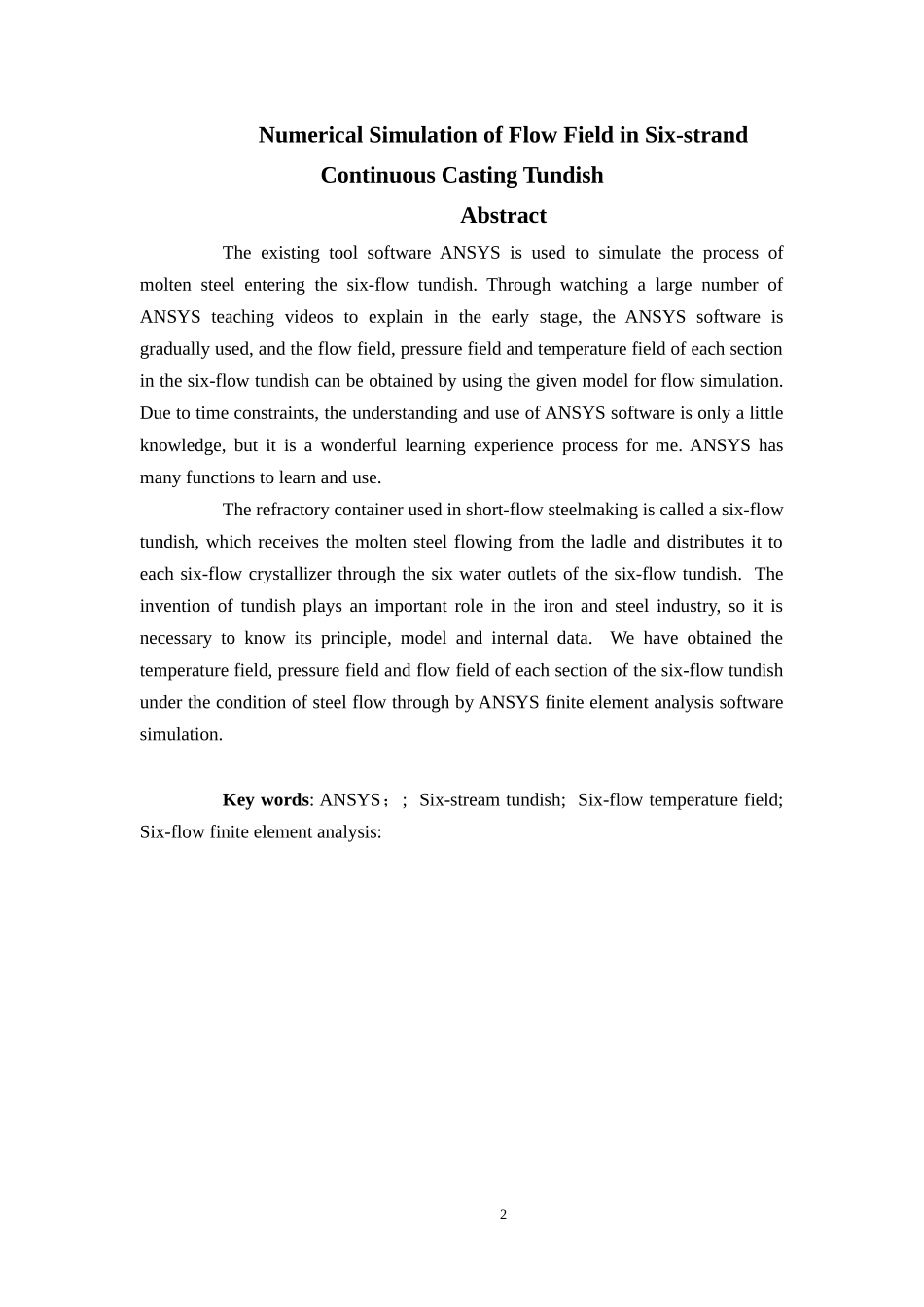

六流连铸中间包流场的数值模拟_第2页
2/39

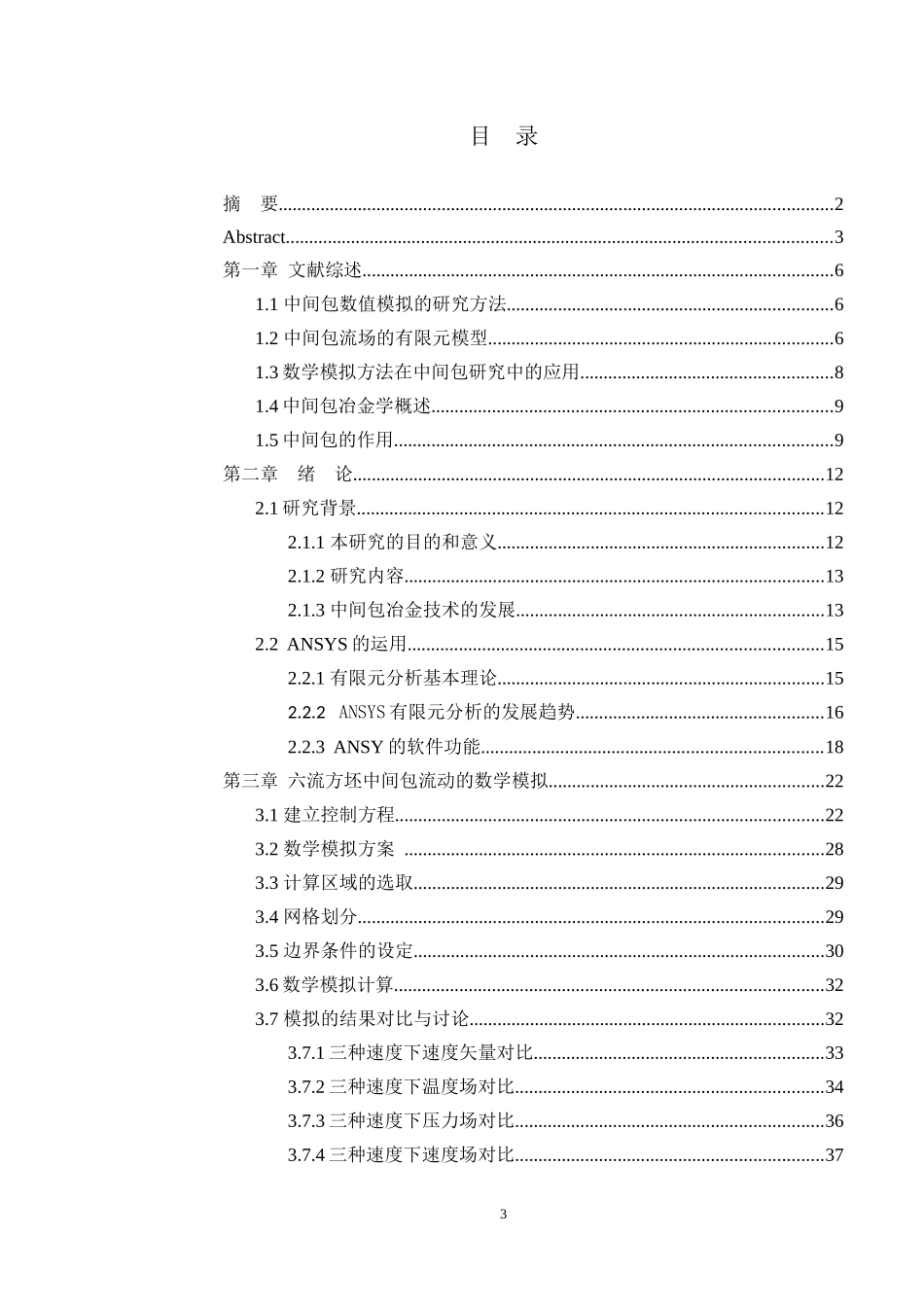

六流连铸中间包流场的数值模拟_第3页
3/39
六流连铸中间包流场的数值模拟摘 要利用现有工具软件 ANSYS 来模拟钢液进入六流中间包的过程,前期通过观看大量 ANSYS 教学视频讲解,逐步上手 ANSYS 软件,利运用给定模型进行流动模拟得出六流中间包内的各个截面的流场,压力场以及温度场。由于时间紧迫,对于 ANSYS 软件的了解以及使用还只是一知半解,但这对于本人来讲是一次奇妙的学习体验过程,ANSYS 还有许多的功能待我们去学习去利用。在短流程炼钢里用到的耐火材料容器称为六流中间包,它承接了从钢包中流下去的钢水,再由六流中间包的六个分水口分配到各个六流结晶器里去。中间包的发明在钢铁工业中有着举足轻重的地位,所以认识了解它的原理,模型,内部数据十分有必要。我们通过 ANSYS 有限元分析软件模拟得出了六流中间包在钢水流过的条件下的各截面的温度场压力场和流场。关键词:ANSYS;六流中间包;六流温度场;六流有限元分析;1Numerical Simulation of Flow Field in Six-strand Continuous Casting TundishAbstractThe existing tool software ANSYS is used to simulate the process of molten steel entering the six-flow tundish. Through watching a large number of ANSYS teaching videos to explain in the early stage, the ANSYS software is gradually used, and the flow field, pressure field and temperature field of each section in the six-flow tundish can be obtained by using the given model for flow simulation. Due to time constraints, the understanding and use of ANSYS software is only a little knowledge, but it is a wonderful learning experience process for me. ANSYS has many functions to learn and use.The refractory container used in short-flow steelmaking is called a six-flow tundish, which receives the molten steel flowing from the ladle and distributes it to each six-flow crystallizer through the six water outlets of the six-flow tundish. The invention of tundish plays an important role in the iron and steel industry, so it is necessary to know its principle, model and internal data. We ...
