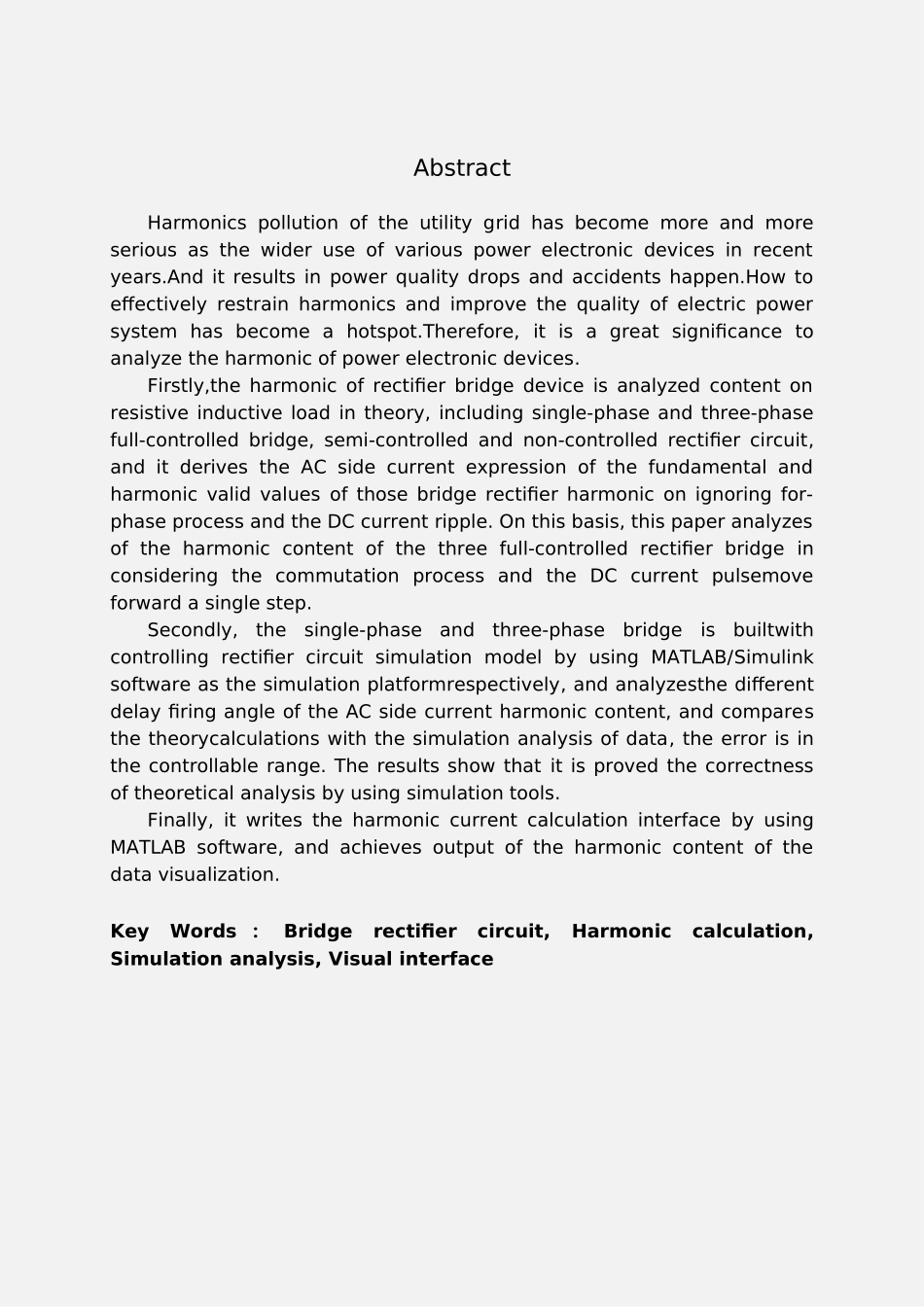

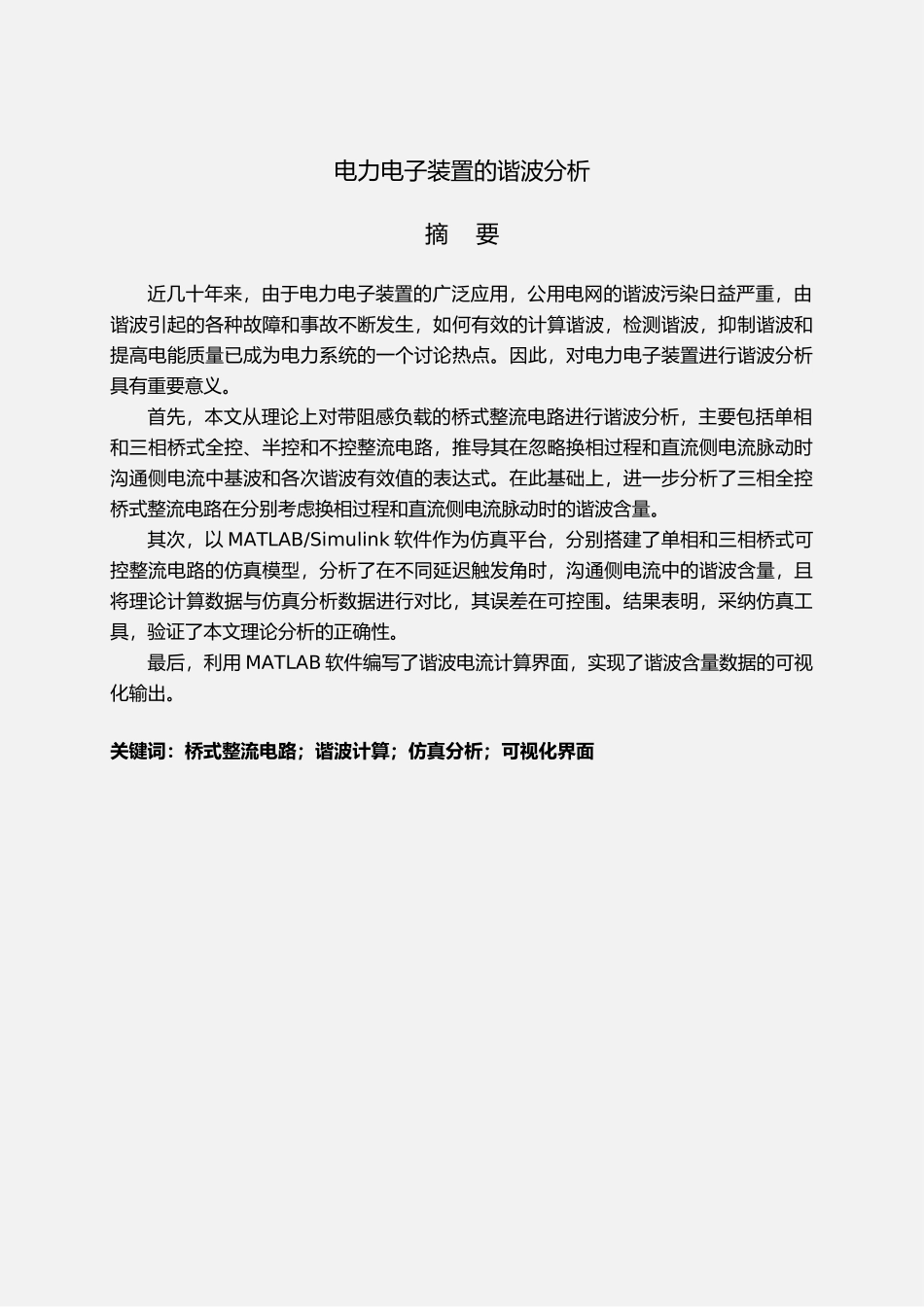

电力电子装置的谐波分析摘 要近几十年来，由于电力电子装置的广泛应用，公用电网的谐波污染日益严重，由谐波引起的各种故障和事故不断发生，如何有效的计算谐波，检测谐波，抑制谐波和提高电能质量已成为电力系统的一个讨论热点。因此，对电力电子装置进行谐波分析具有重要意义。首先，本文从理论上对带阻感负载的桥式整流电路进行谐波分析，主要包括单相和三相桥式全控、半控和不控整流电路，推导其在忽略换相过程和直流侧电流脉动时沟通侧电流中基波和各次谐波有效值的表达式。在此基础上，进一步分析了三相全控桥式整流电路在分别考虑换相过程和直流侧电流脉动时的谐波含量。其次，以 MATLAB/Simulink 软件作为仿真平台，分别搭建了单相和三相桥式可控整流电路的仿真模型，分析了在不同延迟触发角时，沟通侧电流中的谐波含量，且将理论计算数据与仿真分析数据进行对比，其误差在可控围。结果表明，采纳仿真工具，验证了本文理论分析的正确性。最后，利用 MATLAB 软件编写了谐波电流计算界面，实现了谐波含量数据的可视化输出。关键词：桥式整流电路；谐波计算；仿真分析；可视化界面AbstractHarmonics pollution of the utility grid has become more and more serious as the wider use of various power electronic devices in recent years.And it results in power quality drops and accidents happen.How to effectively restrain harmonics and improve the quality of electric power system has become a hotspot.Therefore, it is a great significance to analyze the harmonic of power electronic devices.Firstly,the harmonic of rectifier bridge device is analyzed content on resistive inductive load in theory, including single-phase and three-phase full-controlled bridge, semi-controlled and non-controlled rectifier circuit, and it derives the AC side current expression of the fundamental and harmonic valid values of those bridge rectifier harmonic on ignoring for-phase process and the DC current ripple. On this basis, this paper analyzes of the harmonic content of the three full-controlled rectifier bridge in considering the com...
