红外线人数计数器设计说明

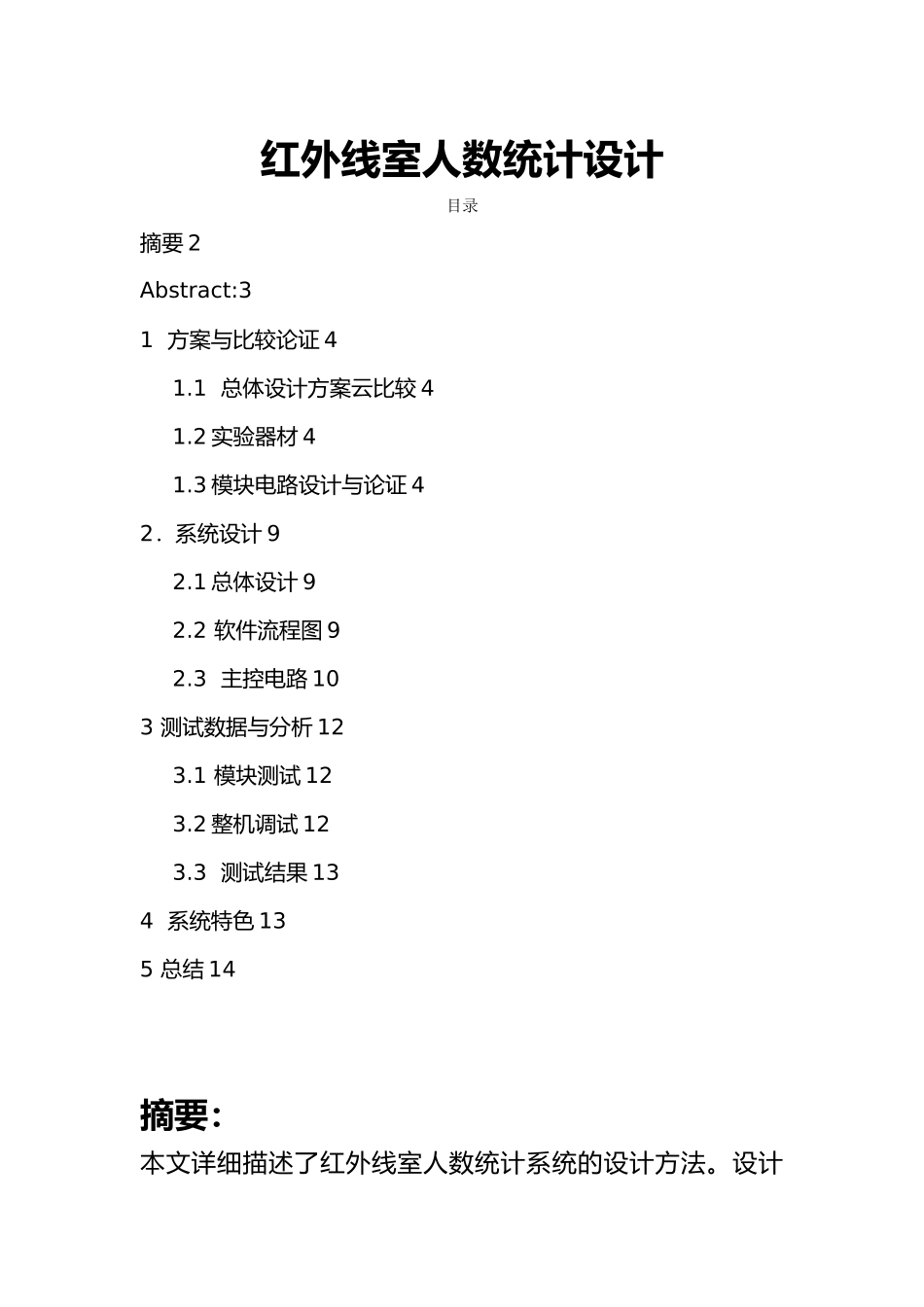

红外线人数计数器设计说明_第1页
1/15

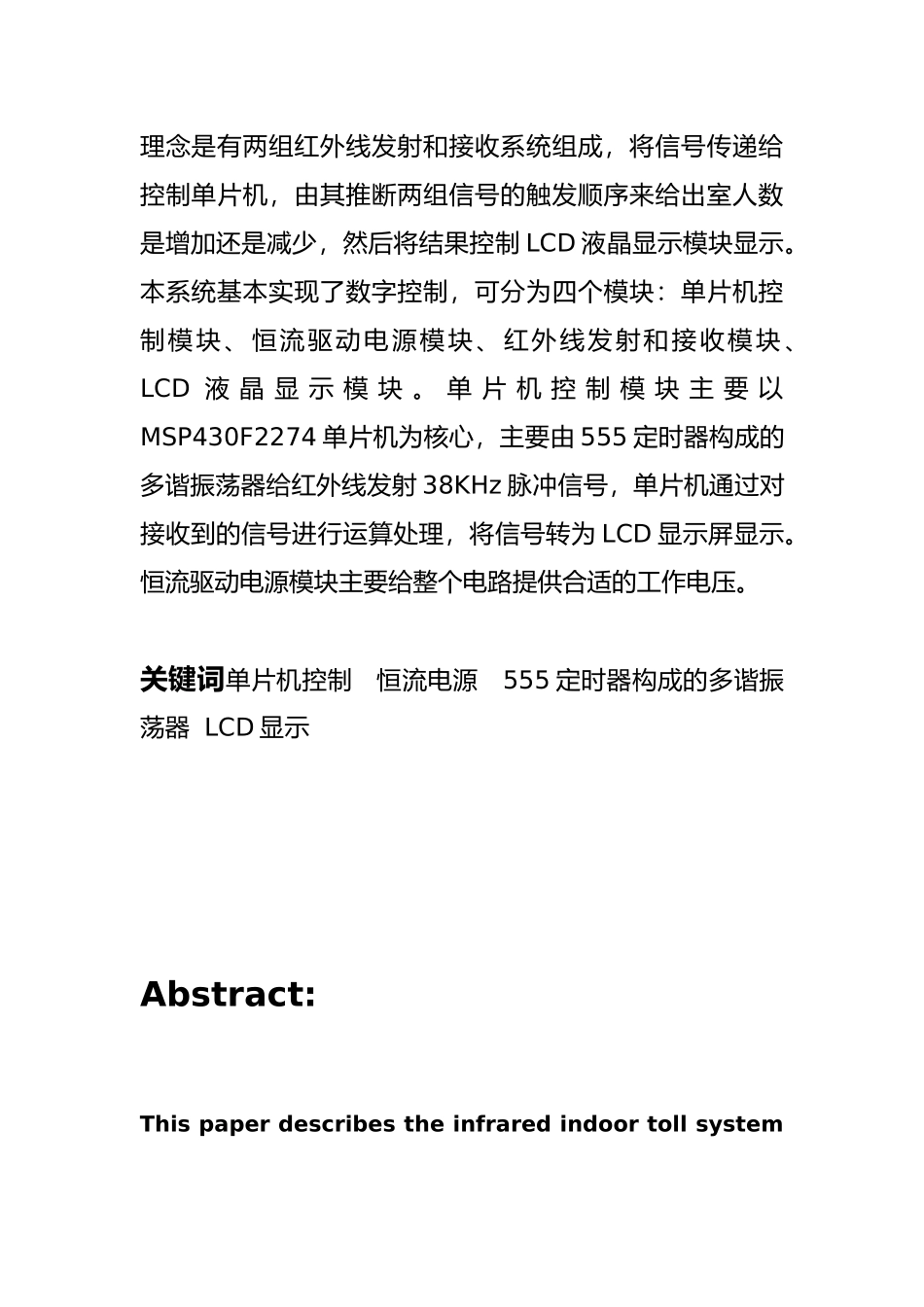

红外线人数计数器设计说明_第2页
2/15

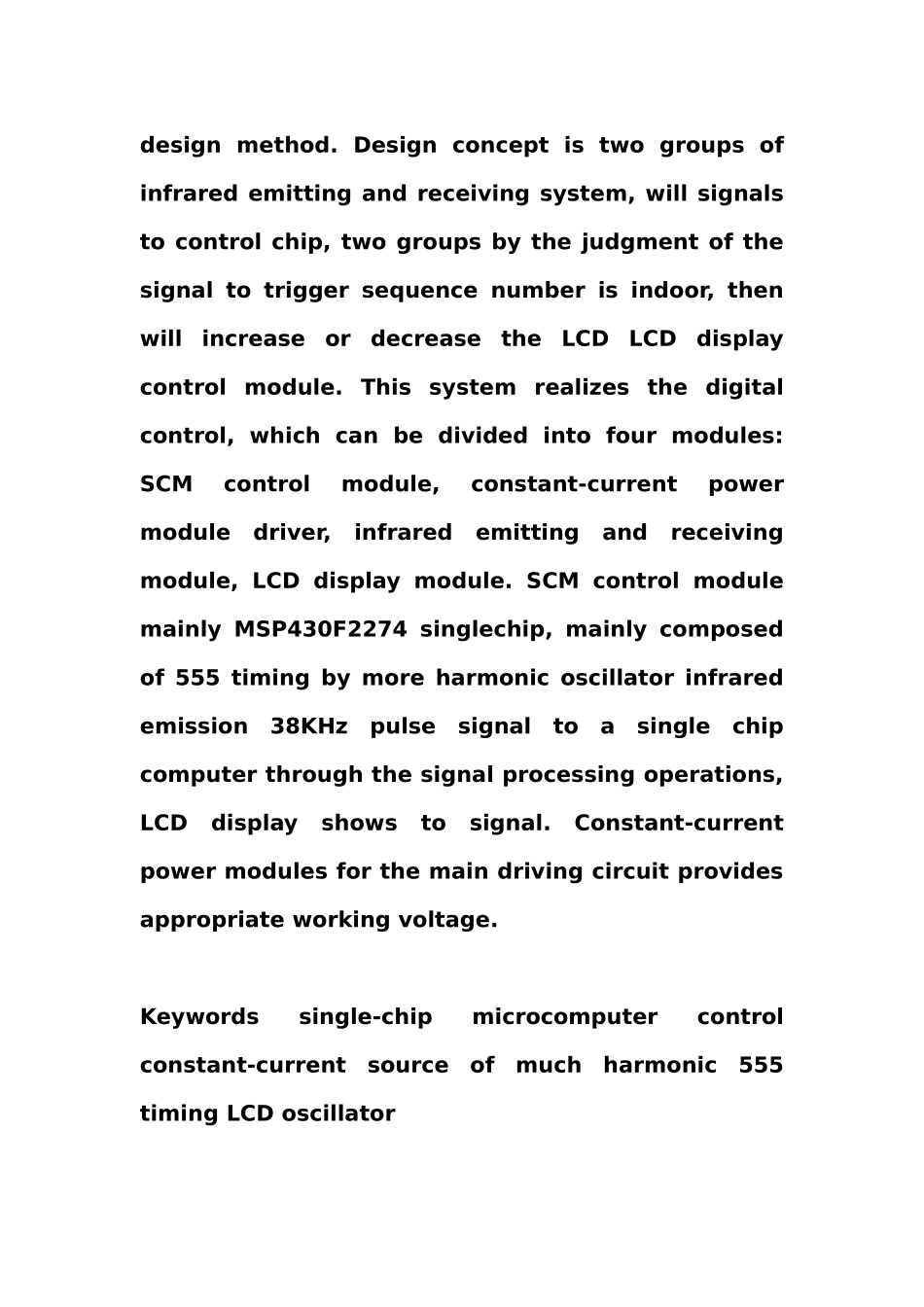

红外线人数计数器设计说明_第3页
3/15
红外线室人数统计设计目录摘要 2Abstract:31 方案与比较论证 41.1 总体设计方案云比较 41.2 实验器材 41.3 模块电路设计与论证 42.系统设计 92.1 总体设计 92.2 软件流程图 92.3 主控电路 103 测试数据与分析 123.1 模块测试 123.2 整机调试 123.3 测试结果 134 系统特色 135 总结 14摘要:本文详细描述了红外线室人数统计系统的设计方法。设计理念是有两组红外线发射和接收系统组成,将信号传递给控制单片机,由其推断两组信号的触发顺序来给出室人数是增加还是减少,然后将结果控制 LCD 液晶显示模块显示。本系统基本实现了数字控制,可分为四个模块:单片机控制模块、恒流驱动电源模块、红外线发射和接收模块 、LCD 液 晶 显 示 模 块 。 单 片 机 控 制 模 块 主 要 以MSP430F2274 单片机为核心,主要由 555 定时器构成的多谐振荡器给红外线发射 38KHz 脉冲信号,单片机通过对接收到的信号进行运算处理,将信号转为 LCD 显示屏显示。恒流驱动电源模块主要给整个电路提供合适的工作电压。关键词单片机控制 恒流电源 555 定时器构成的多谐振荡器 LCD 显示Abstract:This paper describes the infrared indoor toll system design method. Design concept is two groups of infrared emitting and receiving system, will signals to control chip, two groups by the judgment of the signal to trigger sequence number is indoor, then will increase or decrease the LCD LCD display control module. This system realizes the digital control, which can be divided into four modules: SCM control module, constant-current power module driver, infrared emitting and receiving module, LCD display module. SCM control module mainly MSP430F2274 singlechip, mainly composed of 555 timing by more harmonic oscillator infrared emission 38KHz pulse signal to a single chip computer through the signal processing operations, LCD display shows to signal. Constant-current power modules for the main driving circuit provides appropriate working voltage.Keywords single-chip microcomputer control constant-cu...
