基于单片机的家庭防火防盗系统

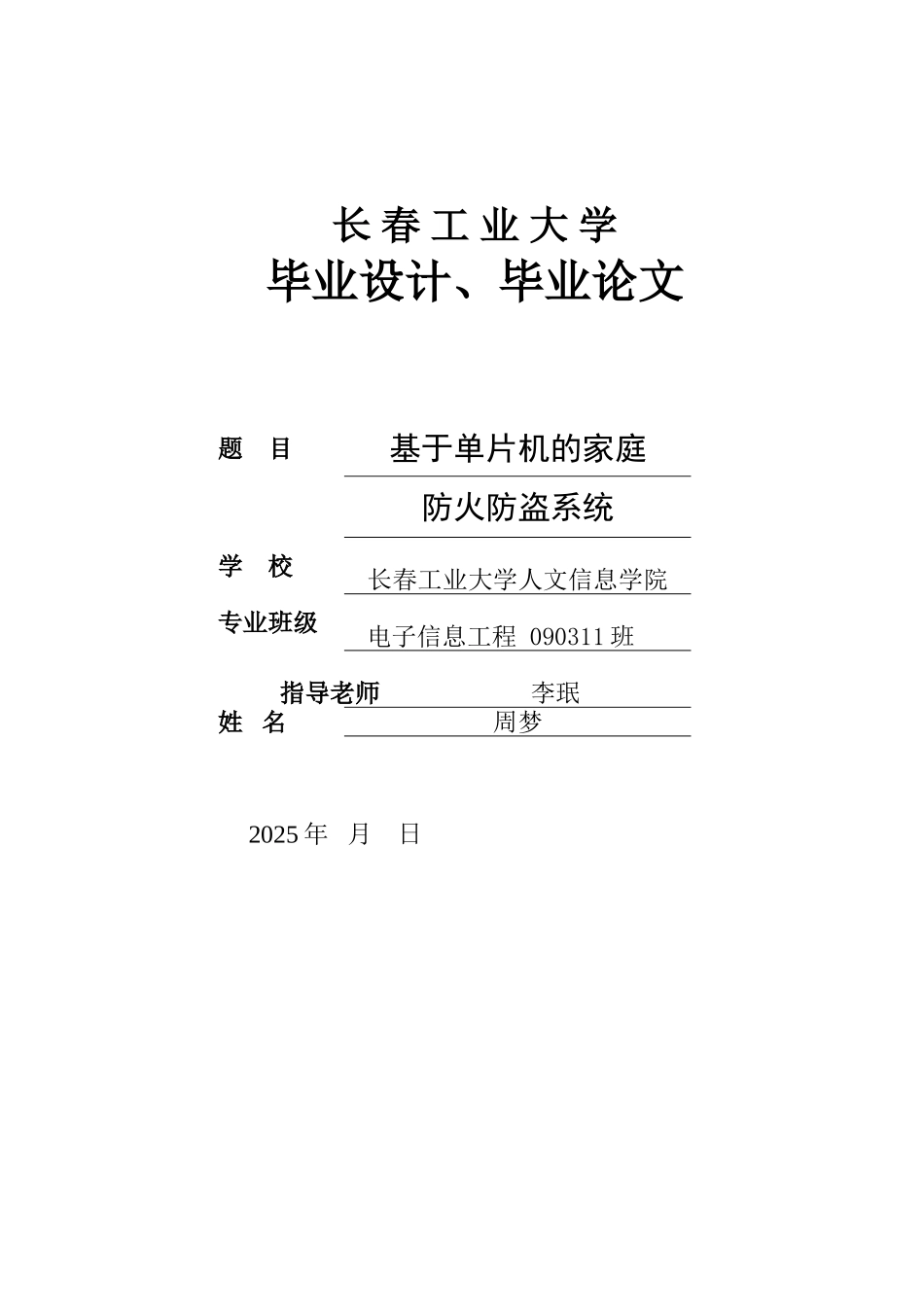

基于单片机的家庭防火防盗系统_第1页
1/20

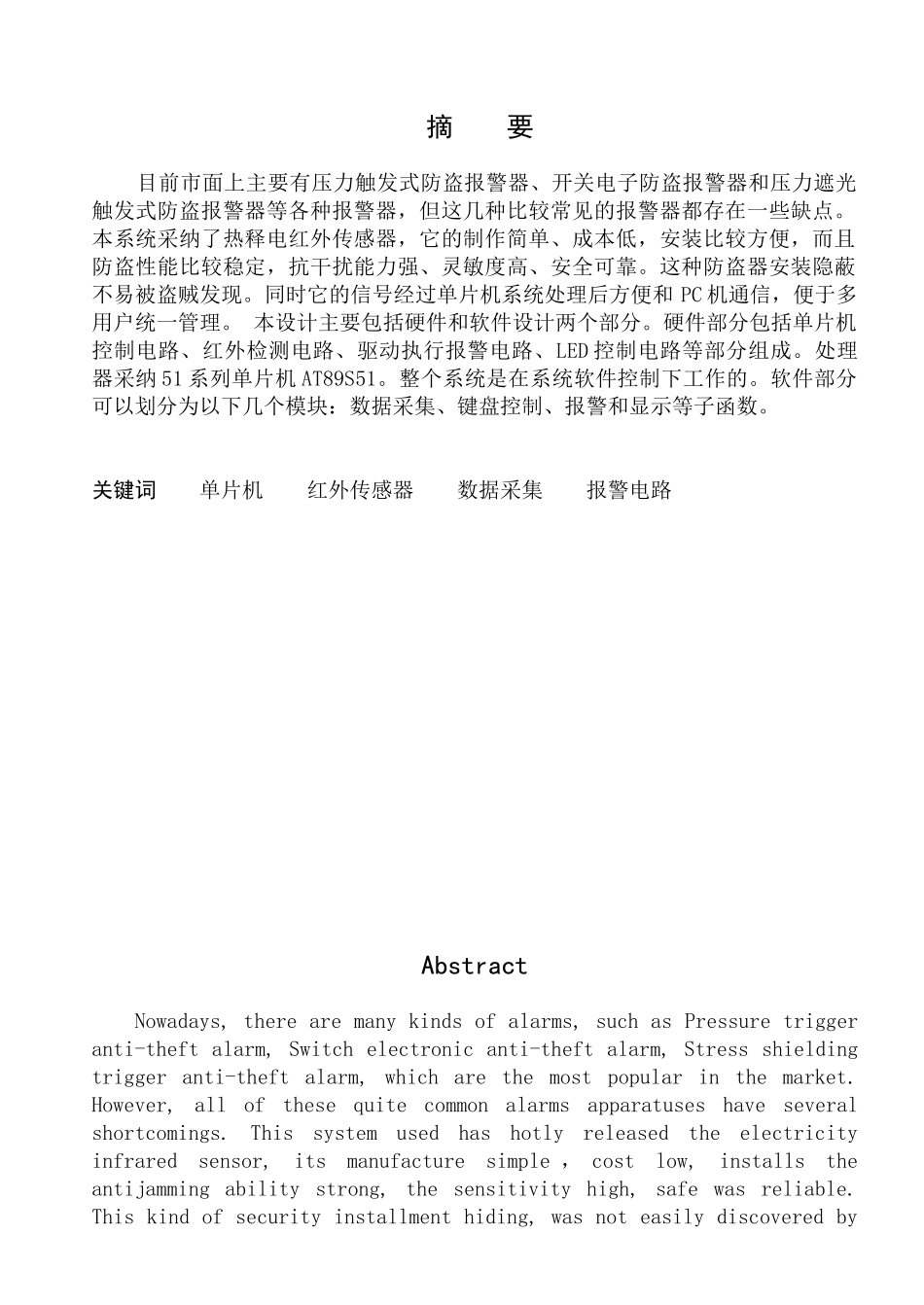

基于单片机的家庭防火防盗系统_第2页
2/20

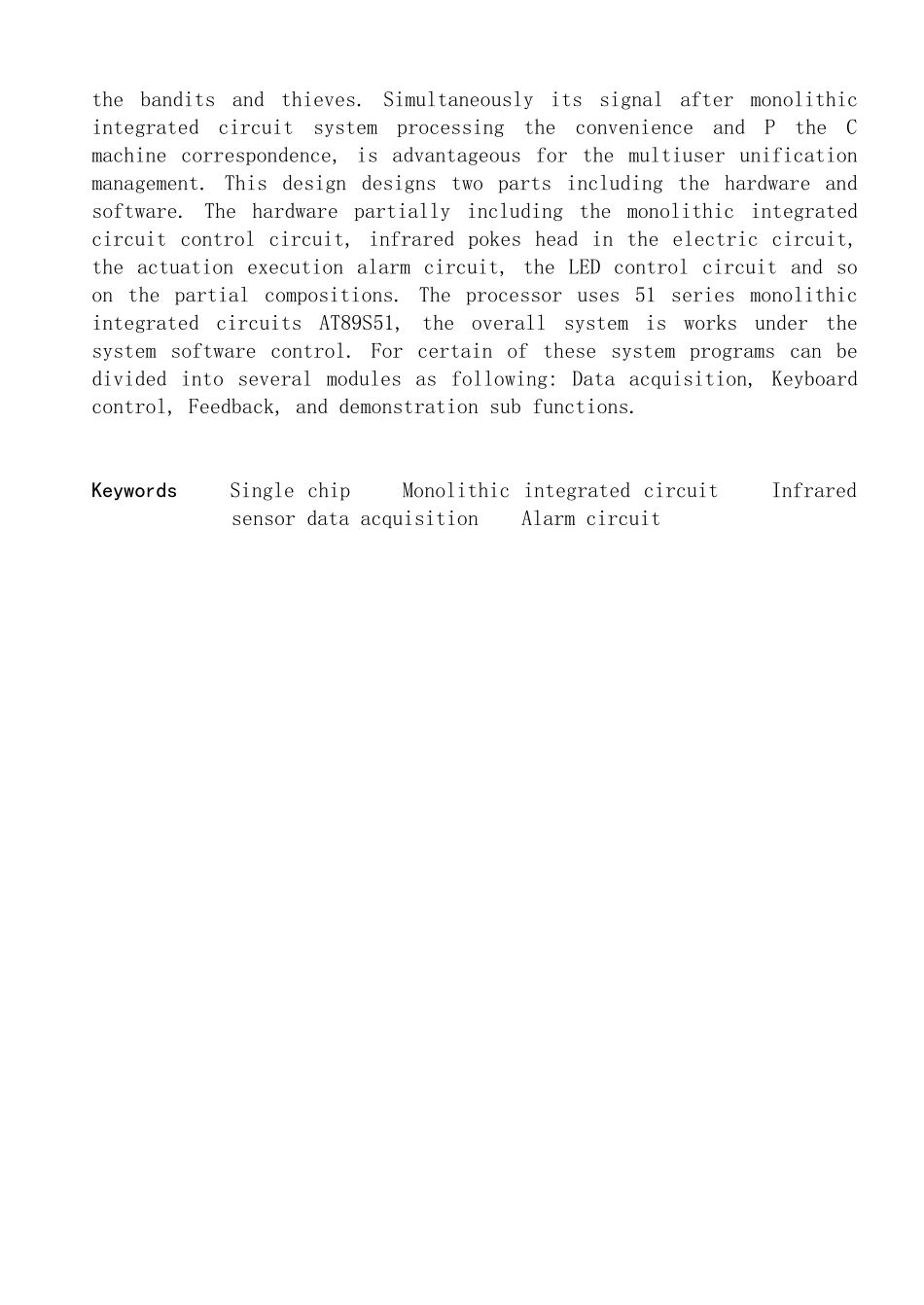

基于单片机的家庭防火防盗系统_第3页
3/20
长 春 工 业 大 学毕业设计、毕业论文题 目基于单片机的家庭防火防盗系统学 校长春工业大学人文信息学院专业班级电子信息工程 090311 班 指导老师 李珉 姓 名周梦 2025 年 月 日 摘 要 目前市面上主要有压力触发式防盗报警器、开关电子防盗报警器和压力遮光触发式防盗报警器等各种报警器,但这几种比较常见的报警器都存在一些缺点。本系统采纳了热释电红外传感器,它的制作简单、成本低,安装比较方便,而且防盗性能比较稳定,抗干扰能力强、灵敏度高、安全可靠。这种防盗器安装隐蔽不易被盗贼发现。同时它的信号经过单片机系统处理后方便和 PC 机通信,便于多用户统一管理。 本设计主要包括硬件和软件设计两个部分。硬件部分包括单片机控制电路、红外检测电路、驱动执行报警电路、LED 控制电路等部分组成。处理器采纳 51 系列单片机 AT89S51。整个系统是在系统软件控制下工作的。软件部分可以划分为以下几个模块:数据采集、键盘控制、报警和显示等子函数。 关键词 单片机 红外传感器 数据采集 报警电路Abstract Nowadays, there are many kinds of alarms, such as Pressure trigger anti-theft alarm, Switch electronic anti-theft alarm, Stress shielding trigger anti-theft alarm, which are the most popular in the market. However, all of these quite common alarms apparatuses have several shortcomings. This system used has hotly released the electricity infrared sensor, its manufacture simple , cost low, installs the antijamming ability strong, the sensitivity high, safe was reliable. This kind of security installment hiding, was not easily discovered by the bandits and thieves. Simultaneously its signal after monolithic integrated circuit system processing the convenience and P the C machine correspondence, is advantageous for the multiuser unification management. This design designs two parts including the hardware and software. The hardware partially including the monolithic integrated circuit control circuit, infrared pokes head in the electric circuit, the actuation execution...
