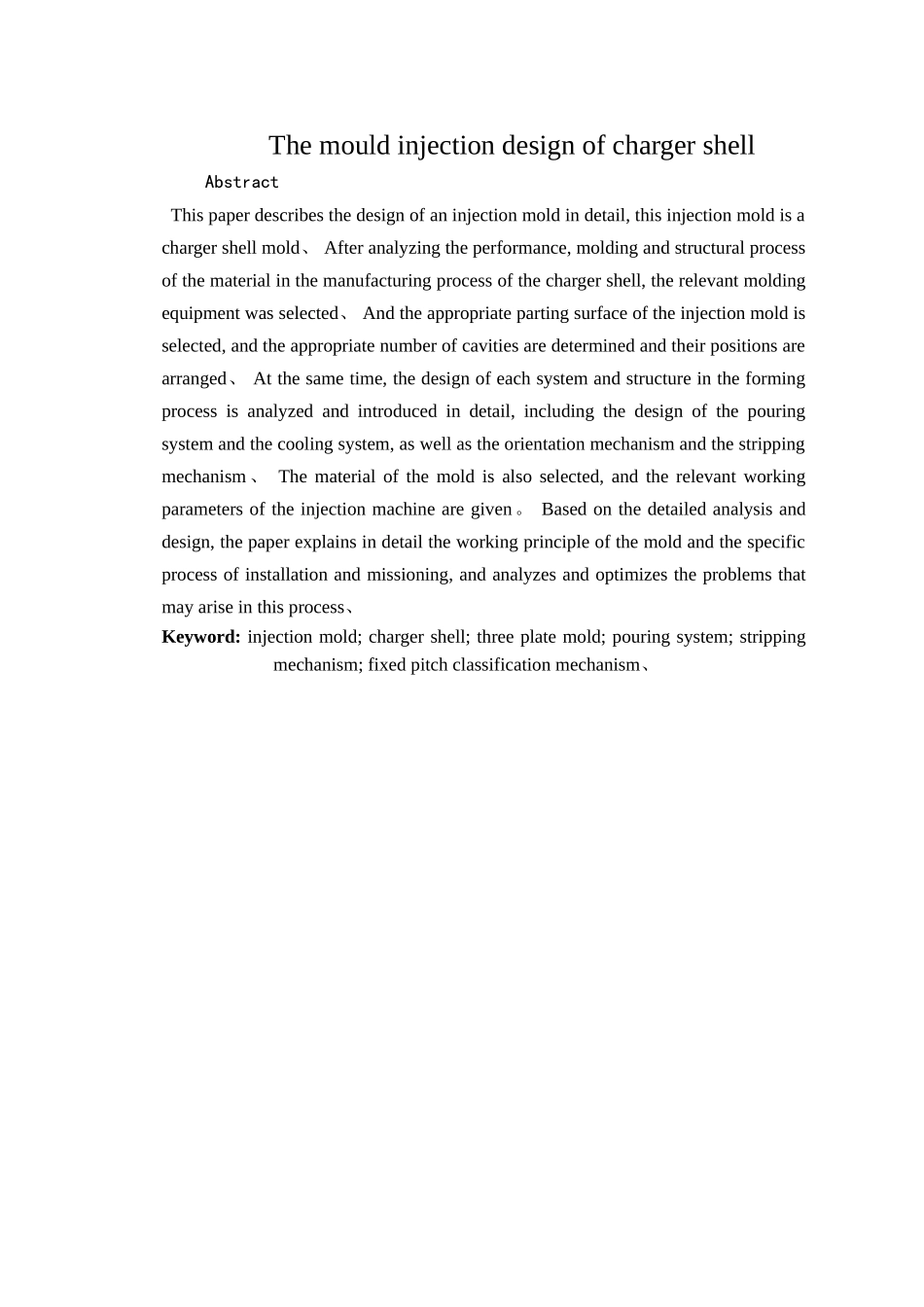

编号 2本科毕业设计题 目: 手机充电壳得注塑模具设计 学 院: 机械工程学院 专 业: 材料成型及控制工程 年 级: 13 级 姓 名: 冯旭阳 指导老师: 霍春明 完成日期: 2025 年 5 月 8 日 充电器外壳注塑模设计摘要本文主对一种注塑模具得设计方法进行了详细得描述,这种注塑模具就是一种充电器外壳得模具、在分析了充电器外壳制作流程中得材料得性能、成型与结构工艺性等特点以后,对相关得成型设备得进行了选型。并且在此基础上选取了注塑模合适得分型面,确定了合适数目得型腔并对其位置进行了布置。同时对在成型过程中得各个系统与结构得设计进行了详细得分析与介绍,包括浇注系统与冷却系统得设计以及定向机构与脱模机构等机构。本文还对模具得材料进行了选择,并且给出了注射机得相关得工作参数。在经过具体得分析与设计得基础上,详细了解释了本模具得工作原理与安装调试得具体得过程,并且对在这个过程中可能出现得问题进行分析与优化。关键词:注塑模具;充电器外壳;三板模;浇注系统;脱模机构;定距分型机构、The mould injection design of charger shell Abstract This paper describes the design of an injection mold in detail, this injection mold is a charger shell mold、 After analyzing the performance, molding and structural process of the material in the manufacturing process of the charger shell, the relevant molding equipment was selected、 And the appropriate parting surface of the injection mold is selected, and the appropriate number of cavities are determined and their positions are arranged、 At the same time, the design of each system and structure in the forming process is analyzed and introduced in detail, including the design of the pouring system and the cooling system, as well as the orientation mechanism and the stripping mechanism 、 The material of the mold is also selected, and the relevant working parameters of the injection machine are given。 Based on the detailed analysis and design, the paper explains in detail the working principle of the mold an...
