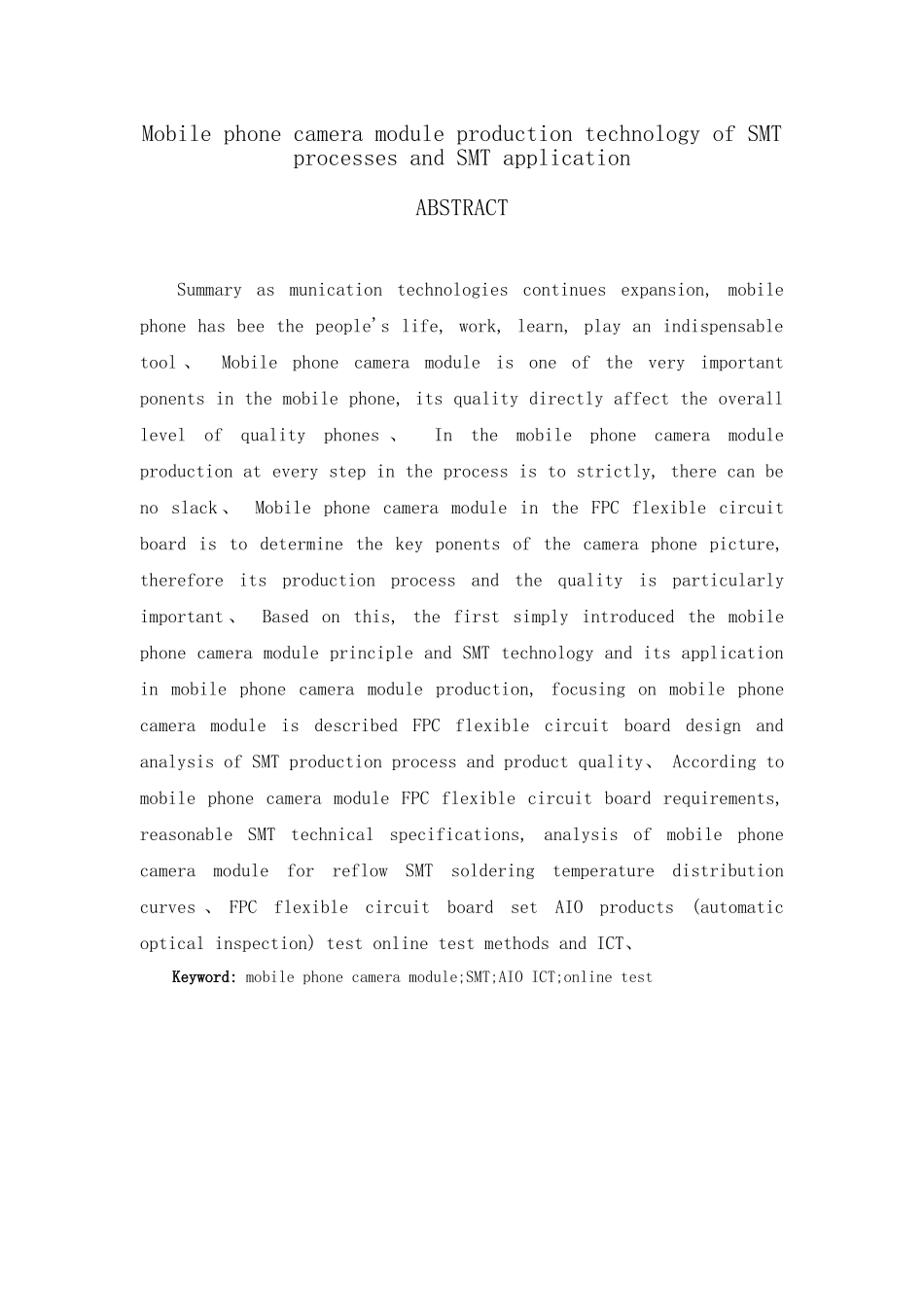

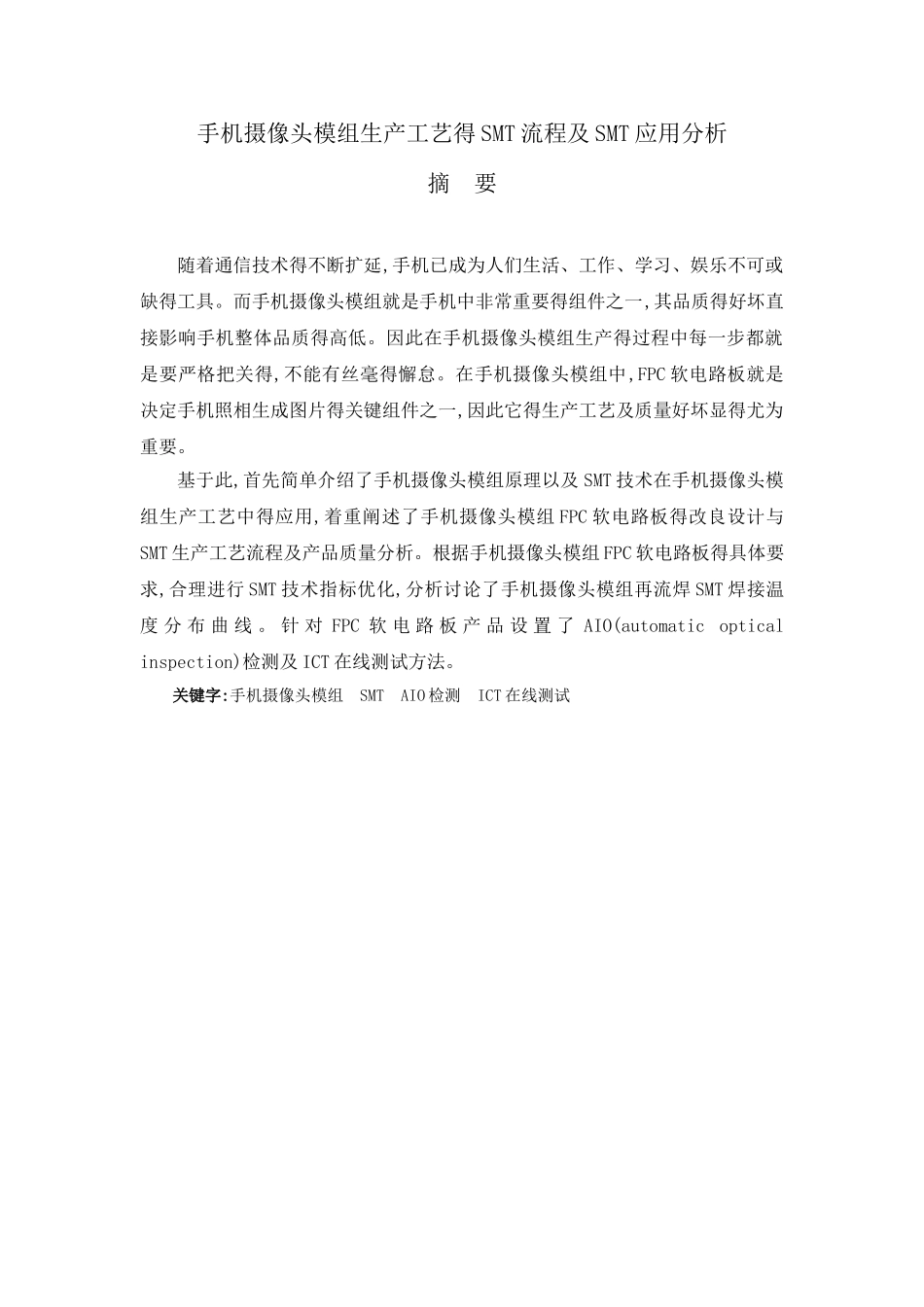

手机摄像头模组生产工艺得 SMT 流程及 SMT 应用分析摘 要随着通信技术得不断扩延,手机已成为人们生活、工作、学习、娱乐不可或缺得工具。而手机摄像头模组就是手机中非常重要得组件之一,其品质得好坏直接影响手机整体品质得高低。因此在手机摄像头模组生产得过程中每一步都就是要严格把关得,不能有丝毫得懈怠。在手机摄像头模组中,FPC 软电路板就是决定手机照相生成图片得关键组件之一,因此它得生产工艺及质量好坏显得尤为重要。基于此,首先简单介绍了手机摄像头模组原理以及 SMT 技术在手机摄像头模组生产工艺中得应用,着重阐述了手机摄像头模组 FPC 软电路板得改良设计与SMT 生产工艺流程及产品质量分析。根据手机摄像头模组 FPC 软电路板得具体要求,合理进行 SMT 技术指标优化,分析讨论了手机摄像头模组再流焊 SMT 焊接温度 分 布 曲 线 。 针 对 FPC 软 电 路 板 产 品 设 置 了 AIO(automatic optical inspection)检测及 ICT 在线测试方法。关键字:手机摄像头模组 SMT AIO 检测 ICT 在线测试Mobile phone camera module production technology of SMT processes and SMT application ABSTRACTSummary as munication technologies continues expansion, mobile phone has bee the people's life, work, learn, play an indispensable tool 、 Mobile phone camera module is one of the very important ponents in the mobile phone, its quality directly affect the overall level of quality phones 、 In the mobile phone camera module production at every step in the process is to strictly, there can be no slack 、 Mobile phone camera module in the FPC flexible circuit board is to determine the key ponents of the camera phone picture, therefore its production process and the quality is particularly important 、 Based on this, the first simply introduced the mobile phone camera module principle and SMT technology and its application in mobile phone camera module production, focusing on mobile phone camera module is described FPC flexible circuit board design and analysis of ...
