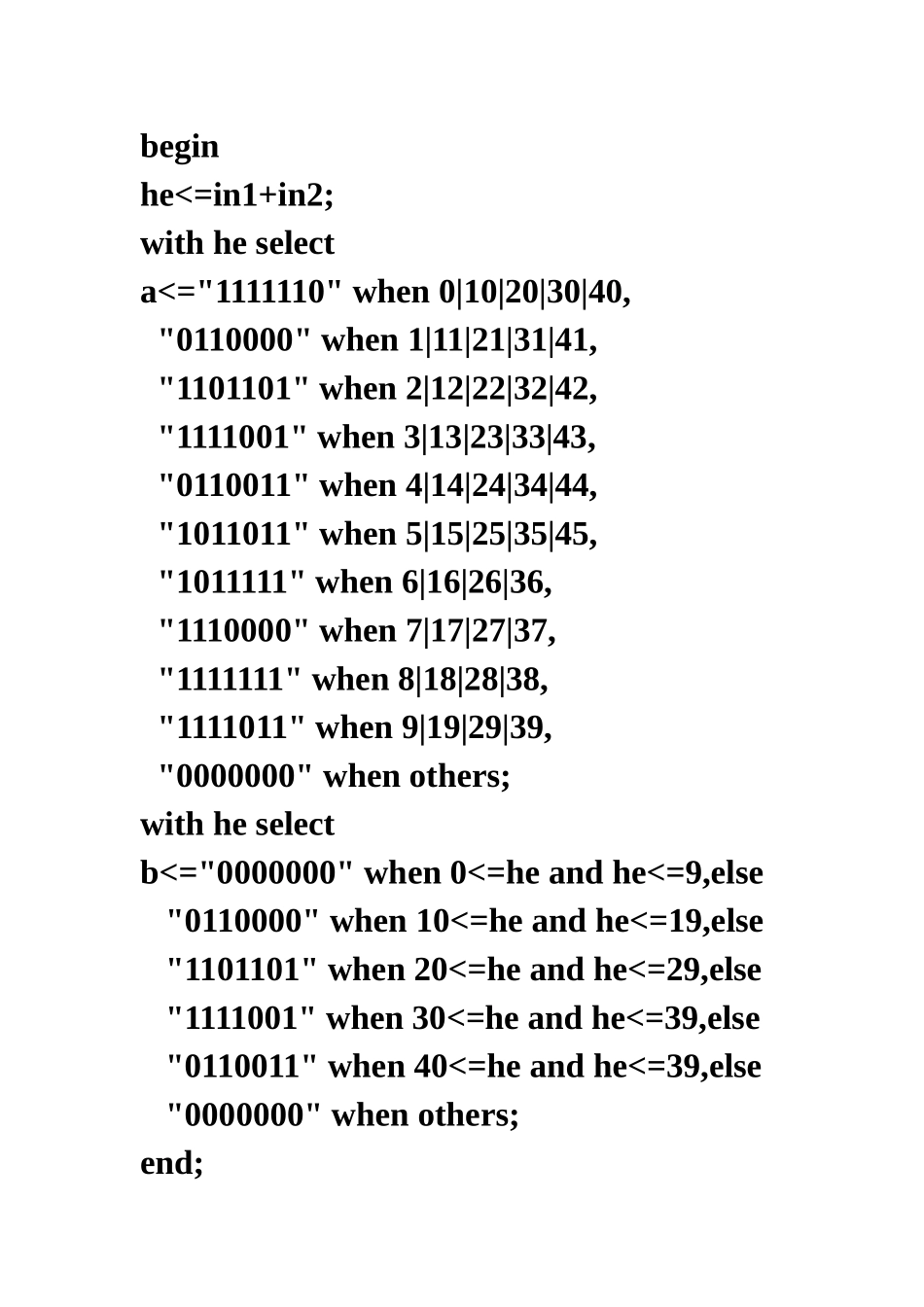

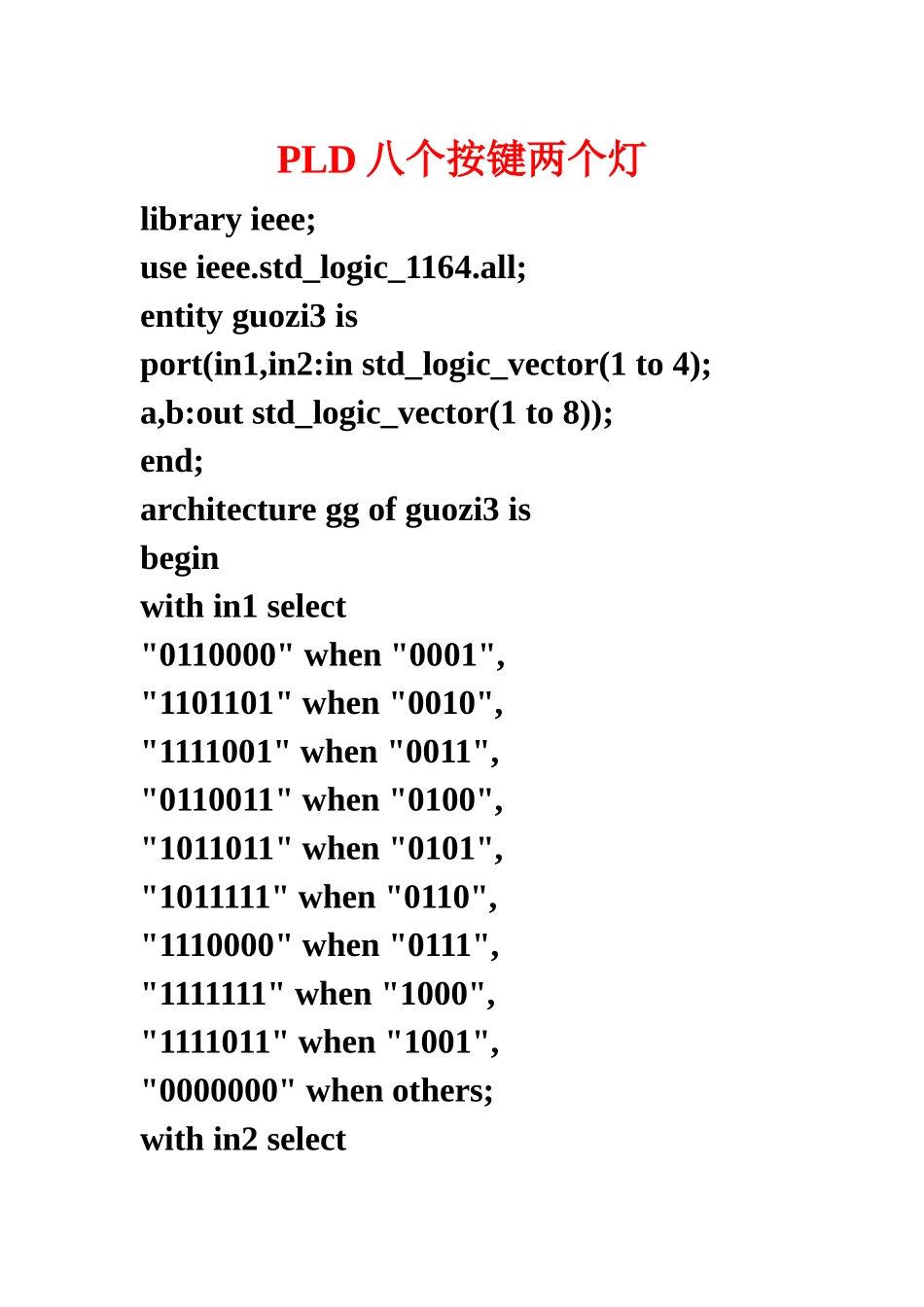

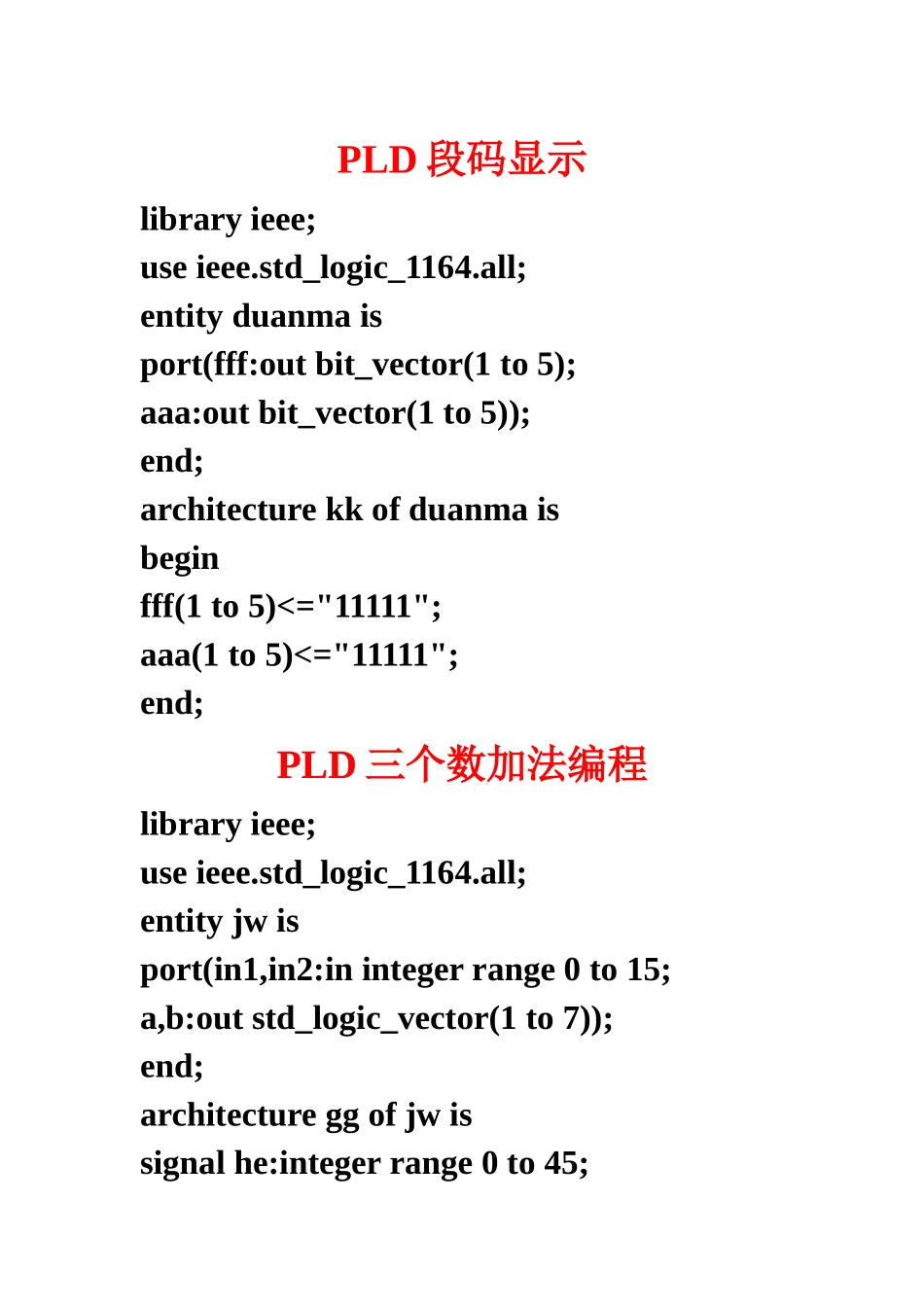

PLD 段码显示library ieee;use ieee.std_logic_1164.all;entity duanma isport(fff:out bit_vector(1 to 5);aaa:out bit_vector(1 to 5));end;architecture kk of duanma isbegin fff(1 to 5)<="11111";aaa(1 to 5)<="11111";end;PLD 三个数加法编程library ieee;use ieee.std_logic_1164.all;entity jw isport(in1,in2:in integer range 0 to 15;a,b:out std_logic_vector(1 to 7));end;architecture gg of jw issignal he:integer range 0 to 45;beginhe<=in1+in2;with he selecta<="1111110" when 0|10|20|30|40, "0110000" when 1|11|21|31|41, "1101101" when 2|12|22|32|42, "1111001" when 3|13|23|33|43, "0110011" when 4|14|24|34|44, "1011011" when 5|15|25|35|45, "1011111" when 6|16|26|36, "1110000" when 7|17|27|37, "1111111" when 8|18|28|38, "1111011" when 9|19|29|39, "0000000" when others;with he selectb<="0000000" when 0<=he and he<=9,else "0110000" when 10<=he and he<=19,else "1101101" when 20<=he and he<=29,else "1111001" when 30<=he and he<=39,else "0110011" when 40<=he and he<=39,else "0000000" when others;end;PLD 八个按键两个灯library ieee;use ieee.std_logic_1164.all;entity guozi3 isport(in1,in2:in std_logic_vector(1 to 4);a,b:out std_logic_vector(1 to 8));end;architecture gg of guozi3 isbeginwith in1 select"0110000" when "0001","1101101" when "0010","1111001" when "0011","0110011" when "0100","1011011" when "0101","1011111" when "0110","1110000" when "0111","1111111" when "1000","1111011" when "1001","0000000" when others;with in2 selectb<="0110000"when "0001","1101101" when "0010","1111001" when "0011","0110011" when "0100","1011011" when "0101","1011111" when "0110","1110000" when "0111","1111111" when "1000","1111011" when "1001","0000000" when others;end;PLD 顺序语句编程(0 加到 9)library ieee;use ieee.std_logic_1164.all;entity jinchen isport(in1:in std_logic;a:out std_logic_vector(1 to 7)); end;architecture gg of jin...
