SUPBUILDPROCESS冲浪板桨板建板过程VIP免费

SUPBUILDPROCESS冲浪板桨板建板过程_第1页
1/34

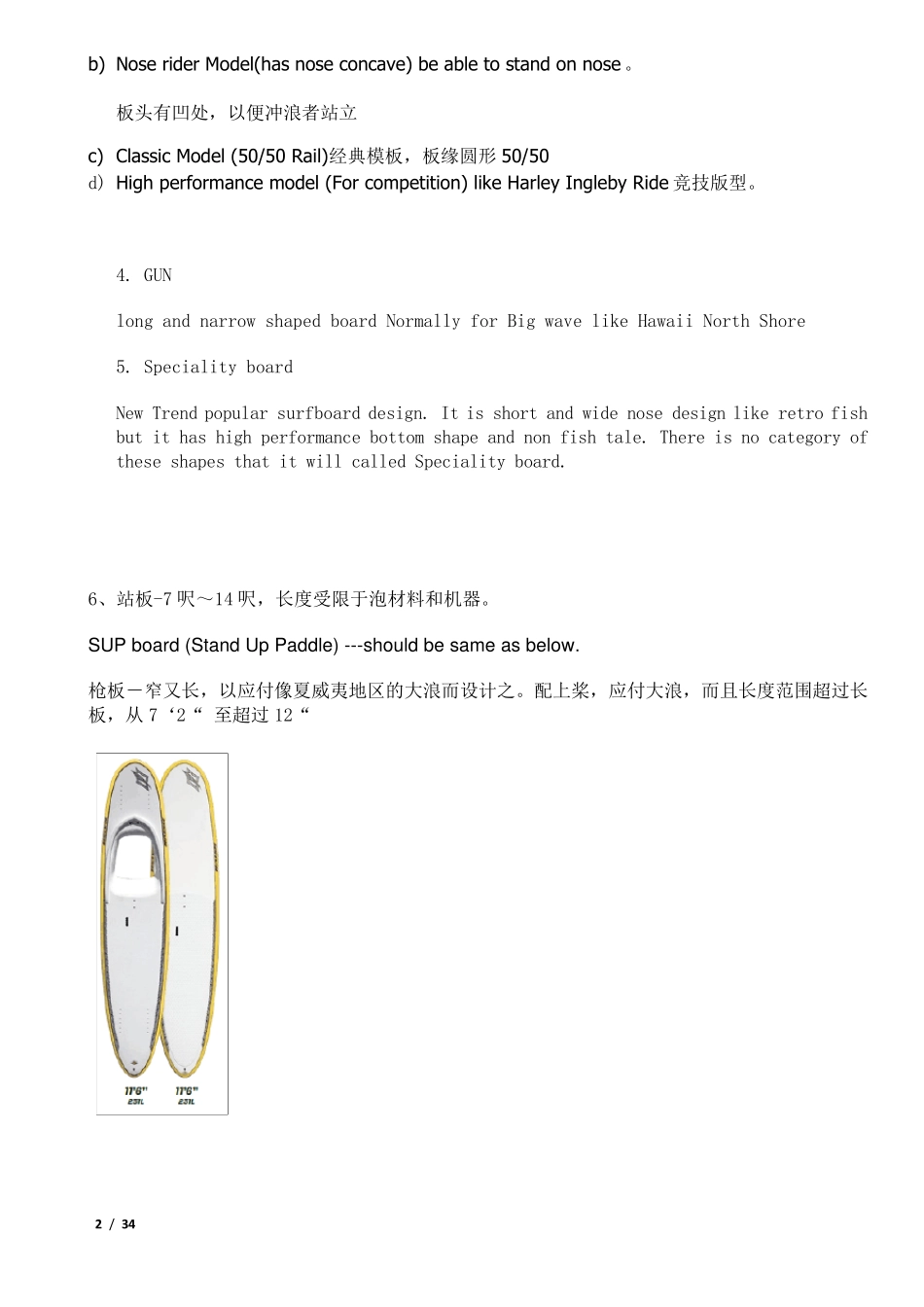

SUPBUILDPROCESS冲浪板桨板建板过程_第2页
2/34

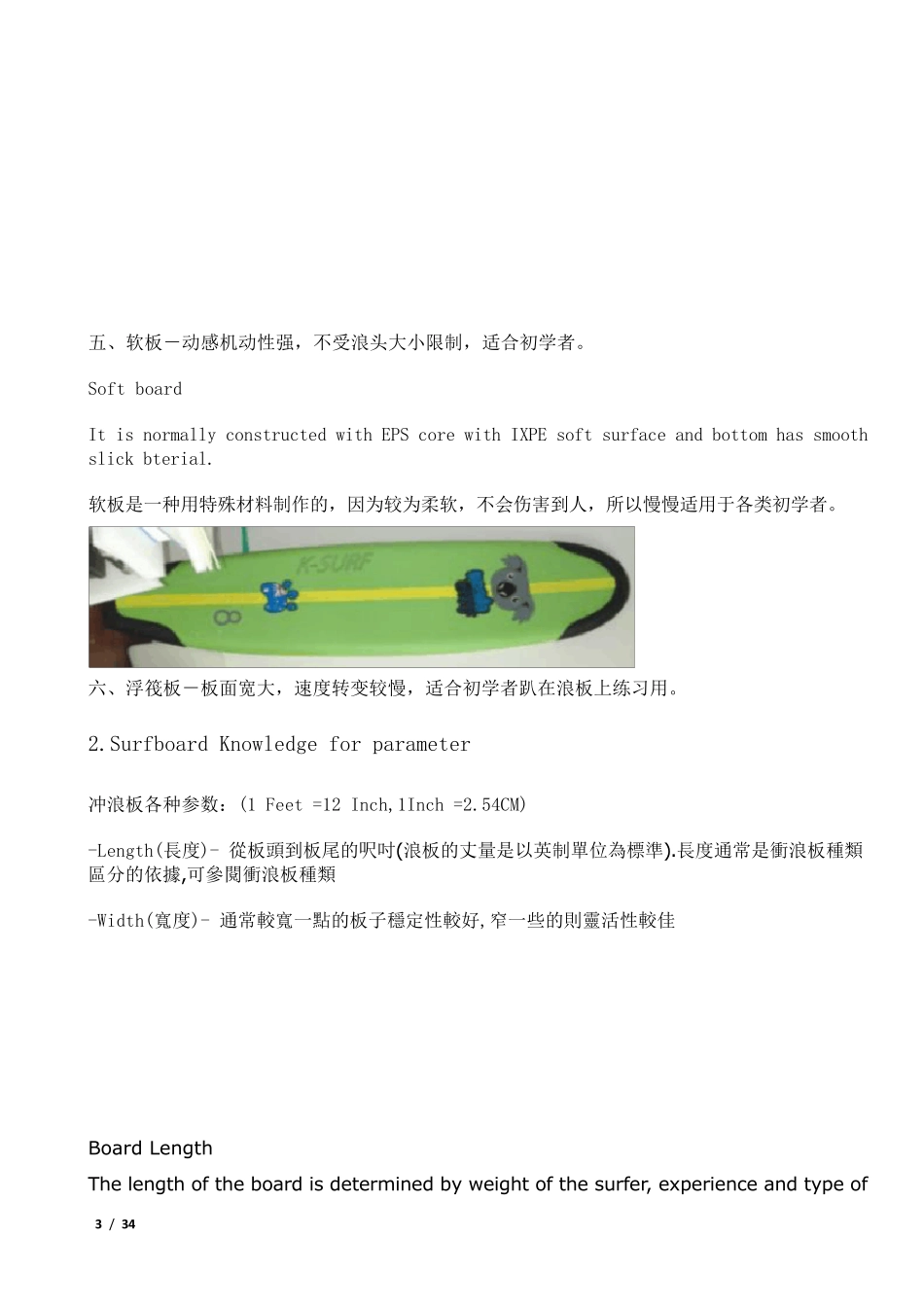

SUPBUILDPROCESS冲浪板桨板建板过程_第3页
3/34
1 / 34 Surfboard knowledge 冲浪板教材 1.Surfboards type 1.冲浪板分类Follow the length and material 一、短板-长度7 呎以下,属于技术型浪板。 Short Board less than 7’(Except specialty boards) 2. Retro Fish Board 鱼板 3. Egg Board 蛋形板 4. Fun Board (semi tip nose)FUN 板,板头不是那么圆,偏尖的是FUN 板。 二、中板-7 呎~9 呎, Minimal (Round Nose – Same Shape as Long board but just shorter) length from 7’to 9’. 中板(板头为圆头,同长板同样形状,但是短些),长度在7‘-9’。 中板与 FUN 板是同一尺寸范围内的板子,但是区别在于板头(NOSE),板头偏圆的是中板,板头偏尖不那么圆的是FUN BOARD。 三.长板-长度9 呎以上,适合初学者。 Long board over 9’ 有几种类型的长板: a) Standard Model 标准模板 2 / 34 b) Nose rider Model(has nose concave) be able to stand on nose 。 板头有凹处,以便冲浪者站立 c) Classic Model (50/50 Rail)经典模板,板缘圆形50/50 d) High performance model (For competition) like Harley Ingleby Ride 竞技版型。 4. GUN long and narrow shaped board Normally for Big wave like Hawaii North Shore 5. Speciality board New Trend popular surfboard design. It is short and wide nose design like retro fish but it has high performance bottom shape and non fish tale. There is no category of these shapes that it will called Speciality board. 6、站板-7 呎~14 呎,长度受限于泡材料和机器。 SUP board (Stand Up Paddle) ---should be same as below . 枪板-窄又长,以应付像夏威夷地区的大浪而设计之。配上桨,应付大浪,而且长度范围超过长板,从7‘2“ 至超过12“ 3 / 34 五、软板-动感机动性强,不受浪头大小限制,适合初学者。 Soft board It is normally constructed with EPS core with IXPE soft surface and bottom has smooth slick bterial. 软板是一种用特殊材料制作的,因为较为柔软,不会伤害到人,所以慢慢适用于各类初学者。 六、浮筏板-板面宽大,速度转变较慢,适合初学者趴在浪板上练习用。 2.Surfboar...

1、当您付费下载文档后,您只拥有了使用权限,并不意味着购买了版权,文档只能用于自身使用,不得用于其他商业用途(如 [转卖]进行直接盈利或[编辑后售卖]进行间接盈利)。
2、本站所有内容均由合作方或网友上传,本站不对文档的完整性、权威性及其观点立场正确性做任何保证或承诺!文档内容仅供研究参考,付费前请自行鉴别。
3、如文档内容存在违规,或者侵犯商业秘密、侵犯著作权等,请点击“违规举报”。

碎片内容

SUPBUILDPROCESS冲浪板桨板建板过程
