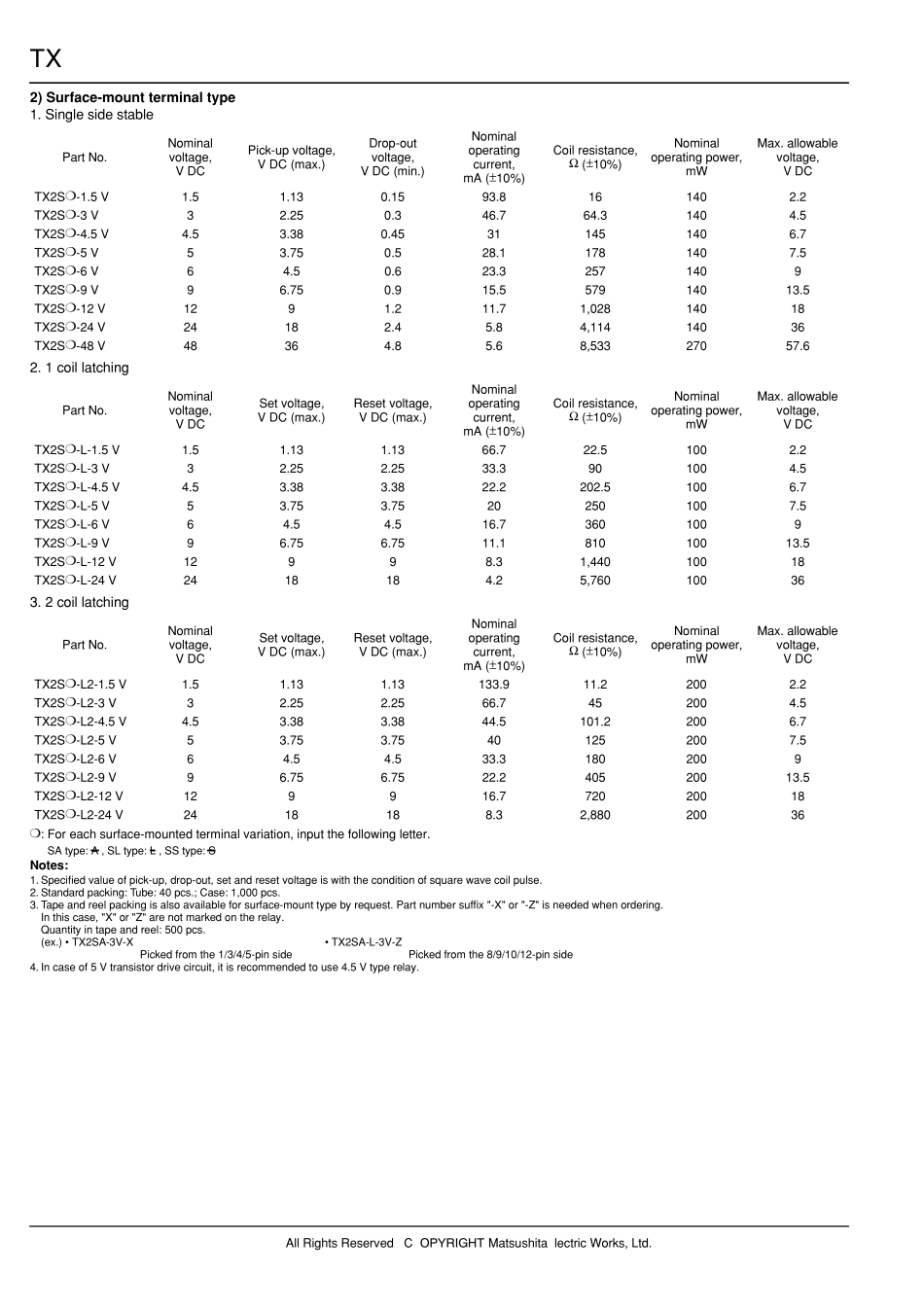

TX RELAYS 2 A CAPACITY RELAY WITH HIGH SURGE VOLTAGE & HIGH BREAKDOWN VOLTAGE mm inch8.2.3237.4.29115.5918.4.3317.4.29115.591 FEATURES • Breakdown voltage between contacts and coil: 2,000 V• Surge withstand between contacts and coil: 2,500 V• High contact capacity: 2 A 30 V DC• Surface-mount type available SPECIFICATIONS Contact Notes: ❇ 1This value can change due to the switching frequency, environmental conditions, and desired reliability level, therefore it is recommended to check this with the ac-tual load. (SX relays are available for low level load switching [10 µA 1 mV DC – 10 mA 10 V DC]) ❇ 2The upper limit for the ambient temperature is the maximum temperature that can satisfy the coil temperature rise. Under the packing condition, allowable tem-perature range is from –40 to +70°C –40°C to +158°F. Remarks * Specifications will vary with foreign standards certification ratings.* 1 Measurement at same location as "Initial breakdown voltage" section.* 2 By resistive method, nominal voltage applied to the coil; contact carrying current: 2 A.* 3 Nominal voltage applied to the coil, excluding contact bounce time.* 4 Nominal voltage applied to the coil, excluding contact bounce time without diode.* 5 Half-wave pulse of sine wave: 6 ms; detection time: 10 µ s.* 6 Half-wave pulse of sine wave: 6 ms.* 7 Detection time: 10 µ s.* 8 Refer to 6. Conditions for operation, transport and storage mentioned in AMBIENT ENVIRONMENT. Characteristics Arrangement2 Form CInitial contact resistance, max.(By voltage drop 6 V DC 1 A)100 m Ω Contact materialGold-clad silver alloyRatingNominal switching capacity (resistive load)2 A 30 V DCMax. switching power (resistive load)60 WMax. switching voltage220 V D...
