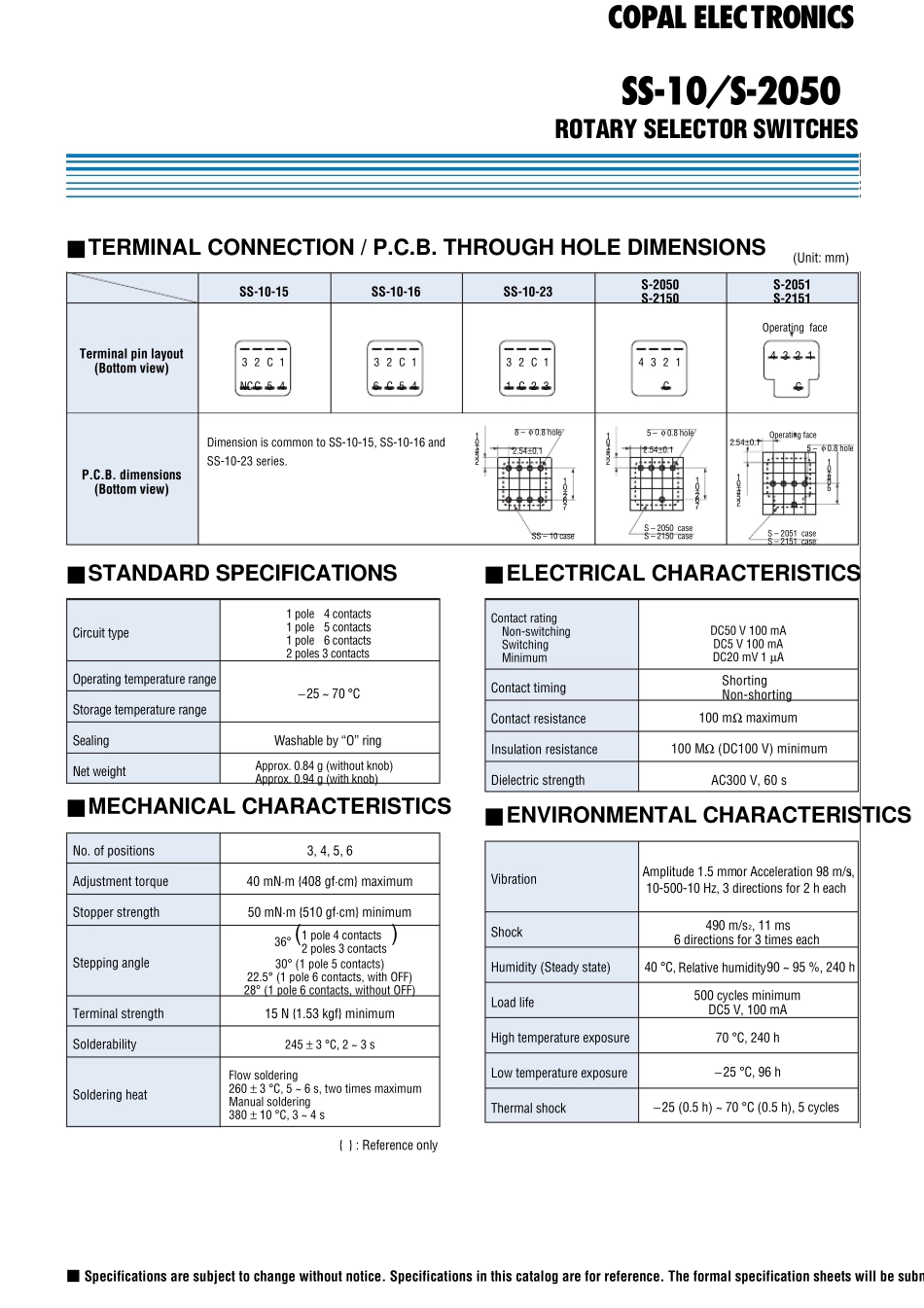

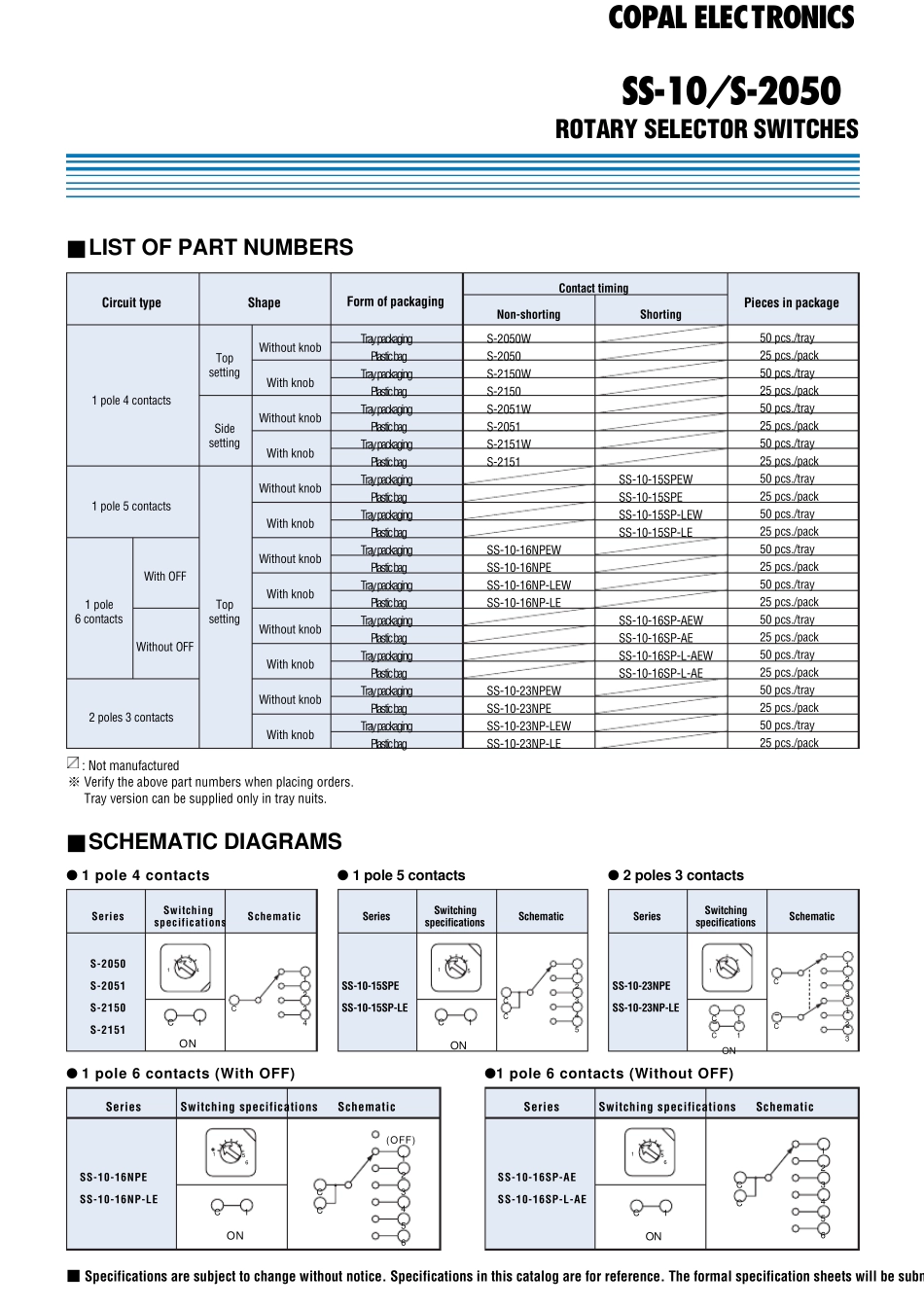

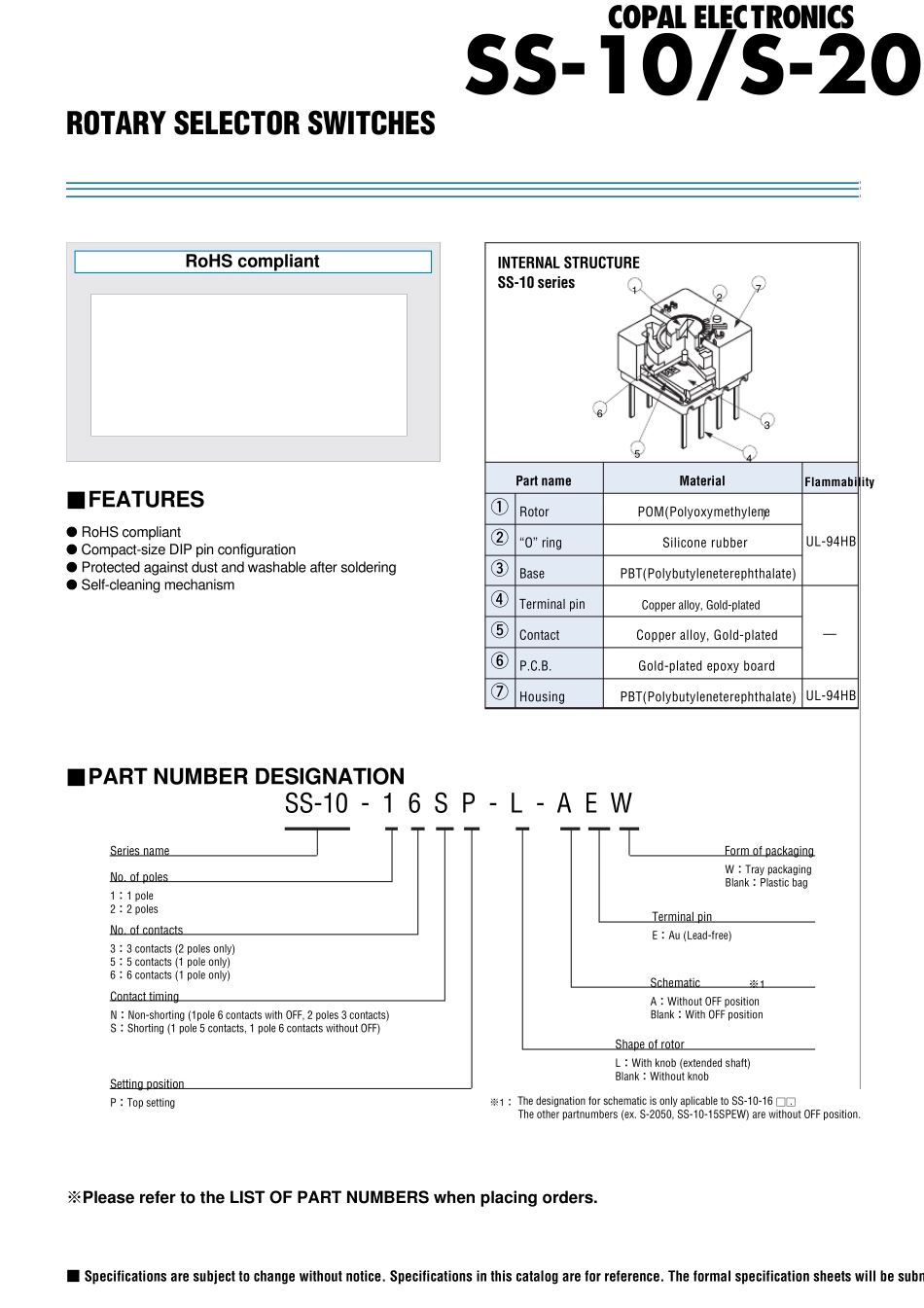

 Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.COPAL ELECTRONICSFEATURES● RoHS compliant● Compact-size DIP pin configuration● Protected against dust and washable after soldering● Self-cleaning mechanismPart nameP.C.B.BaseRotorContact“O” ringTerminal pinMaterialFlammabilityUL-94HB—PBT(Polybutyleneterephthalate)Silicone rubberPBT(Polybutyleneterephthalate)Copper alloy, Gold-platedGold-plated epoxy boardHousingUL-94HBPOM(PolyoxymethylenePART NUMBER DESIGNATIONINTERNAL STRUCTURESS-10 seriesSS-10 - 1 6 S P - L - A E WSeries nameNo. of poles11 pole22 polesNo. of contacts33 contacts (2 poles only)55 contacts (1 pole only)66 contacts (1 pole only)SchematicShape of rotorAWithout OFF positionBlankWith OFF positionForm of packagingWTray packagingBlankPlastic bagTerminal pinEAu (Lead-free)LWith knob (extended shaft)BlankWithout knobPlease refer to the LIST OF PART NUMBERS w hen placing orders.Setting positionPTop settingContact timingNNon-shorting (1pole 6 contacts with OFF, 2 poles 3 contacts)SShorting (1 pole 5 contacts, 1 pole 6 contacts without OFF) The designation for schematic is only aplicable to SS-10-16  .The other partnumbers (ex. S-2050, SS-10-15SPEW) are without OFF position.1273456SS-10/S-2050ROTARY SELECTOR SWITCHESCopper alloy, Gold-platedRoHS compliant Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.COPAL ELECTRONICSTray packagingPlastic bagTray packagingPlastic bagTray packagingPlastic bagTray packagingPlastic bagTray packagingPlastic bagTray packagingPlastic ba...
