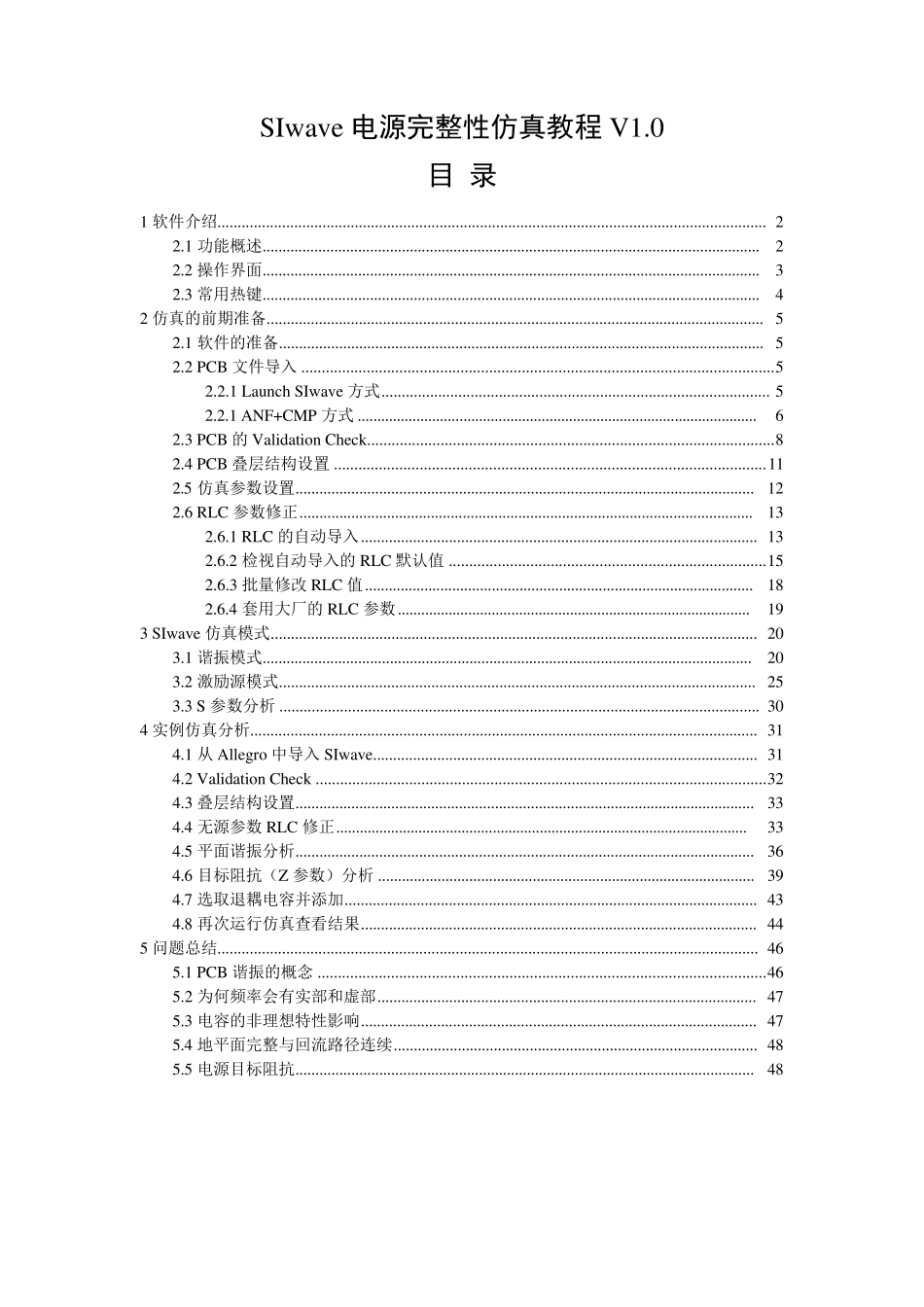

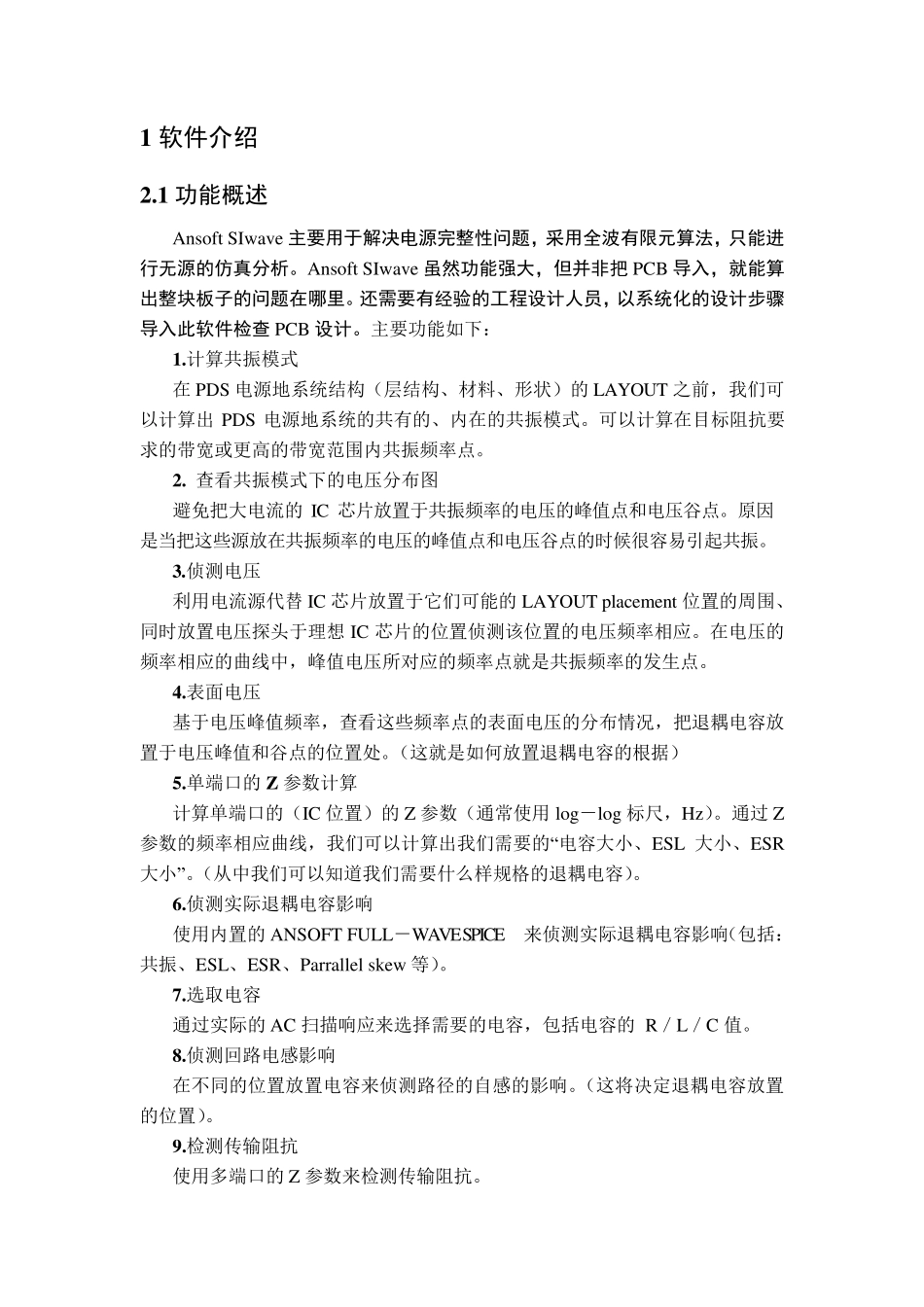

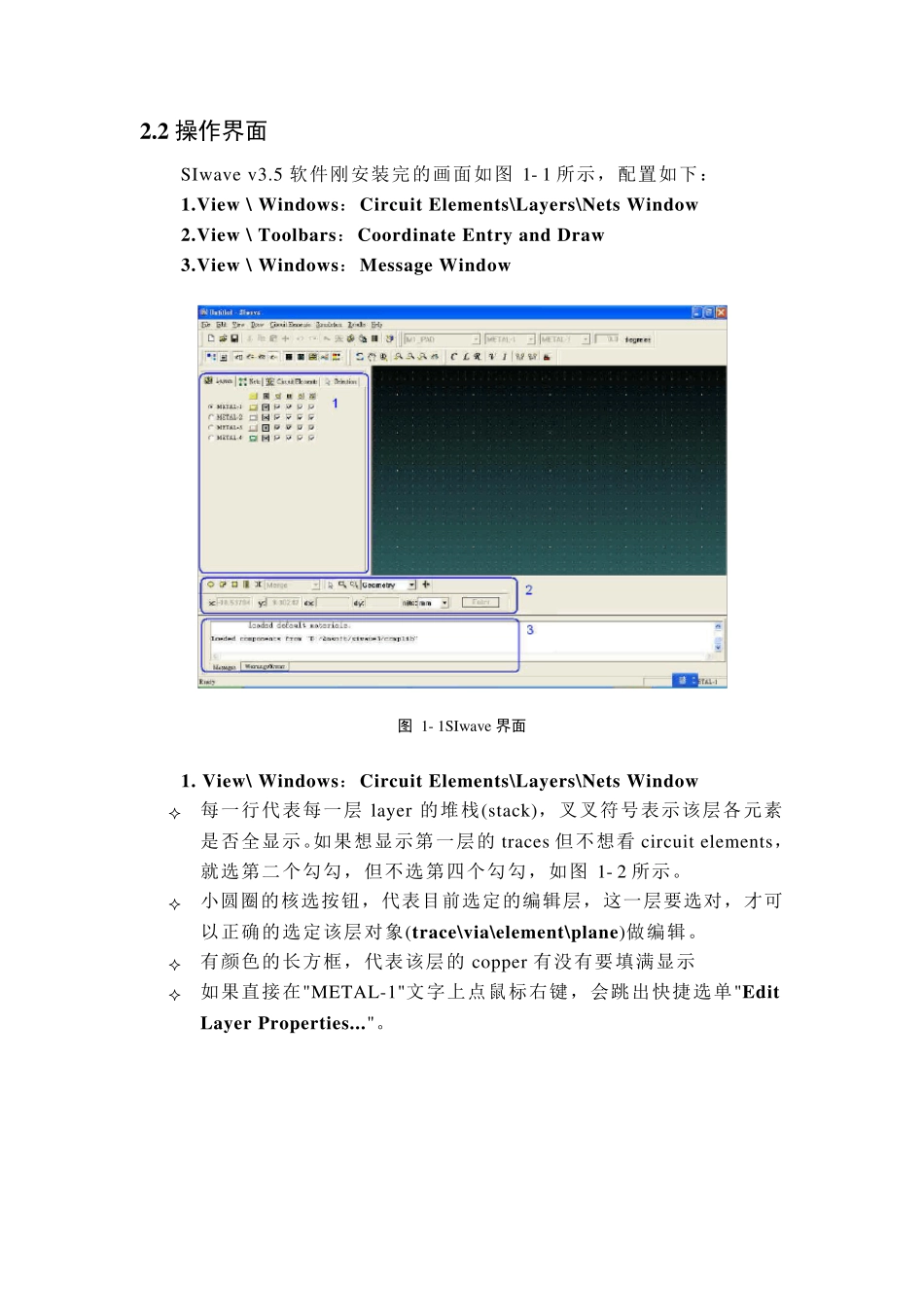

SIw ave 电源完整性仿真教程 V1.0 目 录 1 软件介绍........................................................................................................................................ 2 2.1 功能概述 ............................................................................................................................. 2 2.2 操作界面 ............................................................................................................................. 3 2.3 常用热键 ............................................................................................................................. 4 2 仿真的前期准备 ............................................................................................................................ 5 2.1 软件的准备 ......................................................................................................................... 5 2.2 PCB 文件导入 .................................................................................................................... 5 2.2.1 Launch SIw ave 方式 ................................................................................................ 5 2.2.1 ANF+CMP 方式 ...................................................................................................... 6 2.3 PCB 的Validation Check.................................................................................................... 8 2.4 PCB 叠层结构设置 .......................................................................................................... 11 2.5 仿真参数设置 ................................................................................................................... 12 2.6 RLC 参数修正 .................................................................................................................. 13 2.6.1 RLC 的自动导入 ......................................................................................................
