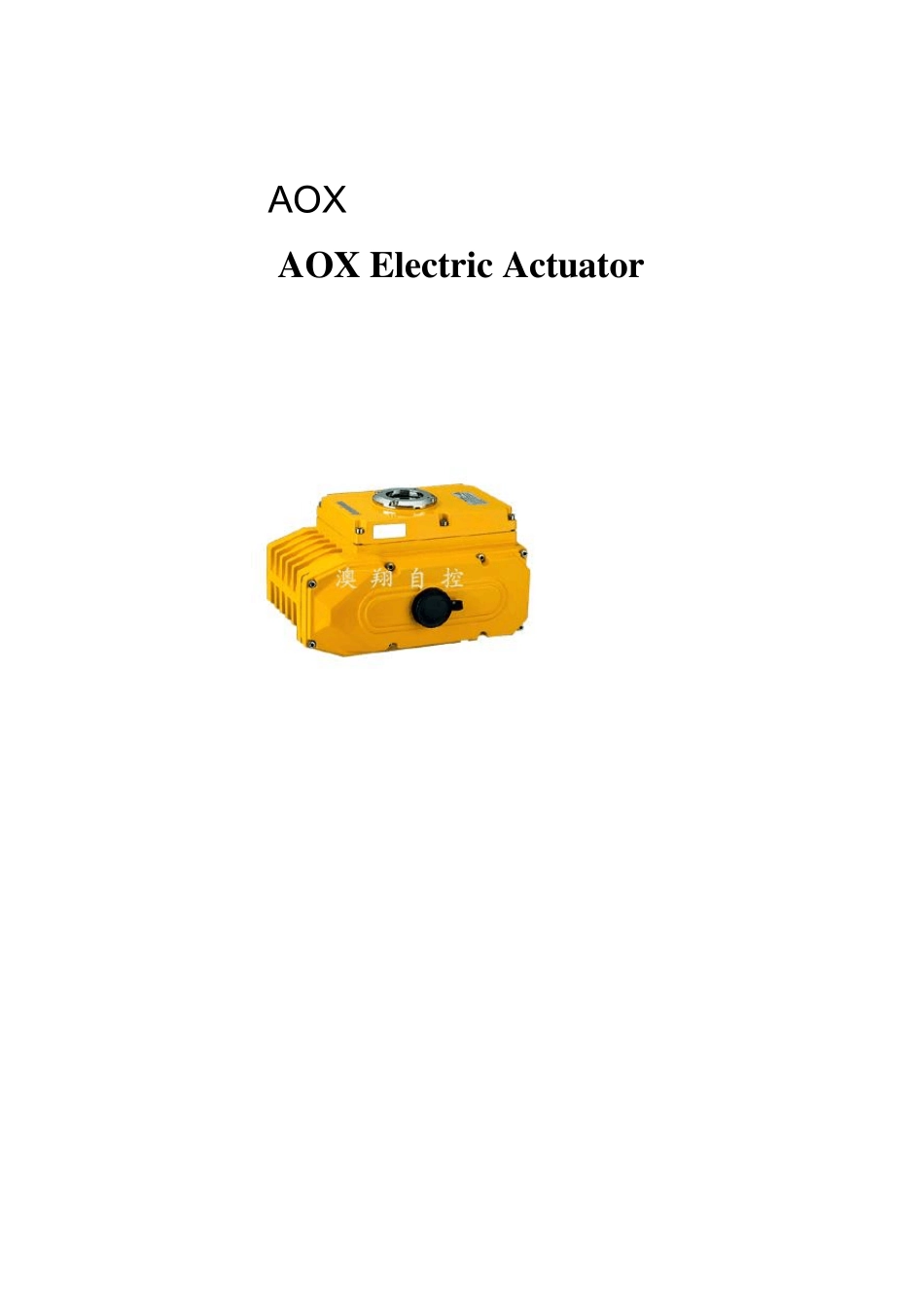

AOX系列阀门电动装置

AOX系列电动阀门装置 AOX Electric Actu ator 使用说明书 Instruction for Use 1．概述Summary “ AOX”系列电动执行器用于控制0°～270°旋转的阀门及其他同类产品，如蝶阀、球阀、风门、挡板阀、旋塞阀、百叶阀等，可以广泛应用于石油、化工、水处理、船舶、造纸、电站、供热供暖、楼宇自控、轻工等各行业中。它以380V/220V/110V 交流电源为驱动电源，以 4-20mA电流信号或0-10V DC 电压信号为控制信号，可使阀门运动到所需位置，实现其自动化控制，最大输出扭矩达4000N· m。 "AOX" series electric actuator is used for controlling 0°～ 270° rotation of the valves and other similar products, such as butterfly valve, ball valve, damper, flapper valves, cock valves, etc. It’s widely used in petroleum, chemical, water treatment, shipping, paper making, power plants, heating, light industry and other industries. It drives by 380V/220V/110V AC power. Control signal is 4-20mA current signal or 0-10V DC voltage signal, enables move the valve to the desired position, achieving its automation, maximum output torque is up to 4000N·m.. 2．性能特点Performance Features 2.1 壳体Shell 壳体为硬质铝合金，经阳极氧化处理和聚酯粉末涂层，耐腐蚀性强，防护等级为IP67，NEMA4和 6，并有IP68 型供选择。 The shell is made of horniness aluminium alloy, pass through anodic oxidation treatment and polyester powder coating, so it has strong corrosion resistance. Protection grade is IP67,NEMA 4 AND 6, and optional IP68 type. 2.2 电机Electric Machinery 全封闭式鼠笼式电机，体积小，扭矩大，惯性力小，绝缘等级为F 级，内置过热保护开关，可防止过热损坏电机。 Fully enclosed Squirrel-cage electric Machinery, small volume, large torque, and small inertia force, F-class insulation rating, inside hot protection switch, avoid damaging the electric machinery. 2.3 手动结构Manual Structure 手柄的设计保证安全可靠、省力、体积小。不通电时，扳动手柄可进行手动操作。不用手动时，将扳...
