ASTMD335909标准试验方法胶带法测量附着力

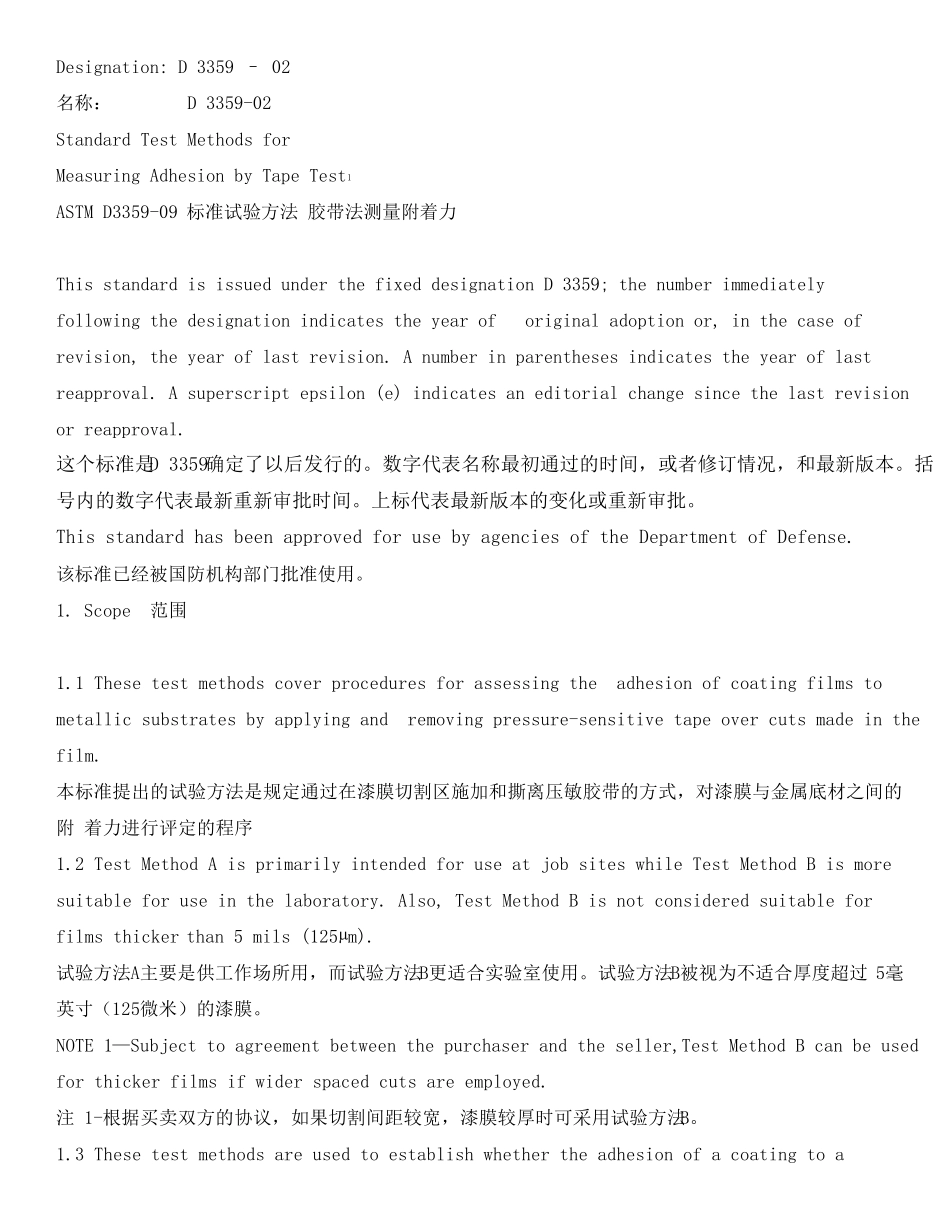

Designation: D 3359 – 02 名称： D 3359-02 Standard Test Methods for Measuring Adhesion by Tape Test1 ASTM D3359-09 标准试验方法 胶带法测量附着力 This standard is issued under the fixed designation D 3359; the number immediately following the designation indicates the year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A superscript epsilon (e) indicates an editorial change since the last revision or reapproval. 这个标准是D 3359确定了以后发行的。数字代表名称最初通过的时间，或者修订情况，和最新版本。括号内的数字代表最新重新审批时间。上标代表最新版本的变化或重新审批。 This standard has been approved for use by agencies of the Department of Defense. 该标准已经被国防机构部门批准使用。 1. Scope 范围 1.1 These test methods cover procedures for assessing the adhesion of coating films to metallic substrates by applying and removing pressure-sensitive tape over cuts made in the film. 本标准提出的试验方法是规定通过在漆膜切割区施加和撕离压敏胶带的方式，对漆膜与金属底材之间的附 着力进行评定的程序 1.2 Test Method A is primarily intended for use at job sites while Test Method B is more suitable for use in the laboratory. Also, Test Method B is not considered suitable for films thicker than 5 mils (125µm). 试验方法A主 要 是供 工 作 场 所 用，而 试验方法B更 适 合 实 验室 使用。试验方法B被视 为 不 适 合 厚 度 超 过 5毫英 寸 （ 125微 米 ） 的漆膜。 NOTE 1— Subject to agreement between the purchaser and the seller,Test Method B can be used for thicker films if wider spaced cuts are employed. 注 1-根据买卖双方的协议，如果切割间距较宽，漆膜较厚 时可采用试验方法B。 1.3 These test methods are used to establish whether the adhesion of a coating to a substrat...
