一款基于优化PSM模式的升压型LED驱动器的研究与设计的开题报告

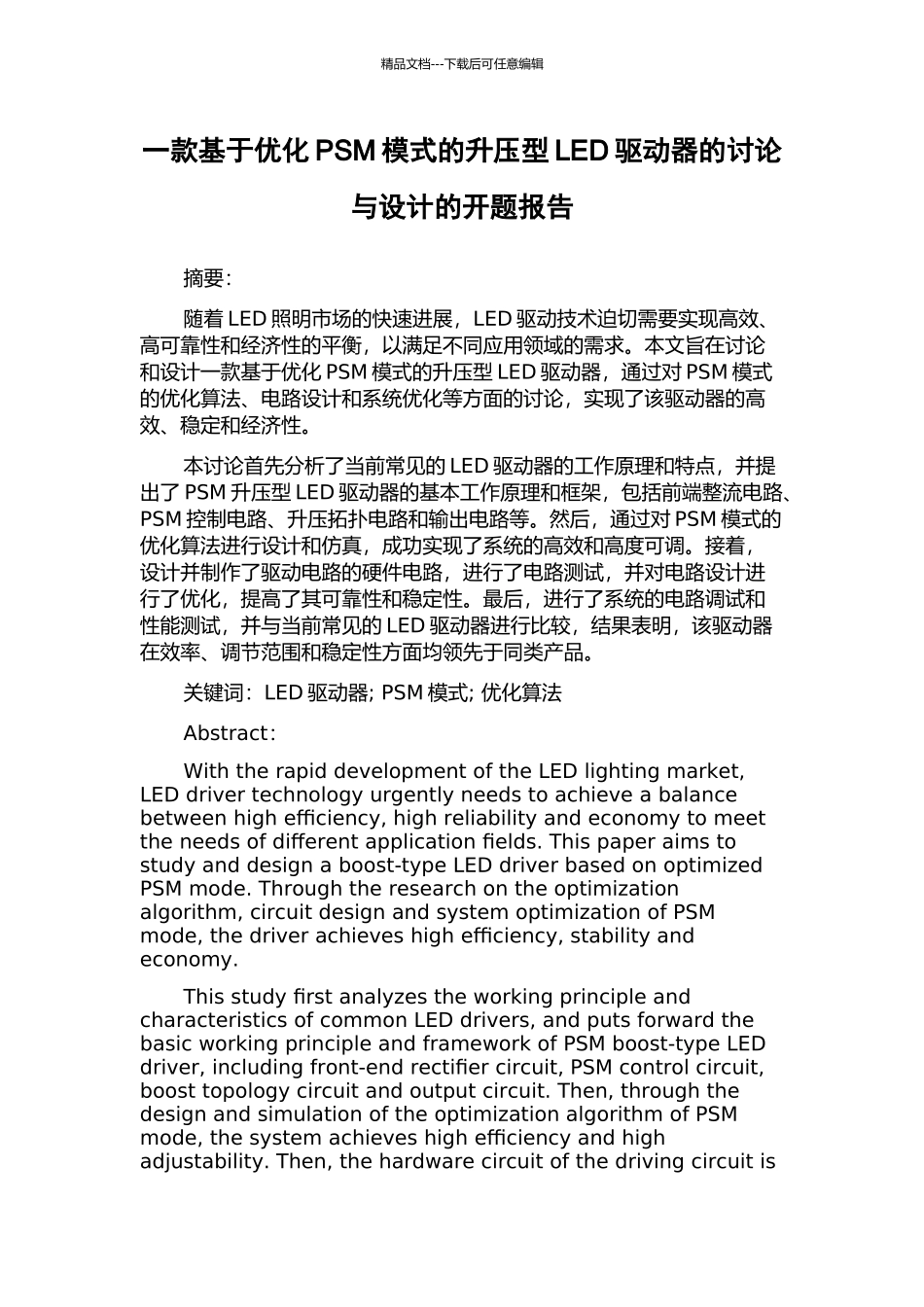

一款基于优化PSM模式的升压型LED驱动器的研究与设计的开题报告_第1页
1/2

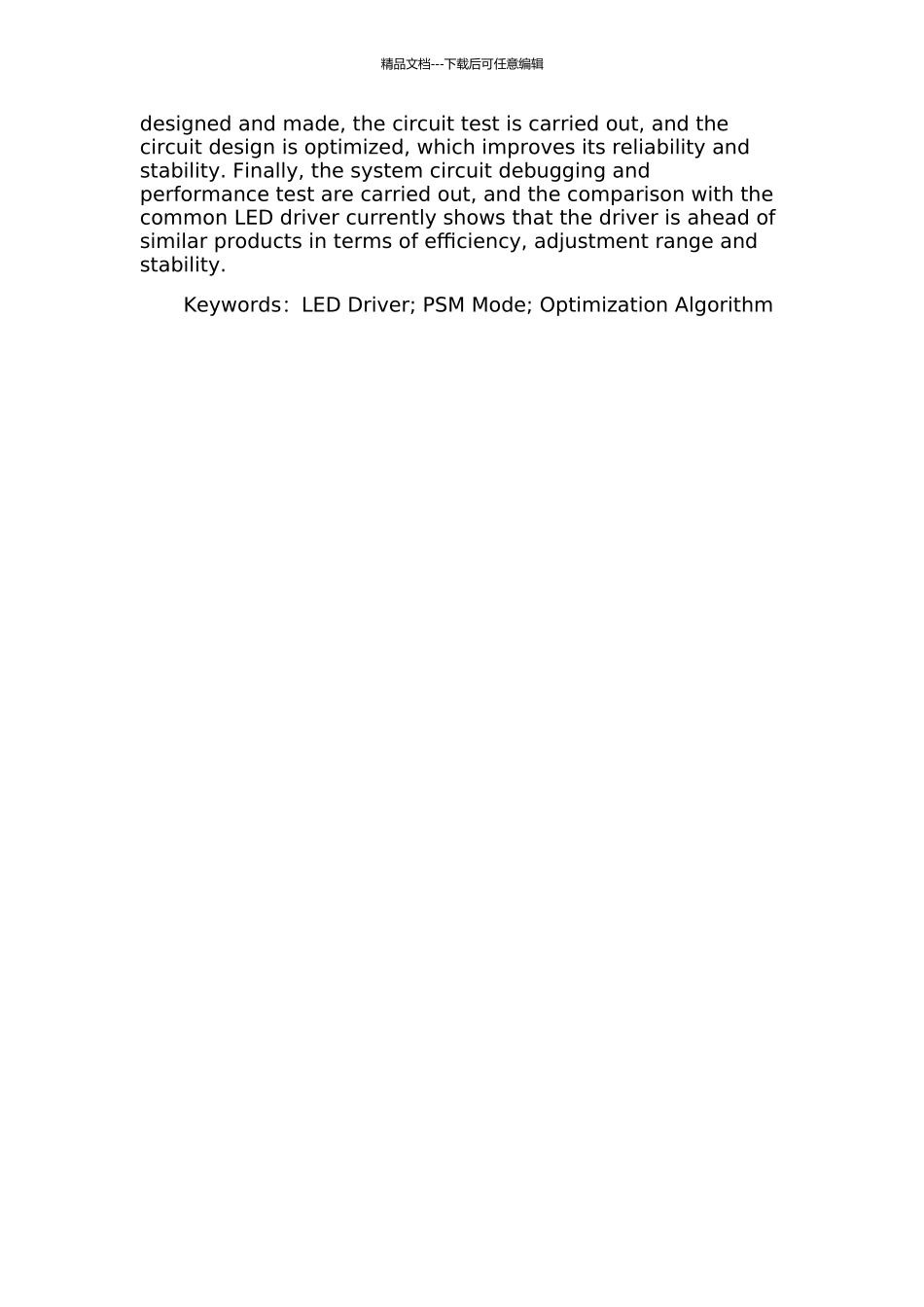

一款基于优化PSM模式的升压型LED驱动器的研究与设计的开题报告_第2页
2/2
精品文档---下载后可任意编辑一款基于优化 PSM 模式的升压型 LED 驱动器的讨论与设计的开题报告摘要:随着 LED 照明市场的快速进展,LED 驱动技术迫切需要实现高效、高可靠性和经济性的平衡,以满足不同应用领域的需求。本文旨在讨论和设计一款基于优化 PSM 模式的升压型 LED 驱动器,通过对 PSM 模式的优化算法、电路设计和系统优化等方面的讨论,实现了该驱动器的高效、稳定和经济性。本讨论首先分析了当前常见的 LED 驱动器的工作原理和特点,并提出了 PSM 升压型 LED 驱动器的基本工作原理和框架,包括前端整流电路、PSM 控制电路、升压拓扑电路和输出电路等。然后,通过对 PSM 模式的优化算法进行设计和仿真,成功实现了系统的高效和高度可调。接着,设计并制作了驱动电路的硬件电路,进行了电路测试,并对电路设计进行了优化,提高了其可靠性和稳定性。最后,进行了系统的电路调试和性能测试,并与当前常见的 LED 驱动器进行比较,结果表明,该驱动器在效率、调节范围和稳定性方面均领先于同类产品。关键词:LED 驱动器; PSM 模式; 优化算法Abstract:With the rapid development of the LED lighting market, LED driver technology urgently needs to achieve a balance between high efficiency, high reliability and economy to meet the needs of different application fields. This paper aims to study and design a boost-type LED driver based on optimized PSM mode. Through the research on the optimization algorithm, circuit design and system optimization of PSM mode, the driver achieves high efficiency, stability and economy.This study first analyzes the working principle and characteristics of common LED drivers, and puts forward the basic working principle and framework of PSM boost-type LED driver, including front-end rectifier circuit, PSM control circuit, boost topology circuit and output circuit. Then, through the design and simulation of the optimization algorithm of PSM mode, the system achieves high efficiency and high adjustability. Then, the hardware circuit of the driving circuit is 精品文档---下载后可任意编辑designed and made, the circuit test is carried out, and the circuit design is optimized, which improves its reliability and stability. Finally, the system circuit debugging and performance test are carried out, and the comparison with the common LED driver currently shows that the driver is ahead of similar products in terms of efficiency, adjustment range and stability.Keywords:LED Driver; PSM Mode; Optimization Algorithm
