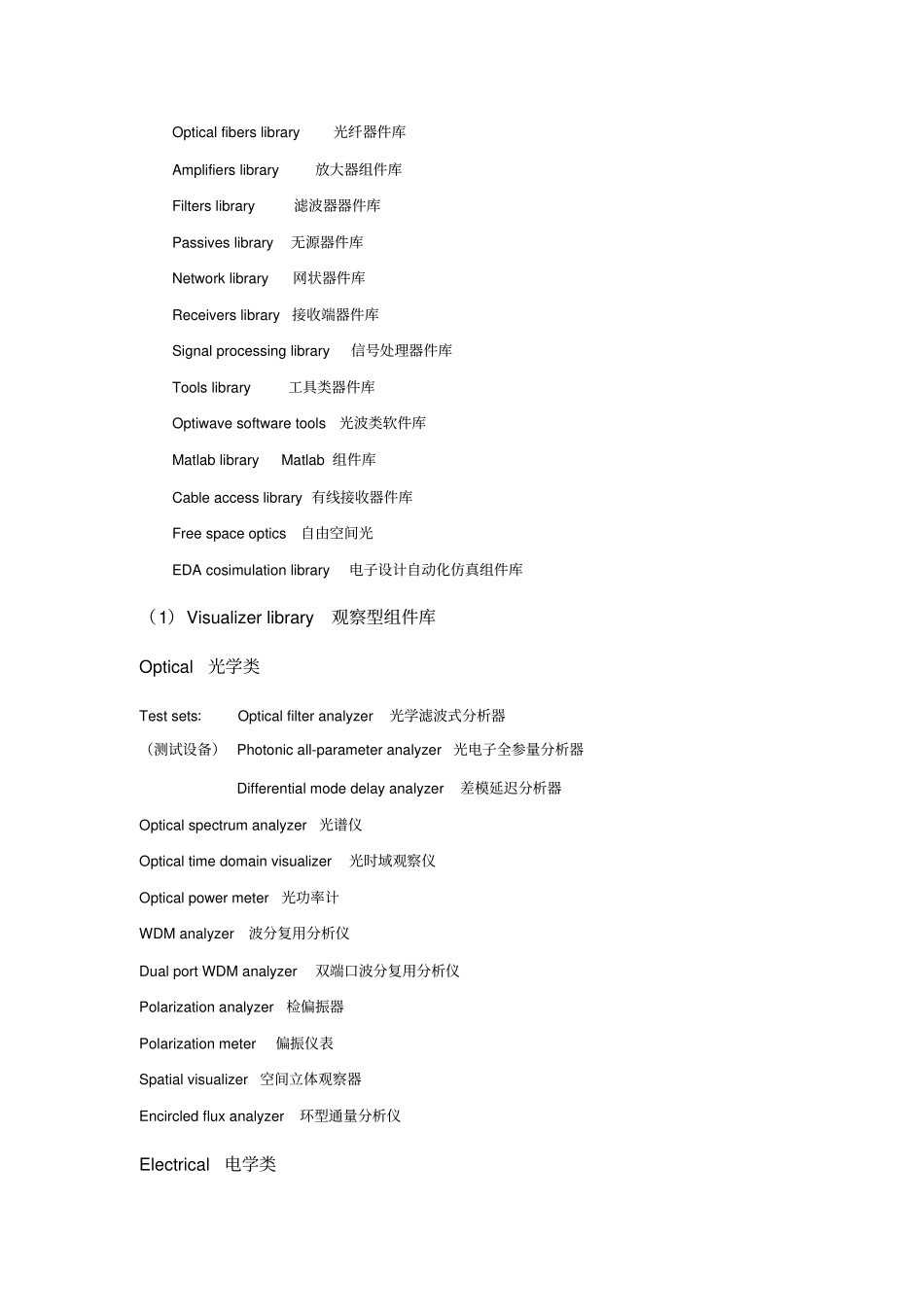

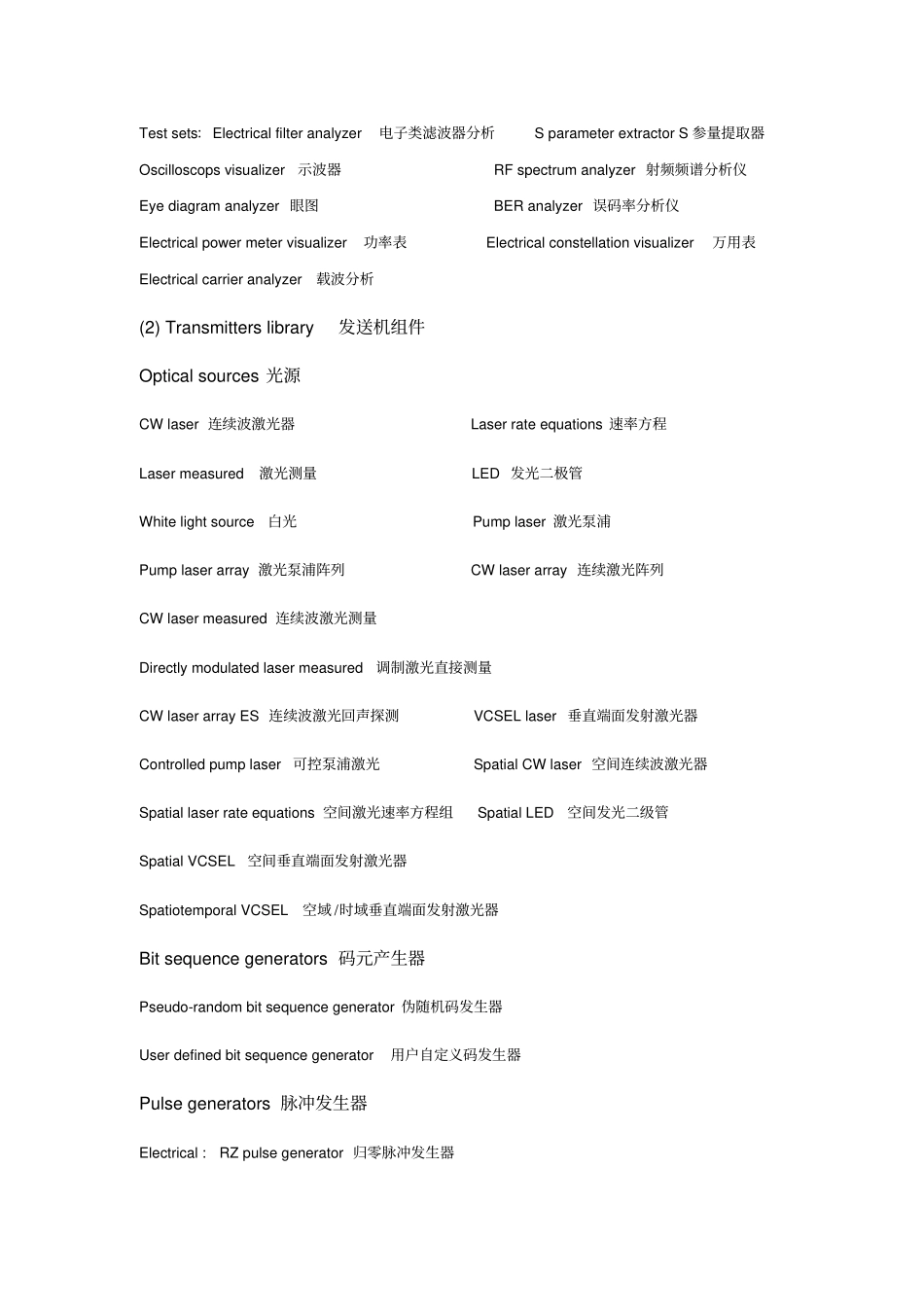

实验一OptiSystem仿真组件库介绍Componentlibrary组件库：根据optisystem7.0翻译一、default系统默认值二、custom自定义三、favorites收藏夹四、recentlyused最近使用过的一、default系统默认值Visualizerlibrary观察型组件库Transmitterslibrary发送类器件库WDMmultiplexerslibrary波分多路复用器件库Opticalfiberslibrary光纤器件库Amplifierslibrary放大器组件库Filterslibrary滤波器器件库Passiveslibrary无源器件库Networklibrary网状器件库Receiverslibrary接收端器件库Signalprocessinglibrary信号处理器件库Toolslibrary工具类器件库Optiwavesoftwaretools光波类软件库MatlablibraryMatlab组件库Cableaccesslibrary有线接收器件库Freespaceoptics自由空间光EDAcosimulationlibrary电子设计自动化仿真组件库（1）Visualizerlibrary观察型组件库Optical光学类Testsets：Opticalfilteranalyzer光学滤波式分析器（测试设备）Photonicall-parameteranalyzer光电子全参量分析器Differentialmodedelayanalyzer差模延迟分析器Opticalspectrumanalyzer光谱仪Opticaltimedomainvisualizer光时域观察仪Opticalpowermeter光功率计WDManalyzer波分复用分析仪DualportWDManalyzer双端口波分复用分析仪Polarizationanalyzer检偏振器Polarizationmeter偏振仪表Spatialvisualizer空间立体观察器Encircledfluxanalyzer环型通量分析仪Electrical电学类Testsets：Electricalfilteranalyzer电子类滤波器分析SparameterextractorS参量提取器Oscilloscopsvisualizer示波器RFspectrumanalyzer射频频谱分析仪Eyediagramanalyzer眼图BERanalyzer误码率分析仪Electricalpowermetervisualizer功率表Electricalconstellationvisualizer万用表Electricalcarrieranalyzer载波分析(2)Transmitterslibrary发送机组件Opticalsources光源CWlaser连续波激光器Laserrateequations速率方程Lasermeasured激光测量LED发光二极管Whitelightsource白光Pumplaser激光泵浦Pumplaserarray激光泵浦阵列CWlaserarray连续激光阵列CWlasermeasured连续波激光测量Directlymodulatedlasermeasured调制激光直接测量CWlaserarrayES连续波激光回声探测VCSELlaser垂直端面发射激光器Controlledpumplaser可控泵浦激光SpatialCWlaser空间连续波激光器Spatiallaserrateequations空间激光速率方程组SpatialLED空间发光二级管SpatialVCSEL空间垂直端面发射激光器SpatiotemporalVCSEL空域/时域垂直端面发射激光器Bitsequencegenerators码元产生器Pseudo-randombitsequencegenerator伪随机码发生器Userdefinedbitsequencegenerator用户自定义码发生器Pulsegenerators脉冲发生器Electrical:RZpulsegenerator归零脉冲发生器NRZpulsegenerator非归零脉冲发生器Gaussianpulsegenerator高斯脉冲发生器Hyperbolic-secantpulsegenerator双曲正割脉冲发生器Sinegenerator正弦波产生器Trianglepulsegenerator三角脉冲产生器Saw-uppulsegenerator上升锯齿波产生器Saw-downpulsegenerator下降锯齿波产生器Impulsegenerator脉冲产生器Raisedcosinepulsegenerator升余弦脉冲Sinepulsegenerator正弦脉冲Measuredpulse测量脉冲Measuredpulsesequence测量脉冲组Biasgenerator电流偏差产生器Duobinarypulsegenerator二进制脉冲产生器Electricaljitter电抖动Noisesource噪声源Predistortion预失真、预矫正M-arypulsegeneratorM进制脉冲发生器M-aryraisedcosinepulsegeneratorM进制升余弦脉冲发生器Optical:OpticalGaussianpulsegenerator高斯光脉冲产生器Opticalsechpulsegenerator双曲正割光脉冲产生器Opticalimpulsegenerator光测量脉冲发生器Measuredopticalpulse测量脉冲Measuredopticalpulsesequence测量光脉冲组TRCmeasurementdateTRC测量数据Spatialopticalgaussianpulsegenerator高斯空间光脉冲产生器Spatialopticalimpulsegenerator空间光脉冲产生器Spatialopticalsechpulsegenerator双曲正割空间光脉冲产生器Opticalmodulators光调制器Mach-zehndermodulatorM-Z调制器Electroabsorptionmodulator电吸收调制器Amplitudemodulator调幅Phasemodulator...
