UL796印刷线路板标准VIP免费

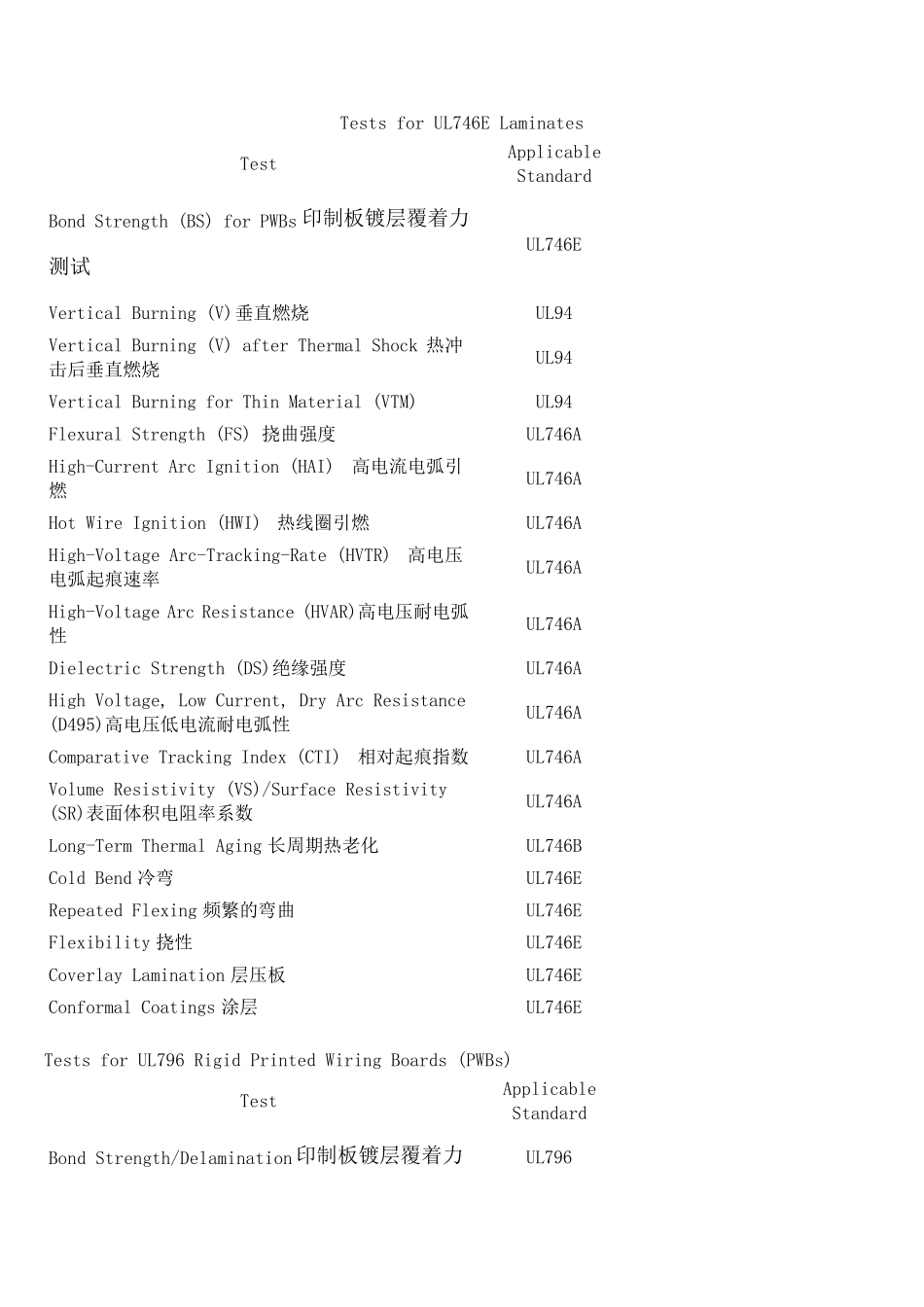

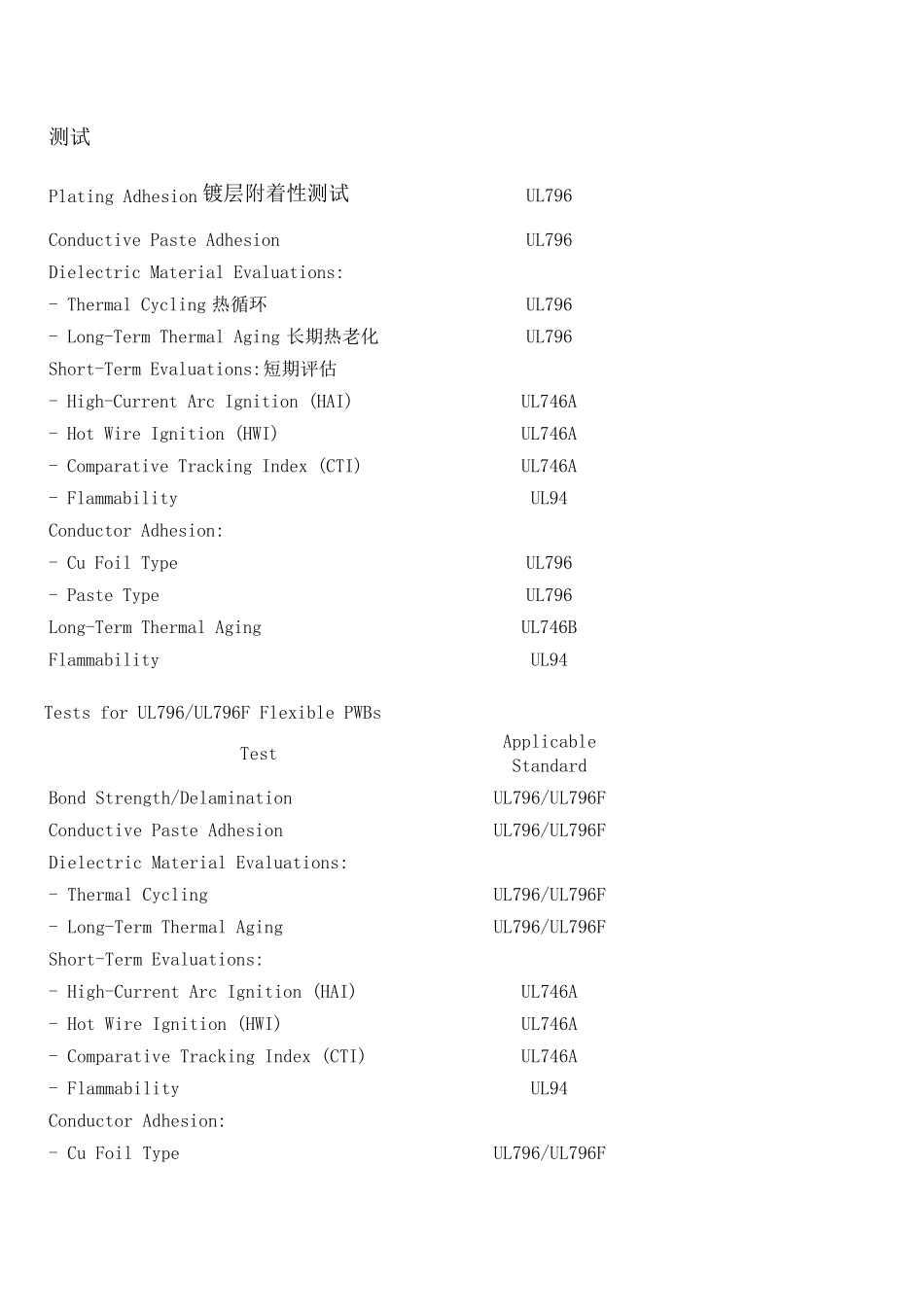

Tests for UL746E Laminates Test Applicable Standard Bond Strength (BS) for PWBs 印制板镀层覆着力测试 UL746E Vertical Burning (V)垂直燃烧 UL94 Vertical Burning (V) after Thermal Shock 热冲击后垂直燃烧 UL94 Vertical Burning for Thin Material (VTM) UL94 Flexural Strength (FS) 挠曲强度 UL746A High-Current Arc Ignition (HAI) 高电流电弧引燃 UL746A Hot Wire Ignition (HWI) 热线圈引燃 UL746A High-Voltage Arc-Tracking-Rate (HVTR) 高电压电弧起痕速率 UL746A High-Voltage Arc Resistance (HVAR)高电压耐电弧性 UL746A Dielectric Strength (DS)绝缘强度 UL746A High Voltage, Low Current, Dry Arc Resistance (D495)高电压低电流耐电弧性 UL746A Comparative Tracking Index (CTI) 相对起痕指数 UL746A Volume Resistivity (VS)/Surface Resistivity (SR)表面体积电阻率系数 UL746A Long-Term Thermal Aging 长周期热老化 UL746B Cold Bend 冷弯 UL746E Repeated Flexing 频繁的弯曲 UL746E Flexibility 挠性 UL746E Coverlay Lamination 层压板 UL746E Conformal Coatings 涂层 UL746E Tests for UL796 Rigid Printed Wiring Boards (PWBs) Test Applicable Standard Bond Strength/Delamination印制板镀层覆着力UL796 测试 Plating Adhesion 镀层附着性测试 UL796 Conductive Paste Adhesion UL796 Dielectric Material Evaluations: - Thermal Cycling 热循环 UL796 - Long-Term Thermal Aging 长期热老化 UL796 Short-Term Evaluations:短期评估 - High-Current Arc Ignition (HAI) UL746A - Hot Wire Ignition (HWI) UL746A - Comparative Tracking Index (CTI) UL746A - Flammability UL94 Conductor Adhesion: - Cu Foil Type UL796 - Paste Type UL796 Long-Term Thermal Aging UL746B Flammability UL94 Tests for UL796/UL796F Flexible PWBs Test Applicable Standard Bond Strength/Delamination UL796/UL796F Conductive Paste Adhesion UL796/UL796F Dielectric Material Evaluations: - Thermal Cycling UL796/UL796F - Long-Term Thermal Aging UL796/UL796F Short-Term Eva...
