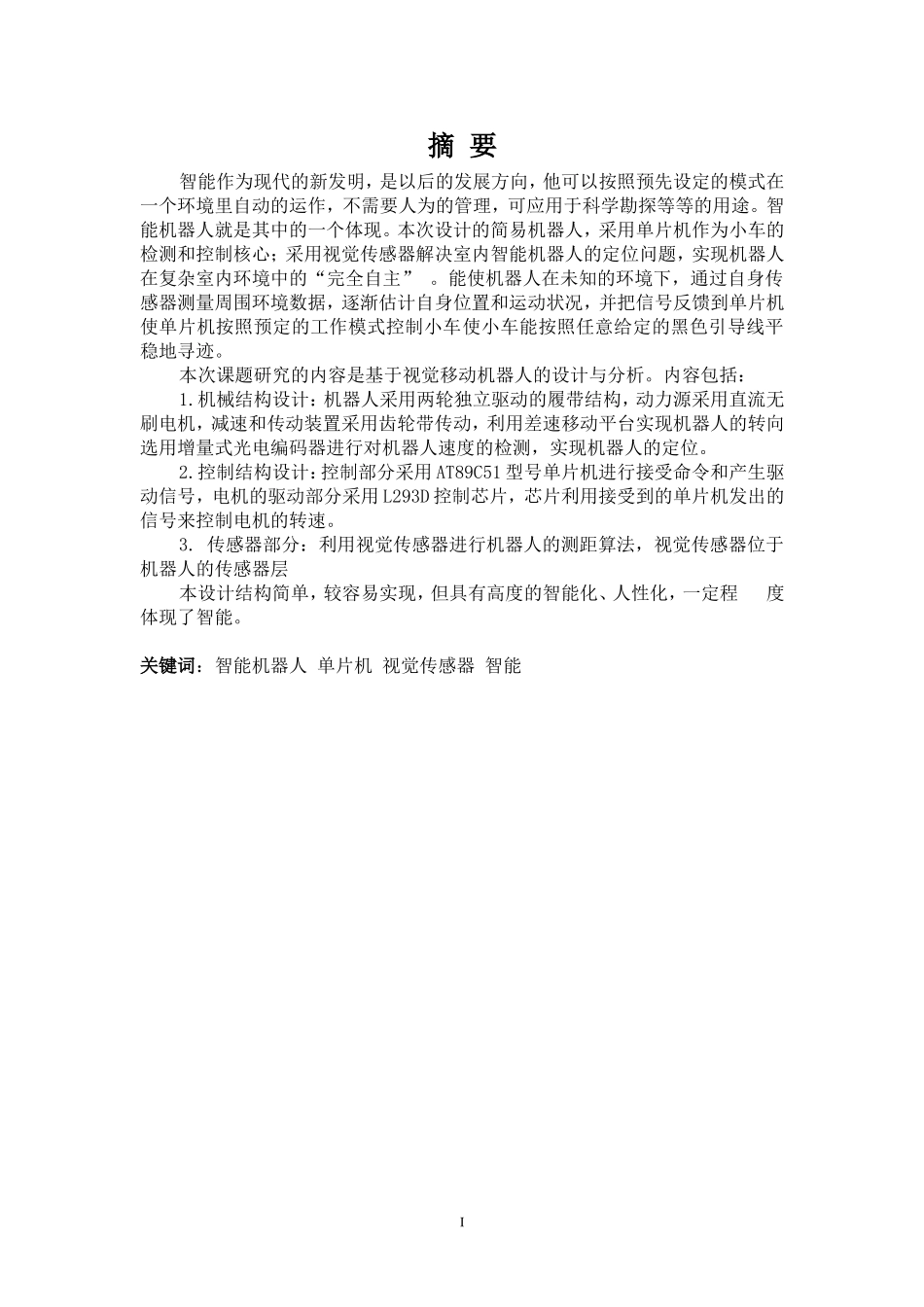

摘要智能作为现代的新发明,是以后的发展方向,他可以按照预先设定的模式在一个环境里自动的运作,不需要人为的管理,可应用于科学勘探等等的用途。智能机器人就是其中的一个体现。本次设计的简易机器人,采用单片机作为小车的检测和控制核心;采用视觉传感器解决室内智能机器人的定位问题,实现机器人在复杂室内环境中的“完全自主”。能使机器人在未知的环境下,通过自身传感器测量周围环境数据,逐渐估计自身位置和运动状况,并把信号反馈到单片机使单片机按照预定的工作模式控制小车使小车能按照任意给定的黑色引导线平稳地寻迹。本次课题研究的内容是基于视觉移动机器人的设计与分析。内容包括:1.机械结构设计:机器人采用两轮独立驱动的履带结构,动力源采用直流无刷电机,减速和传动装置采用齿轮带传动,利用差速移动平台实现机器人的转向选用增量式光电编码器进行对机器人速度的检测,实现机器人的定位。2.控制结构设计:控制部分采用AT89C51型号单片机进行接受命令和产生驱动信号,电机的驱动部分采用L293D控制芯片,芯片利用接受到的单片机发出的信号来控制电机的转速。3.传感器部分:利用视觉传感器进行机器人的测距算法,视觉传感器位于机器人的传感器层本设计结构简单,较容易实现,但具有高度的智能化、人性化,一定程度体现了智能。关键词:智能机器人单片机视觉传感器智能IAbstractIntelligenceismodernnewinvention,isdevelopmentinthehereafterdirection,hisoperationbeingabletobeautomaticaccordingtothepatternsettingupinadvancewithinaenvironment,theusenotneedingartificialmanaging,butapplyingtothescienceexplorationandsoon.Theintelligencerobotitisoneamongthemtoembody.Originallyinferiordesignsimplenessisrobotic,adoptthemonolithicmachinetobethehandcartdetectingandtocontrolcore;Adoptoptesthesiasensortoresolvetheinteriorlocalizedintelligencerobotproblem,realizesarobot"actingonself'sownininteriorhitthetargetcomplicatedenvironmentcompleteness".Andcanmakeroboticunderunknownenvironment,gradually,estimateoneselflocationandmovestatusbythefactthatoneselfsensormeasurestheenvironmentdata,couplingbackthesignalarrivesatthemonolithicmachine,makesthemonolithicmachinecanlookfortraceaccordingtogivingstableblacktheguidancelinearbitrarilystableaccordingtothatthepredeterminedjobpatterncontrolsahandcartusesahandcart.Thecontentoftheresearchisbasedonvisualdesignandanalysisofmobilerobot.Include:1.Designofmechanicalstructure:therobotdrivenbytwoindependenttrackstructure,thepowersourceusingbrushlessDCmotor,gearreducerandgearbelttransmissionbyusingdifferentialsteeringmobilerobotplatform,useincrementalphotoelectricencoderforspeeddetectionofrobots,robotpositioning.2.Designofcontrolstructure:controlpartofthemodelusingAT89C51microcontrollerforreceivingordersandgeneratedrivesignals,thedrivingpartisL293Dmotorcontrolchip,chipmicrocontrollerusingthereceivedsignalstocontrolmotorspeed.3.Sensorparts:therobotusingultrasonicsensorsfordistancemeasurementmethod,ultrasonicsensorsintherobot'ssensorlayer,usinganultrasonicdistancemeasuringringtoimprovetheaccuracyoftherobot.Designstructureissimple,easiertocometrue,buthaveanaltitude'sintellectualized,personalize,certaindegreehasembodiedintelligence.keyword:IntelligentrobotMonolithicintegratedcircuitVisualsensorintelligenceII目录摘要.............................................IAbstract.........................................II1绪论............................................11.1课题研究背景以及现实意义...........................11.2智能机器人的发展...................................22设计任务以及方案的讨论...........................62.1设计任务概述...............
