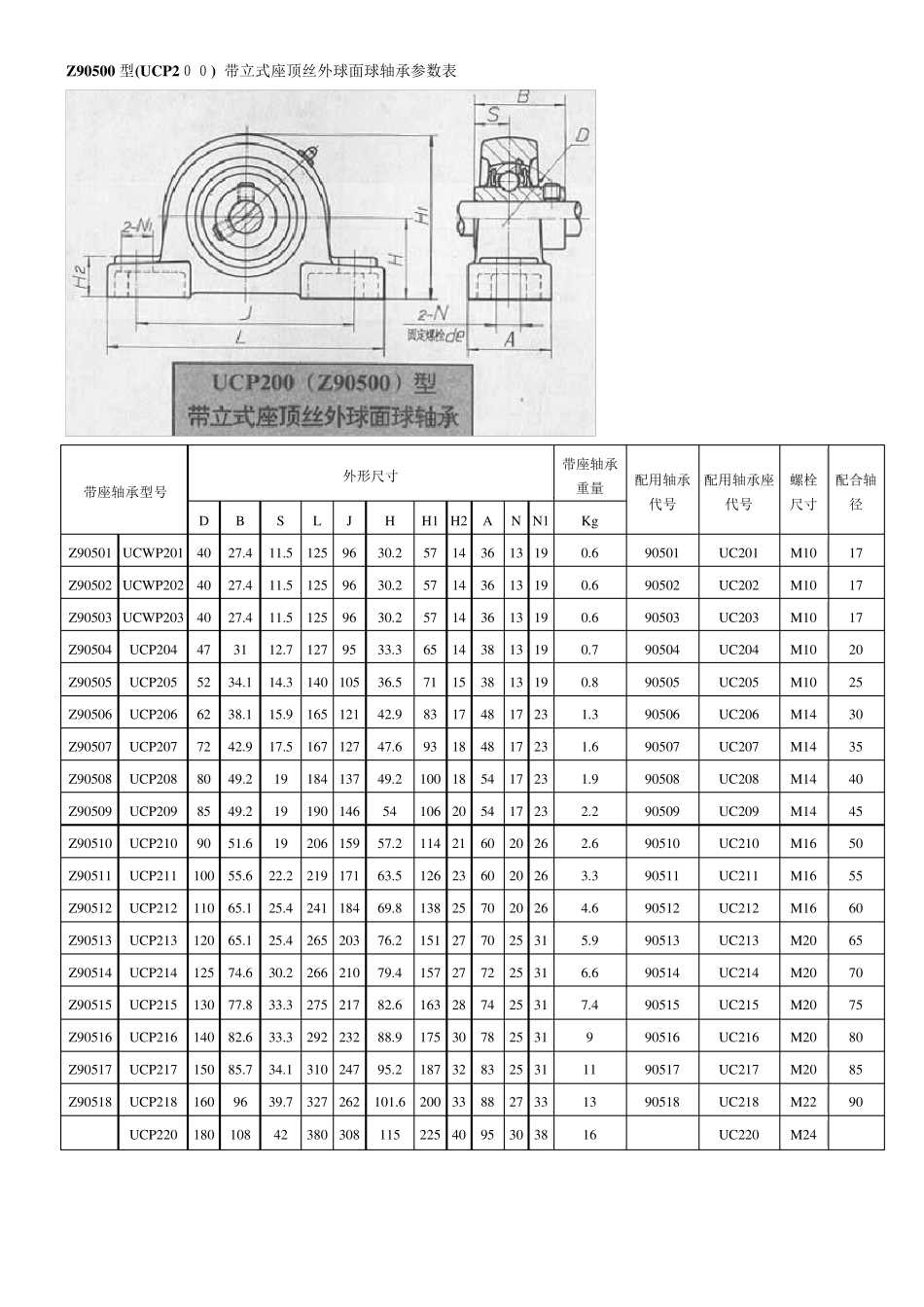

Z90500 型(UCP2００) 带立式座顶丝外球面球轴承参数表 带座轴承型号 外形尺寸 带座轴承重量 配用轴承代号 配用轴承座代号 螺栓尺寸 配合轴径 D B S L J H H1 H2 A N N1 Kg Z90501 UCWP201 40 27.4 11.5 125 96 30.2 57 14 36 13 19 0.6 90501 UC201 M10 17 Z90502 UCWP202 40 27.4 11.5 125 96 30.2 57 14 36 13 19 0.6 90502 UC202 M10 17 Z90503 UCWP203 40 27.4 11.5 125 96 30.2 57 14 36 13 19 0.6 90503 UC203 M10 17 Z90504 UCP204 47 31 12.7 127 95 33.3 65 14 38 13 19 0.7 90504 UC204 M10 20 Z90505 UCP205 52 34.1 14.3 140 105 36.5 71 15 38 13 19 0.8 90505 UC205 M10 25 Z90506 UCP206 62 38.1 15.9 165 121 42.9 83 17 48 17 23 1.3 90506 UC206 M14 30 Z90507 UCP207 72 42.9 17.5 167 127 47.6 93 18 48 17 23 1.6 90507 UC207 M14 35 Z90508 UCP208 80 49.2 19 184 137 49.2 100 18 54 17 23 1.9 90508 UC208 M14 40 Z90509 UCP209 85 49.2 19 190 146 54 106 20 54 17 23 2.2 90509 UC209 M14 45 Z90510 UCP210 90 51.6 19 206 159 57.2 114 21 60 20 26 2.6 90510 UC210 M16 50 Z90511 UCP211 100 55.6 22.2 219 171 63.5 126 23 60 20 26 3.3 90511 UC211 M16 55 Z90512 UCP212 110 65.1 25.4 241 184 69.8 138 25 70 20 26 4.6 90512 UC212 M16 60 Z90513 UCP213 120 65.1 25.4 265 203 76.2 151 27 70 25 31 5.9 90513 UC213 M20 65 Z90514 UCP214 125 74.6 30.2 266 210 79.4 157 27 72 25 31 6.6 90514 UC214 M20 70 Z90515 UCP215 130 77.8 33.3 275 217 82.6 163 28 74 25 31 7.4 90515 UC215 M20 75 Z90516 UCP216 140 82.6 33.3 292 232 88.9 175 30 78 25 31 9 90516 UC216 M20 80 Z90517 UCP217 150 85.7 34.1 310 247 95.2 187 32 83 25 31 11 90517 UC217 M20 85 Z90518 UCP218 160 96 39.7 327 262 101.6 200 33 88 27 33 13 90518 UC218 M22 90 UCP220 180 108 42 380 308 115 225 40 95 30 38 16 UC220 M24 Z90600 型...
