8055,9012,9013,9014,9015的SPICE模型数据及multisim元件制作方法

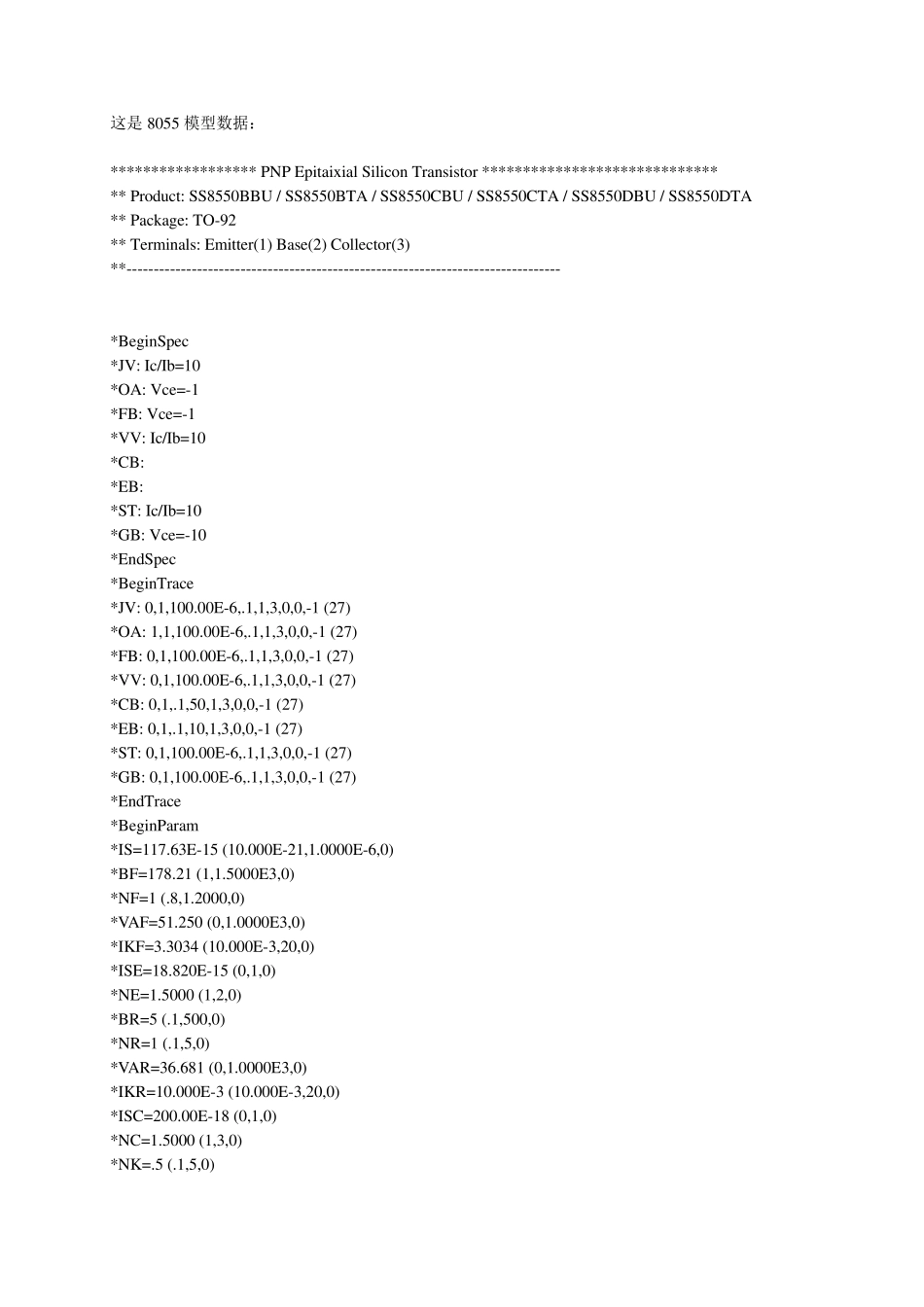

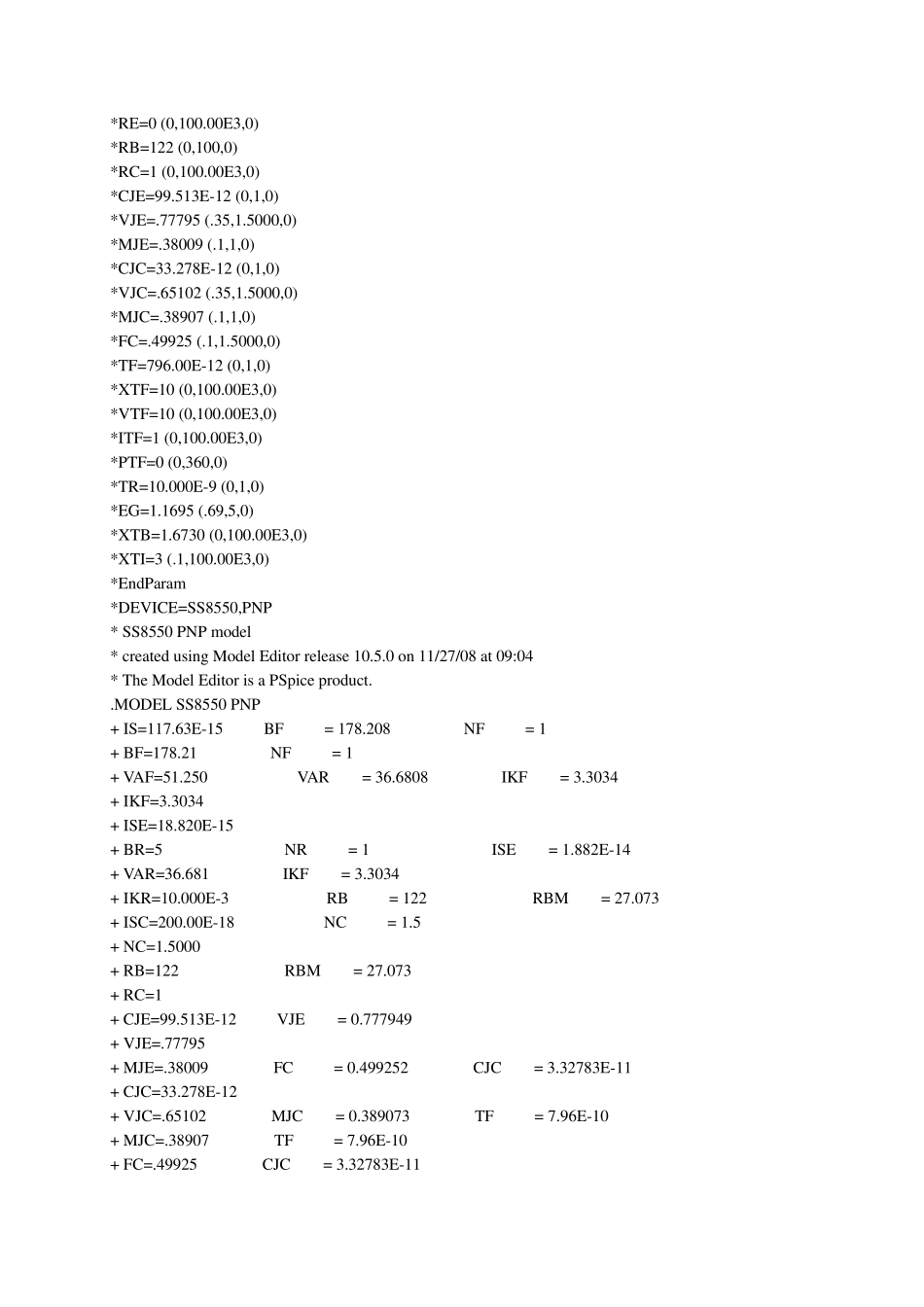

这是8055 模型数据： ****************** PNP Epitaix ial Silicon Transistor ***************************** ** Produ ct: SS8550BBU / SS8550BTA / SS8550CBU / SS8550CTA / SS8550DBU / SS8550DTA ** Package: TO-92 ** Terminals: Emitter(1) Base(2) Collector(3) **-------------------------------------------------------------------------------- *BeginSpec *JV: Ic/Ib=10 *OA: Vce=-1 *FB: Vce=-1 *VV: Ic/Ib=10 *CB: *EB: *ST: Ic/Ib=10 *GB: Vce=-10 *EndSpec *BeginTrace *JV: 0,1,100.00E-6,.1,1,3,0,0,-1 (27) *OA: 1,1,100.00E-6,.1,1,3,0,0,-1 (27) *FB: 0,1,100.00E-6,.1,1,3,0,0,-1 (27) *VV: 0,1,100.00E-6,.1,1,3,0,0,-1 (27) *CB: 0,1,.1,50,1,3,0,0,-1 (27) *EB: 0,1,.1,10,1,3,0,0,-1 (27) *ST: 0,1,100.00E-6,.1,1,3,0,0,-1 (27) *GB: 0,1,100.00E-6,.1,1,3,0,0,-1 (27) *EndTrace *BeginParam *IS=117.63E-15 (10.000E-21,1.0000E-6,0) *BF=178.21 (1,1.5000E3,0) *NF=1 (.8,1.2000,0) *VAF=51.250 (0,1.0000E3,0) *IKF=3.3034 (10.000E-3,20,0) *ISE=18.820E-15 (0,1,0) *NE=1.5000 (1,2,0) *BR=5 (.1,500,0) *NR=1 (.1,5,0) *VAR=36.681 (0,1.0000E3,0) *IKR=10.000E-3 (10.000E-3,20,0) *ISC=200.00E-18 (0,1,0) *NC=1.5000 (1,3,0) *NK=.5 (.1,5,0) *RE=0 (0,100.00E3,0) *RB=122 (0,100,0) *RC=1 (0,100.00E3,0) *CJE=99.513E-12 (0,1,0) *VJE=.77795 (.35,1.5000,0) *MJE=.38009 (.1,1,0) *CJC=33.278E-12 (0,1,0) *VJC=.65102 (.35,1.5000,0) *MJC=.38907 (.1,1,0) *FC=.49925 (.1,1.5000,0) *TF=796.00E-12 (0,1,0) *XTF=10 (0,100.00E3,0) *VTF=10 (0,100.00E3,0) *ITF=1 (0,100.00E3,0) *PTF=0 (0,360,0) *TR=10.000E-9 (0,1,0) *EG=1.1695 (.69,5,0) *XTB=1.6730 (0,100.00E3,0) *XTI=3 (.1,100.00E3,0) *EndParam *DEVICE=SS8550,PNP * SS8550 PNP model * created u sing Model Editor release 10.5.0 on 11/27/08 at 09:04 * The Model Editor is a PSpice produ ct. .MODEL SS8550 PNP + IS=117.63E-15 BF = 178.208 NF = 1 + BF=178.21 NF = 1 + VAF=51.250 VAR = 36.6808 IKF = 3.3034 + IK...
