数字密码锁设计说明

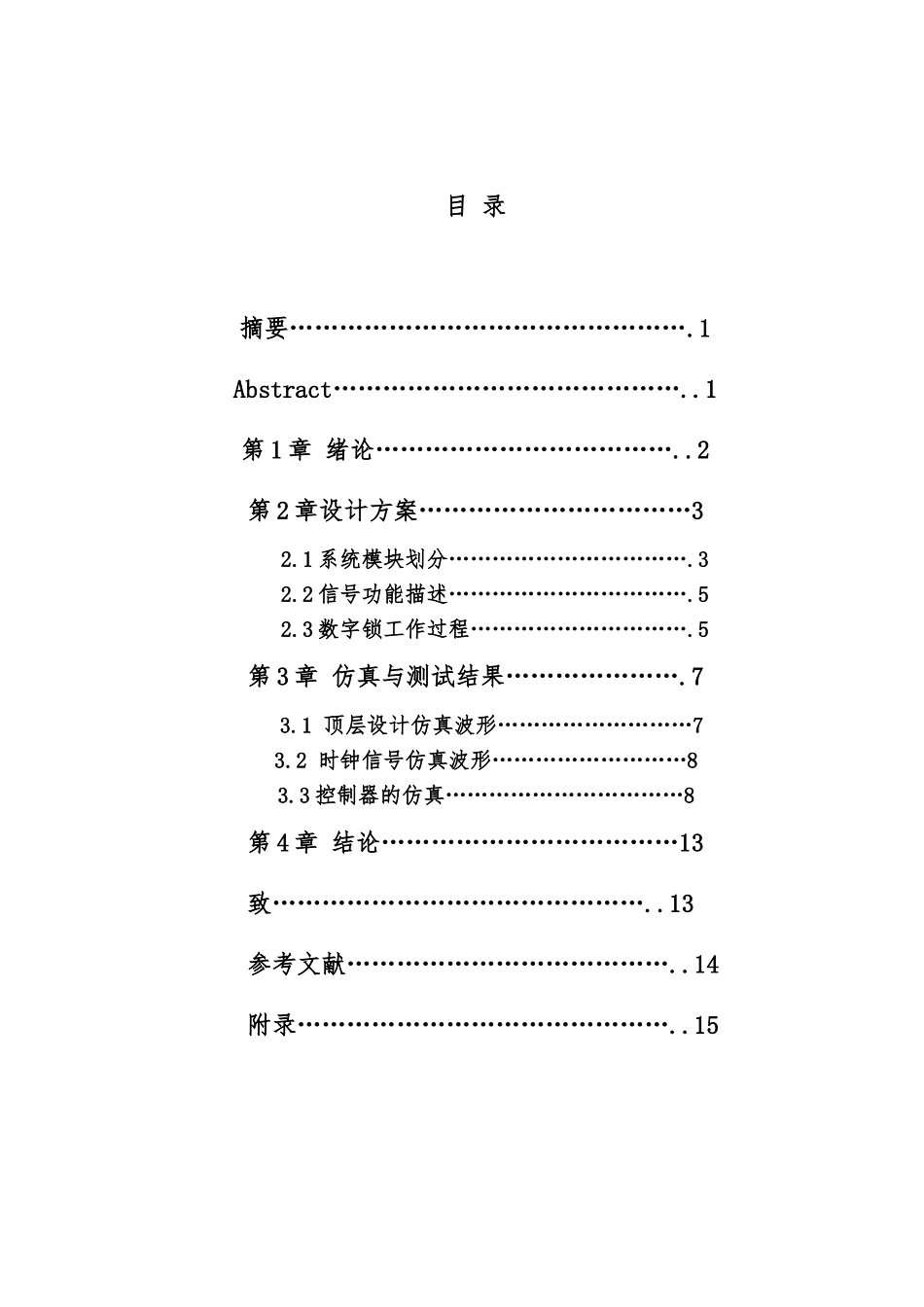

目 录摘要………………………………………….1Abstract……………………………………..1第 1 章 绪论………………………………..2第 2 章设计方案……………………………32.1 系统模块划分…………………………….32.2 信号功能描述…………………………….52.3 数字锁工作过程………………………….5第 3 章 仿真与测试结果………………….7 3.1 顶层设计仿真波形………………………7 3.2 时钟信号仿真波形………………………8 3.3 控制器的仿真……………………………8第 4 章 结论………………………………13致………………………………………..13参考文献…………………………………..14附录………………………………………..15摘 要 电子产品的应用给人们的生活带来了方便和快捷。与传统锁相比，数字锁作为一种电子产品在当今社会生活中显出了更大的优越性。同时，EDA 技术的进展使得电子产品的在实现上有了突破。一个可编程逻辑器件芯片可以实现很多功能，既减少了资源又提高了可靠性。本文通过对数字密码锁的功能分析划分了数字密码锁的结构模块，并用 VHDL 语言对各模块进行硬件描述，画出系统原理图。我们对原理图和程序文件进行了计算机仿真，得到了符合要求的结果。在输入密码正确时，开锁并且绿灯亮；输入密码不正确时，红灯亮并发出警报。关键字：FPGA；CPLD；可编程逻辑器件；数字密码锁AbstractThe application of electronics products brings great convenience to our life. As a electronics product, digital encrypted lock has more advantages over traditional lock in our daily use. Meanwhile, the development of EDA technology takes a breakthrough to the performance of electronicsproducts, which saves the resources and enhances the reliability. In this paper, through analysis of the digital encrypted lock’s function, we divided the whole system into several modules. Then, we described each module by VHDL (Very High-Speed Integrated Circuit Hardware Description Language) and drew the graphic files. We simulated the files and finally got the results. When you input correctcodes, the door opens and the light is green. When ...
