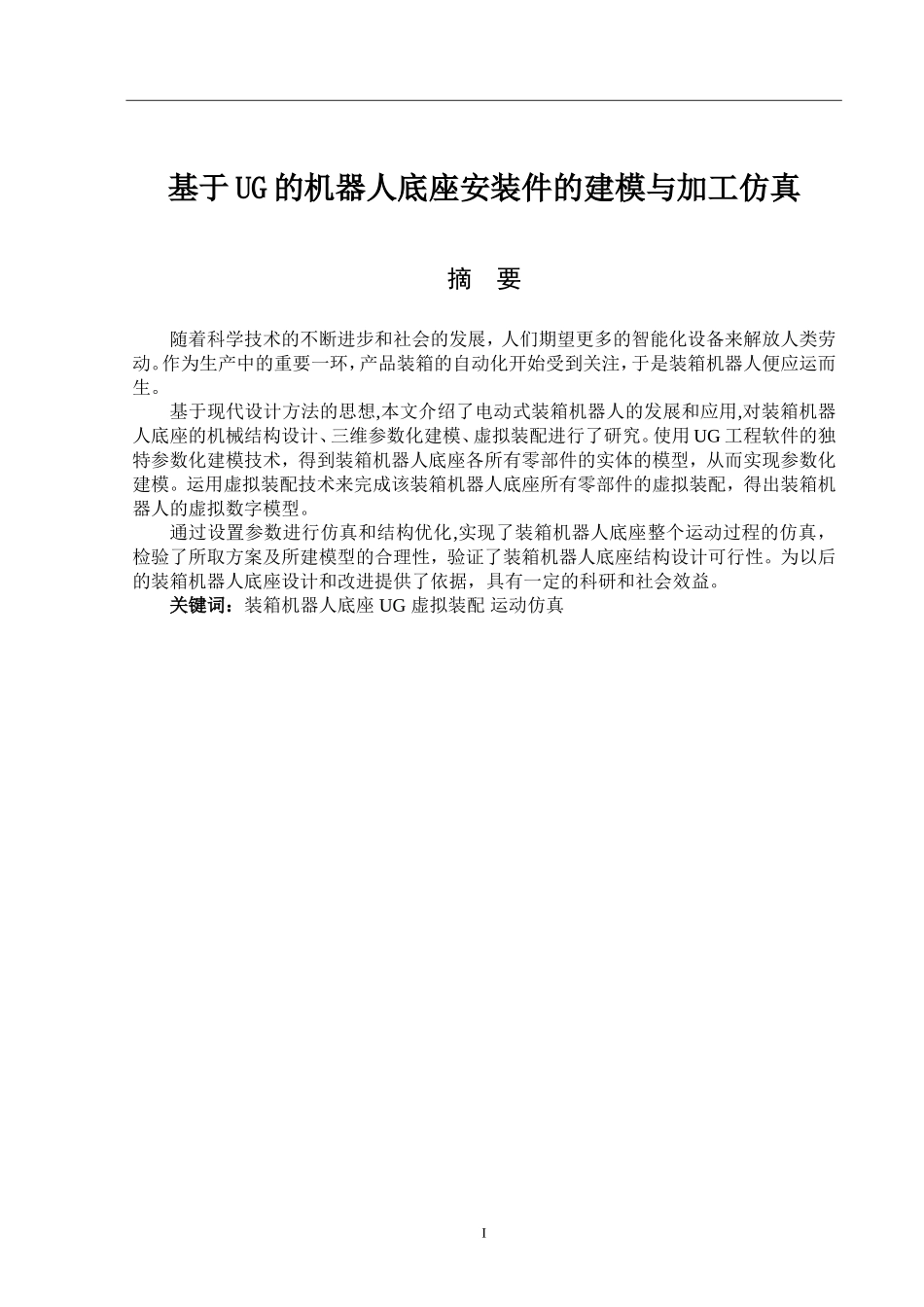

I基于 UG 的机器人底座安装件的建模与加工仿真摘 要随着科学技术的不断进步和社会的发展，人们期望更多的智能化设备来解放人类劳动。作为生产中的重要一环，产品装箱的自动化开始受到关注，于是装箱机器人便应运而生。基于现代设计方法的思想,本文介绍了电动式装箱机器人的发展和应用,对装箱机器人底座的机械结构设计、三维参数化建模、虚拟装配进行了研究。使用 UG 工程软件的独特参数化建模技术，得到装箱机器人底座各所有零部件的实体的模型，从而实现参数化建模。运用虚拟装配技术来完成该装箱机器人底座所有零部件的虚拟装配，得出装箱机器人的虚拟数字模型。通过设置参数进行仿真和结构优化,实现了装箱机器人底座整个运动过程的仿真，检验了所取方案及所建模型的合理性，验证了装箱机器人底座结构设计可行性。为以后的装箱机器人底座设计和改进提供了依据，具有一定的科研和社会效益。关键词：装箱机器人底座 UG 虚拟装配 运动仿真IIABSTRACTWith the constant progress of science and technology and the development of the society,people expect more intelligent equipment instead of manual labor.As an important link in production,product packing automation has began to be concerned.Therefore,the loading robots appeared.According to the idea of modern design,this paper introduces the development and applications of electrical type loading robots,the structure of the machine is designed,three dimensional parameter modeling,virtual assembly and simulation of kinematics and dynamics are also studied in this paper.3D solid models of exchanging worktable dispenser’s parts are established by software UG,And parameter modeling is also achieved.Virtual assembly technology is used and the integral virtual assembly model of the dispenser is gained.Setting the function parameters to do dynamic simulation as well as structural optimization,and realizes the loading robots' motion simulation of the entire movement, examined the scheme and the rationality of the model and verified the feasibility o...
